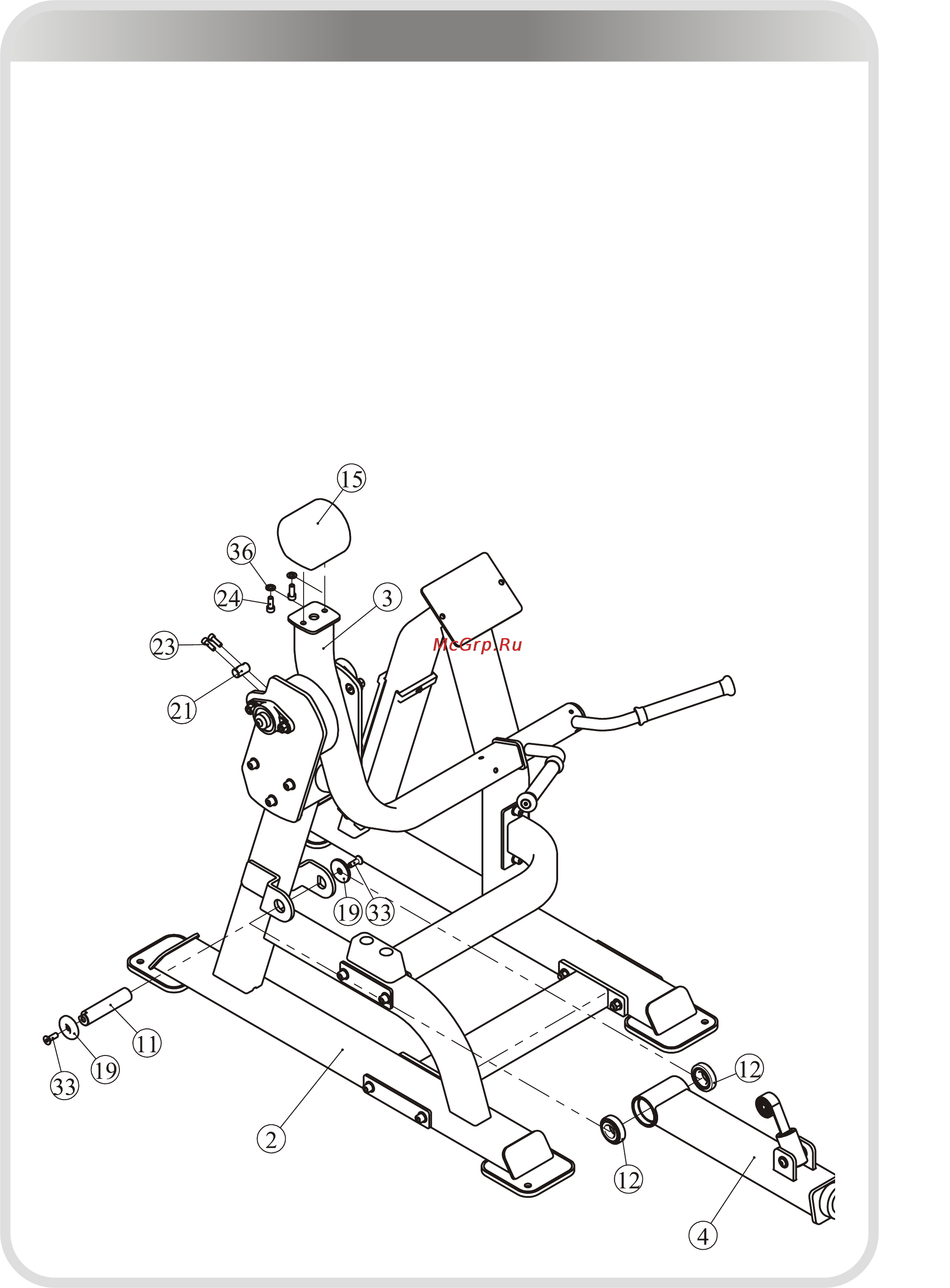

1. Attach WET Arm Assembly (#4) to Right Frame Assembly (#2), using:

● one Φ30 Pivot Shaft (#11)

● two Tapered Roller Bearing (#12)

● two Φ54 Domed Aluminium Cap (#19)

● two M12*30 FHCS (#33)

2. Attach Belt to Arm Assembly (#3), using:

● one Short Shaft (#21)

● two M8*25 SHCS (#23)

3. Attach Counter Balance Weight (#15) to Arm Assembly (#3), using:

● two M10*25 SHCS (#24)

● two Φ11*Φ20*2 Flat Washers (#36)

Note: Adjusted and Wrench Tighten Bolts and Nylon Lock Nuts.
