ASSEMBLY INSTRUCTIONS

CPD800.1-092008

(C1)3/8" ROUDN END CAP WASHER QTY.4

(B1)NYLON LOCK NUT M8 QTY.2

(B2)NYLON LOCK NUT M10 QTY.4

(C2)M8 SPRING WASHER QTY.8

(C3)M8(I.D.)FLAT WASHER Ø18X1.5T QTY.4

(C4)M8(I.D.)FLAT WASHER Ø24X1.5T QTY.8

(C5)M10(I.D.)FLAT WASHER Ø27X2T QTY.4

(C6)1/2" BOLT CAP(9212-024) QTY.4

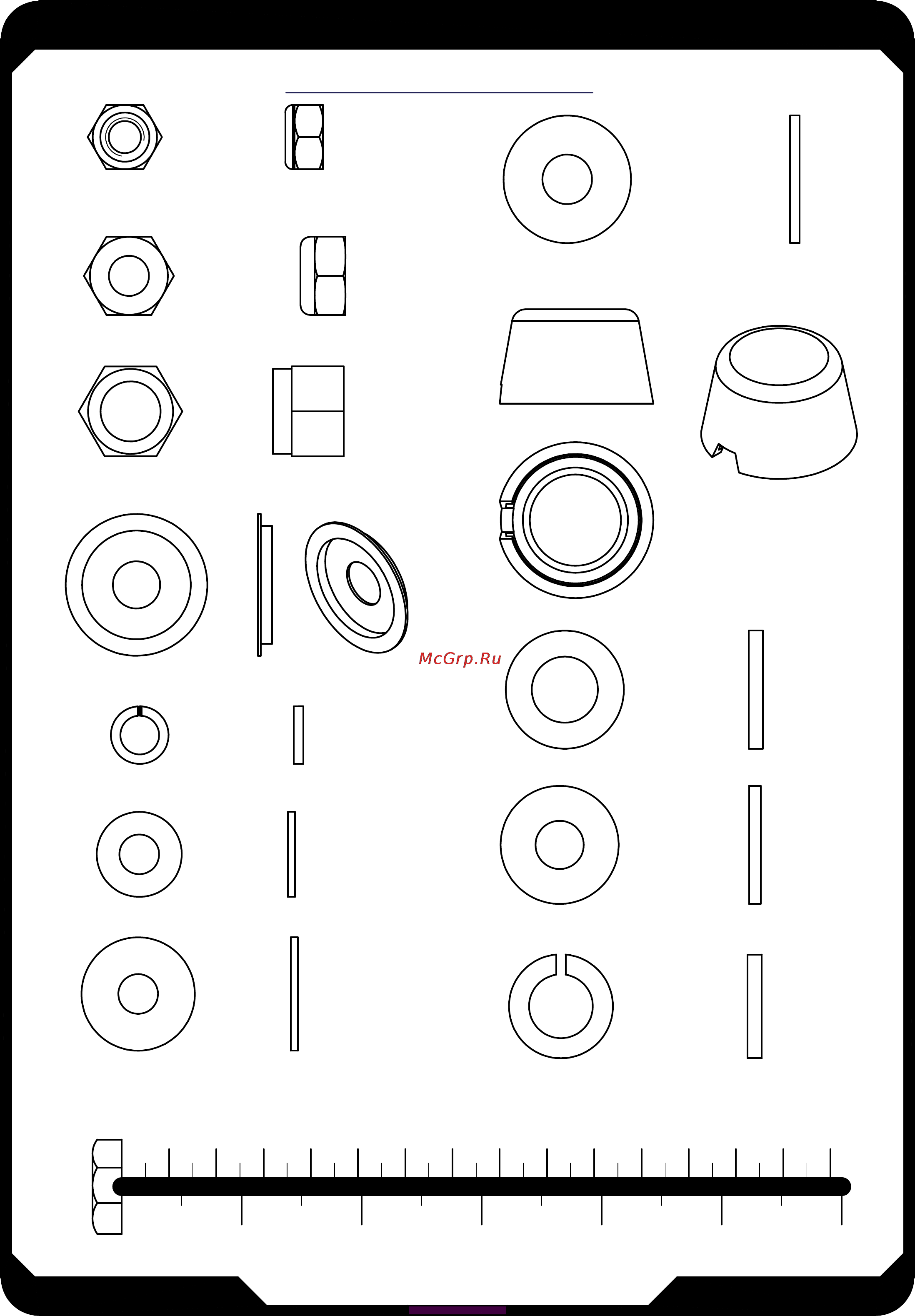

HARDWARE ILLUSTRATION

(B4)NYLON LOCK NUT 1/2" QTY.2

(C7)1/2"(I.D.)FLAT WASHER Ø25X3T QTY.2

(C8)M10(I.D.)FLAT WASHER Ø25X2T QTY.1

(C9)1/2" SPRING WASHER QTY.2
