10 EN

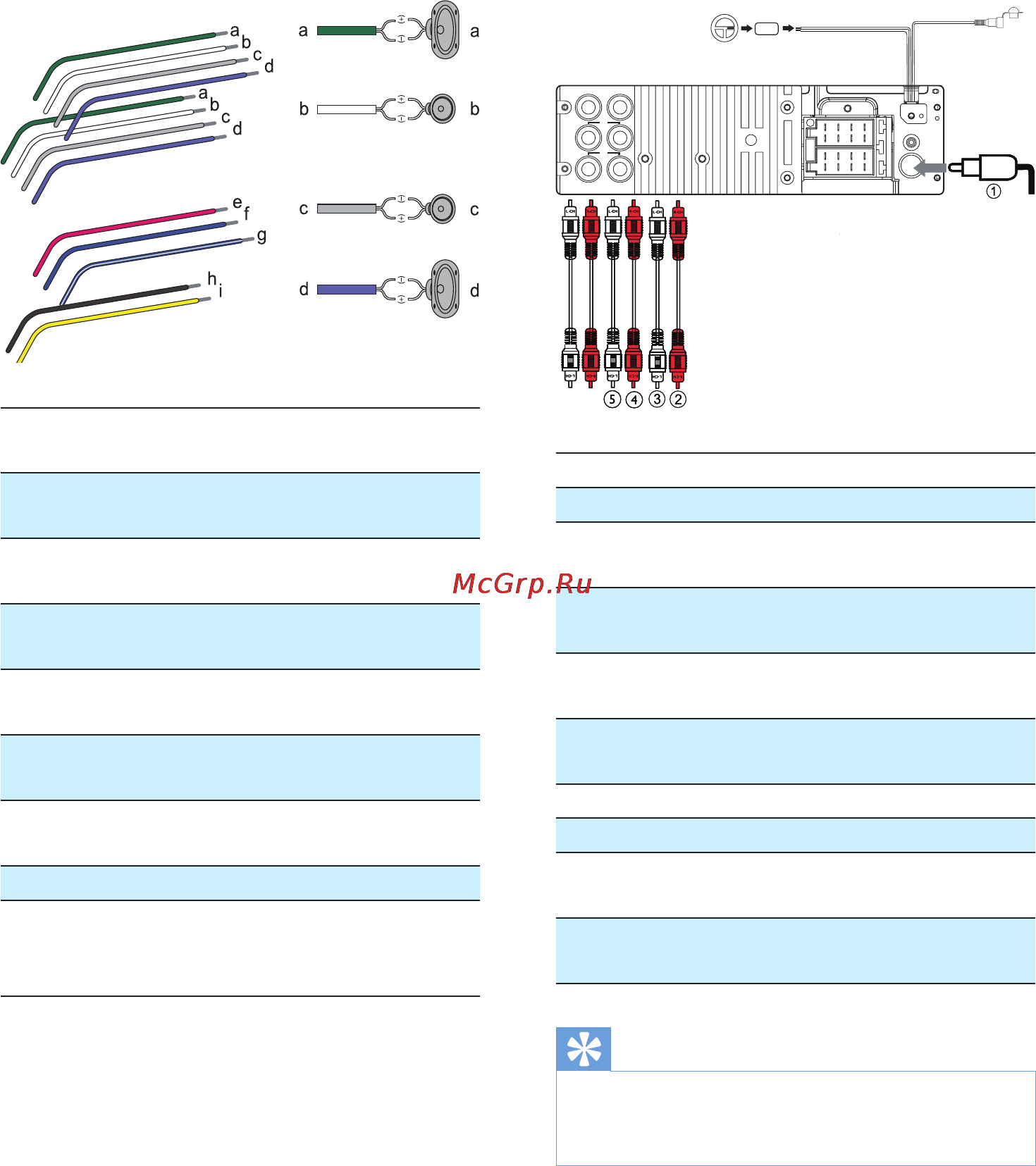

1 Green/black
strip
Left speaker (Rear)
2 White/black
strip
Left speaker (Front)
3 Gray/black
strip
Right speaker (Front)
4 Purple/black
strip
Right speaker (Rear)
e Red Ignition key +12V DC when
ON/ACC
f Blue Motor/electric antenna relay
control lead
g White-edged
blue strip
Amplier relay control lead
h Black Ground
i Yellow To the +12V car battery
which is energized at all
times
3 Connect the antenna and amplier as
illustrated, if applicable.
Connector Connectto
1 ANTENNA Antenna
2 FRONT LINE OUT R
(Socket)
Frontright
speaker
3 FRONT LINE OUT L
(Socket)
Frontleft
speaker
4 REAR LINE OUT R
(Socket)
Rearright
speaker
5 REAR LINE OUT L
(Socket)
Rearleftspeaker
6 OE REMOTE (Purple) OERemote
7 SUBWOOFER (Blue) Subwoofer
8 REAR AUX LINE OUT
R
RearAuxright
9 REAR AUX LINE
OUT L
RearAuxleft
Tip
• The pin arrangement for the ISO connectors depends
on the type of vehicle you drive. Be sure to make
proper connections to prevent damage to the unit.
f
g
h
REAR
FRONT
R
L
REAR AUX
LR
i
