Configure the settings relating to image quality, extra zoom and
the privacy zone [Image/Privacy]

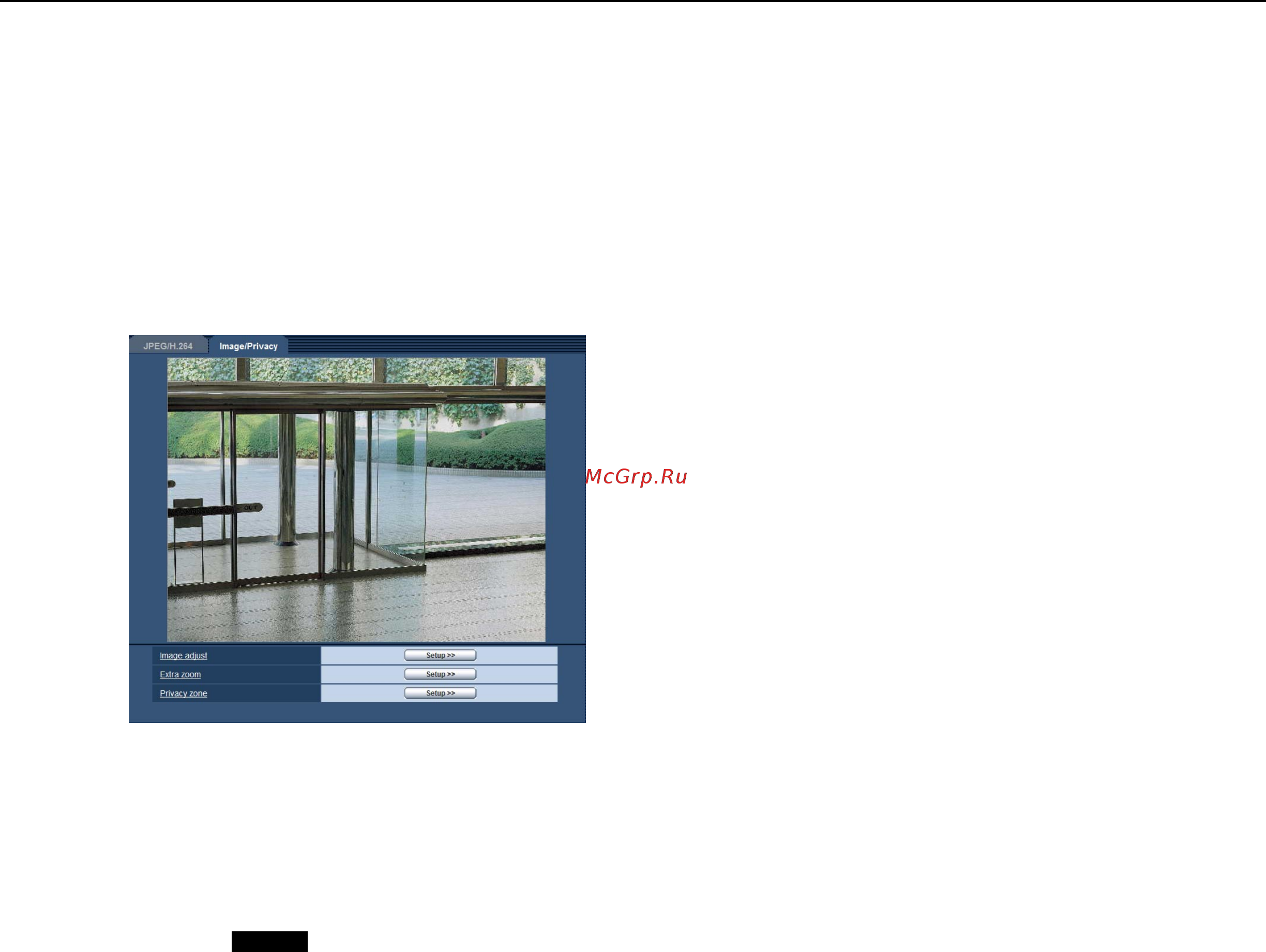

Click the [Image/Privacy] tab on the "Image" page. (☞Pages13and14:Howtodisplay/operatethesetupmenu)
When the [Setup >>] button of each setting item is clicked, the detailed settings menu will be displayed in a newly
opened window. The detailed settings can be configured while monitoring images displayed on the [Image/Privacy]
tab.
The following are descriptions of how to configure the settings relating to image quality, extra zoom and privacy
zone.
[Image adjust]
Click the [Setup >>] button to display the setup menu
that can configure the settings relating to image quality.
The setup menu will be displayed in a newly opened
window. (☞ Page 24)
[Extra zoom]
SP105
Click the [Setup >>] button to display the setup menu
that can configure the settings relating to extra zoom.
The setup menu will be displayed in a newly opened
window. (☞ Page 28)
[Privacy zone]
Click the [Setup >>] button to display the setup menu
that can configure the settings relating to privacy zone.
(☞ Page 29)
