13
Pin No.
1
Dump
2
Dump
3
Drive
4
Drive
ALC lens connector
1 3
2 4
Screws (locally
procured)
Screws (locally
procured)

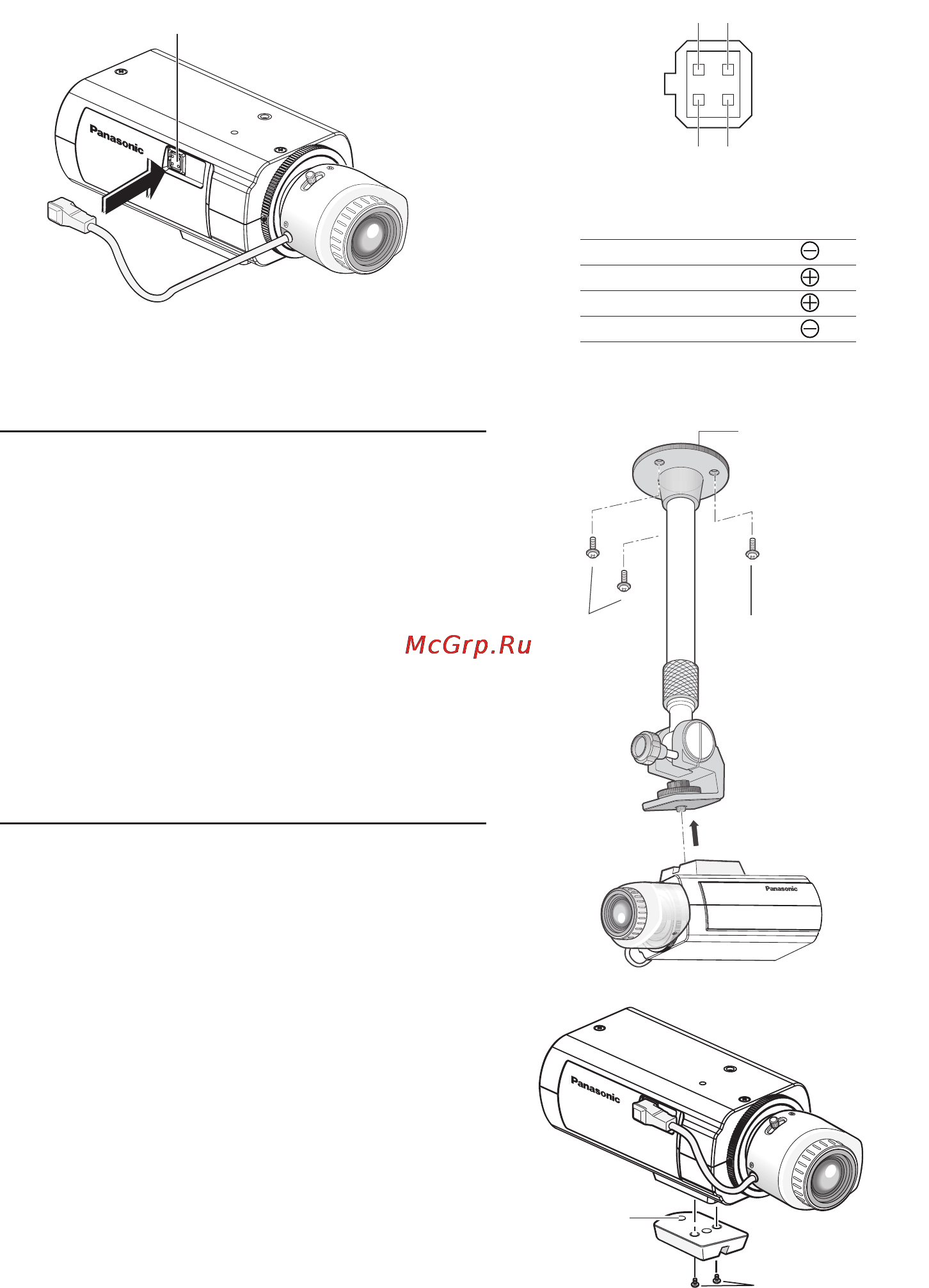

<Installation sample on a ceiling>
Camera mount
bracket (option)
2 Connect the lens cable to the ALC lens connector of the camera.
3 Secure the camera mount bracket (option)
to an installation position, and mount the
camera on the camera mount bracket.
Important:
• The camera mount bracket shall be mounted
on the foundation part of the construction or a
part with adequate strength.
• Recommended screw M6, minimum pull-out
strength196 N.
• The other security measures to prevent
dropping also must be considered when
the total weight of camera and its lens is
above 1 kg in addition to the fall protection
measure functioned by coaxial cable,
in order to strengthen the fall protection
countermeasure. (The fall protection measure
can be functioned through the coaxial cable
when the total weight is below 1 kg.)
Orificio roscado
para trípode:
1/4-20 UNC
para trípode
Base de montaje de
trípode
Tornillos de
montaje
• When attaching an optional tripod mount
base on the bottom of the camera, use
the removed screws to attach the tripod
mount base. Use of longer or shorter
screws may cause drop or damage.
Recommended tightening torque:
0.39 N·m
