Panasonic WV-CP290/G [14/21] Use a cable tie locally procured to attach the coaxial cable to the camera mount bracket

4 The coaxial cable(procured locally) is connected to this video output connector.

Important:

• Be sure to turn off the power of each device before connection.

• Be sure to secure the coaxial cable connectors.

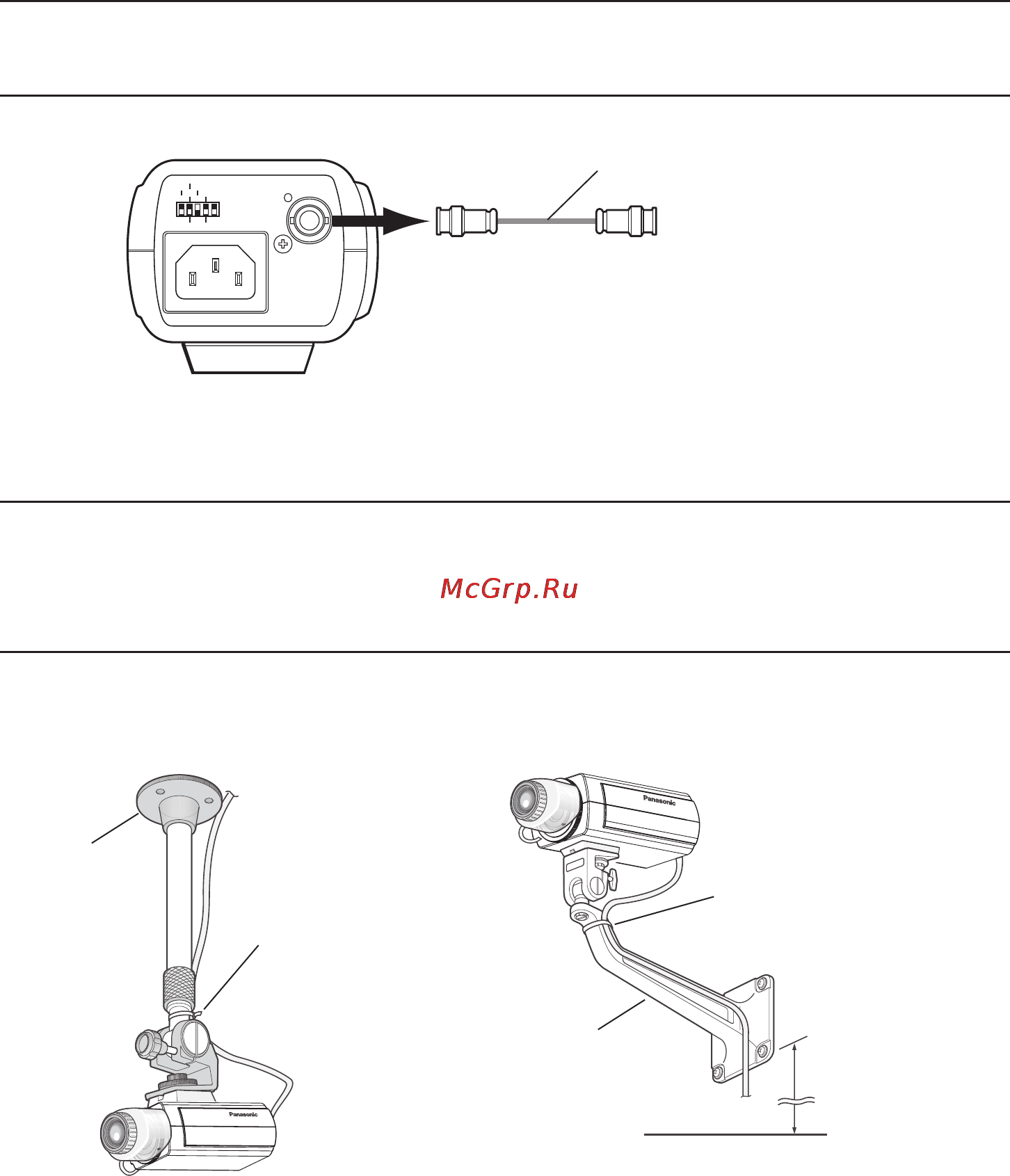

Connect a coaxial cable to the video output connector.

5 Use a cable tie (locally procured) to attach the coaxial cable to the camera mount

bracket.

Important:

• The cable tie shall be made of metallic or durable material to be strong enough because

the tie plays the role of camera drop prevention measures in case.

• When the camera mount bracket is mounted on a wall, be sure to observe the mounting

height described on the illustration below.

To video input

Coaxial cables

WV-CP290

220

AC IN

- 240V

INT

ATW

BLC

D/N

AWC

OFF

50Hz

VIDEO OUT

Camera mount

bracket (option)

The cable shall be

tied to the camera

mount bracket to

avoid slack.

The cable shall be

tied to the camera

mount bracket to

avoid slack.

Camera mount

bracket (option)

More than

270 cm

Floor
