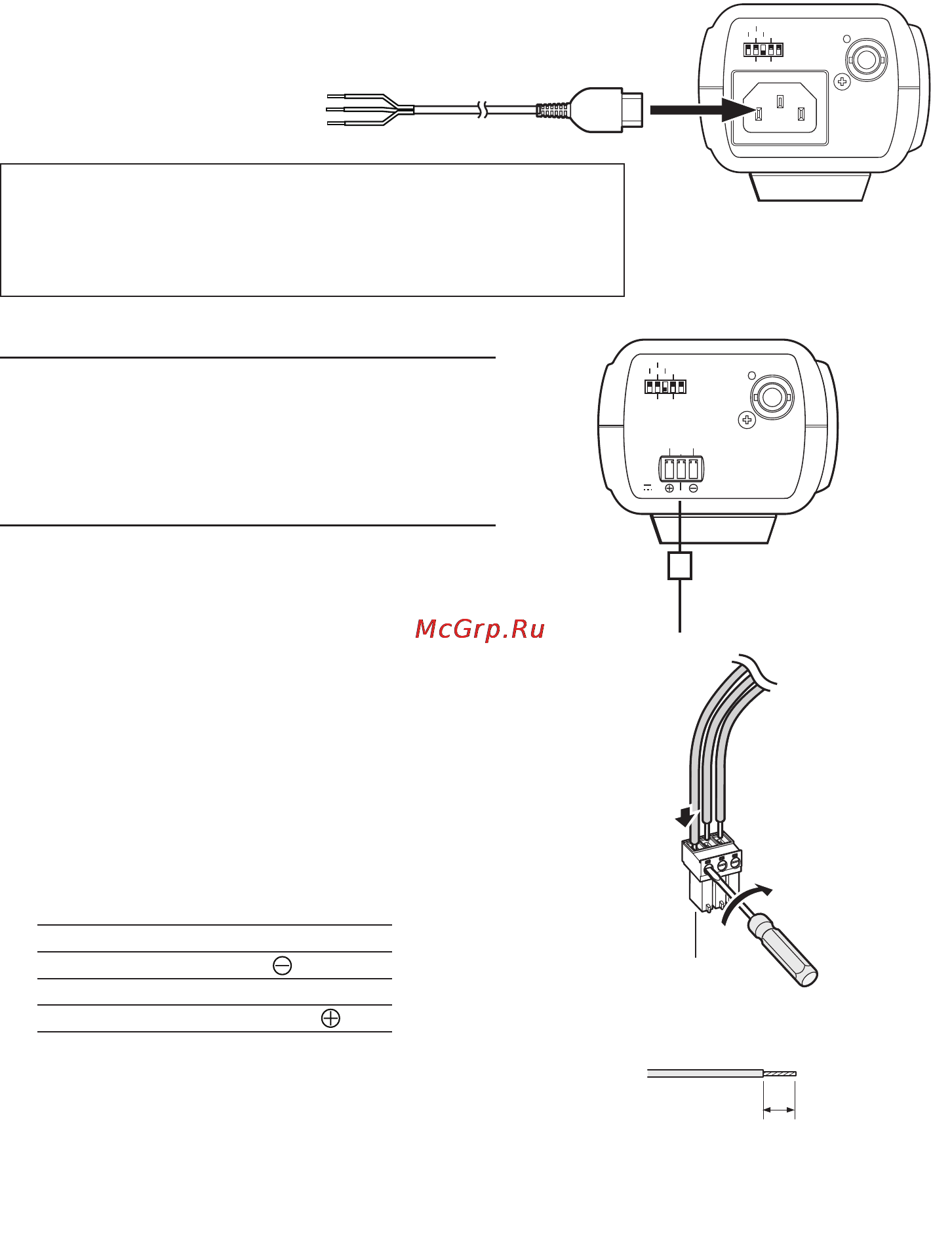

15
220 - 240V ~ 50 H z
INT
ATW
ON
ON
..
ON
BLC
D/ N
LL
AWC
OFF
OFF
OFF
VIDEO OUT
BS
AC IN
Power cord (accessory)
220 to 240 V AC,
50 Hz
WV-CP294
Important:
• The power supply of 24 V AC/12 V DC shall
be insulated against 220 to 240 V AC.
• The power supply is automatically selected
either 24 V AC or 12 V DC. No setting is
required with this camera.
A Loosen the screw of the power cord plug
(accessory).
B Connect the power supply (option) of 24 V
AC or 12 V DC to the power cord plug.
Strip the end of the wire by 3 mm to 7 mm,
and twist the stripped part of the wire
sufficiently to avoid short circuit.
• Specification of cable (wire)
AWG #16 - #28, Single core, twisted
* Check whether the stripped part of the
wire is not exposed and is securely
connected.
<Ratings>
24 V AC 12 V DC
A 2-N (GND)
B GND NC
C 1-L
C Tighten the screw of the power cord plug.
D Connect the power cord plug to the AC/
DC power terminal on the rear side of the
camera.
* Make sure that the power cord plug is
inserted fully into the AC/DC power supply
terminal.
24 VIN
~
1- L
12 VIN
NC
2- N
GND
INT
ATW
ON
ON
B. S.
ON
BLC
D/ N
LL
AW C
OF F
OF F
OF F
VIDEO OUT
To 24 V AC/12 V DC
power supply
C B A
Power cord plug
(accessory)
Stripped
3 mm - 7 mm
Caution:
• The camera shall be connected with cord set with plug.
Plug for respective country shall be mounted on the
Power cord by a qualified electrical.
6 Turn on the power.
WV-CP290
The included power cord is connected to this power connector.
Connect between the power connector on the rear side of the camera and a plug socket
with the supplied power cord.
