Kramer VM-10xl [12/17] Increasing the outputs

VM-10xl - Connecting the VM-10xl

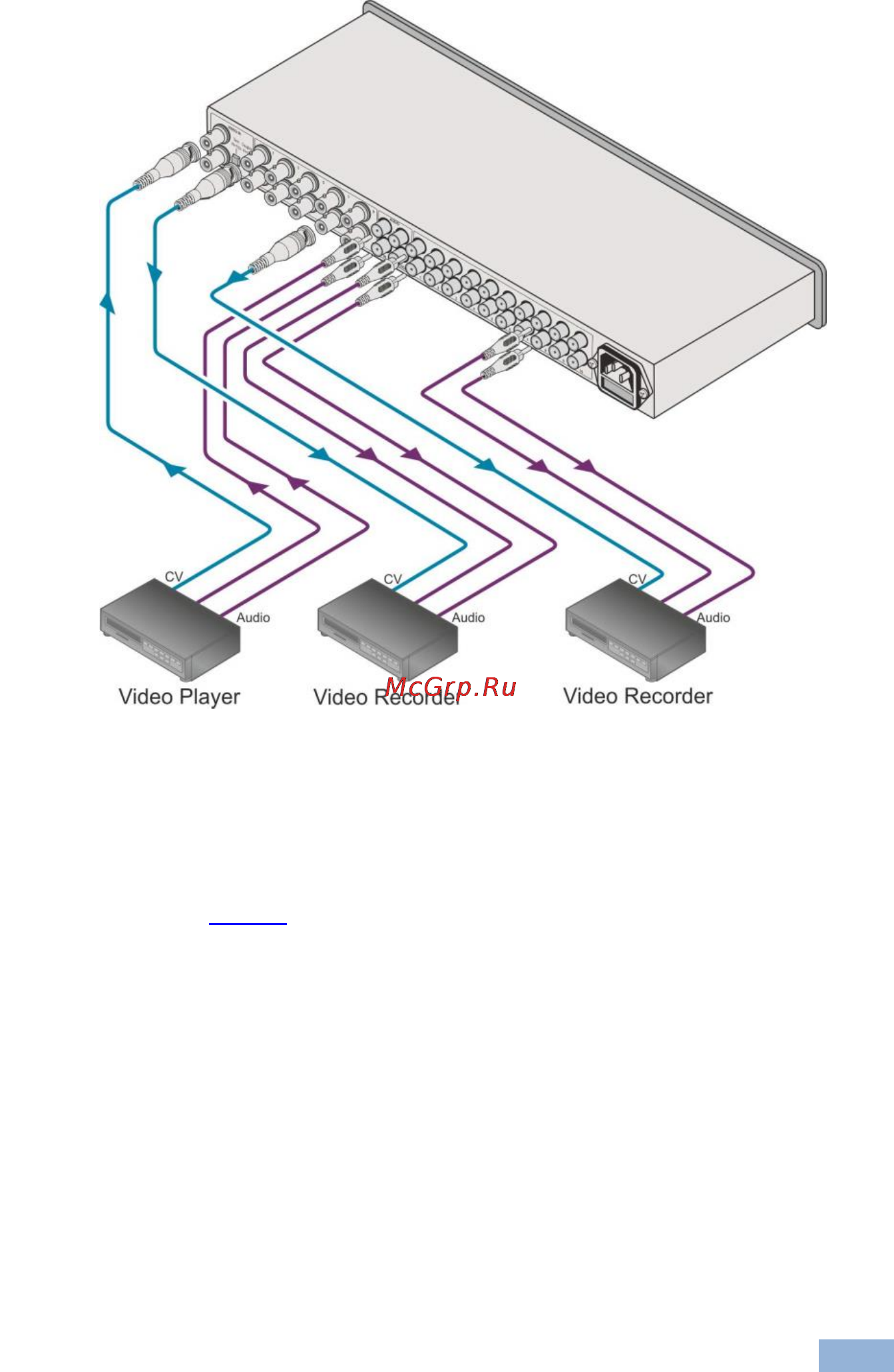

Figure 3: Connecting the VM-10xl Video Audio Distribution Amplifier

5.1 Increasing the Outputs

You can increase the number of outputs by interconnecting VM-10xl units. The

example in Figure 4 illustrates how to connect 3 units to increase the number of

outputs from 10 to 30.

To form a 1:30 video and unbalanced stereo audio DA, do the following:

1. Connect a video audio source (for example, a composite VCR) to the VIDEO

IN BNC connector and to the left and right AUDIO IN RCA connectors of the first

VM-10xl unit.
