VP-200K, VP-300K, VP-400K - Your High Resolution XGA DA

4 Your High Resolution XGA DA

This section defines the:

 VP-200K 1:2 High Resolution UXGA DA (see section 43H4.1)

 VP-300K 1:3 High Resolution UXGA DA (see section 44H4.2)

 VP-200K 1:4 High Resolution UXGA DA (see section 45H4.3)

4.1 Your VP-200K 1:2 High Resolution UXGA DA

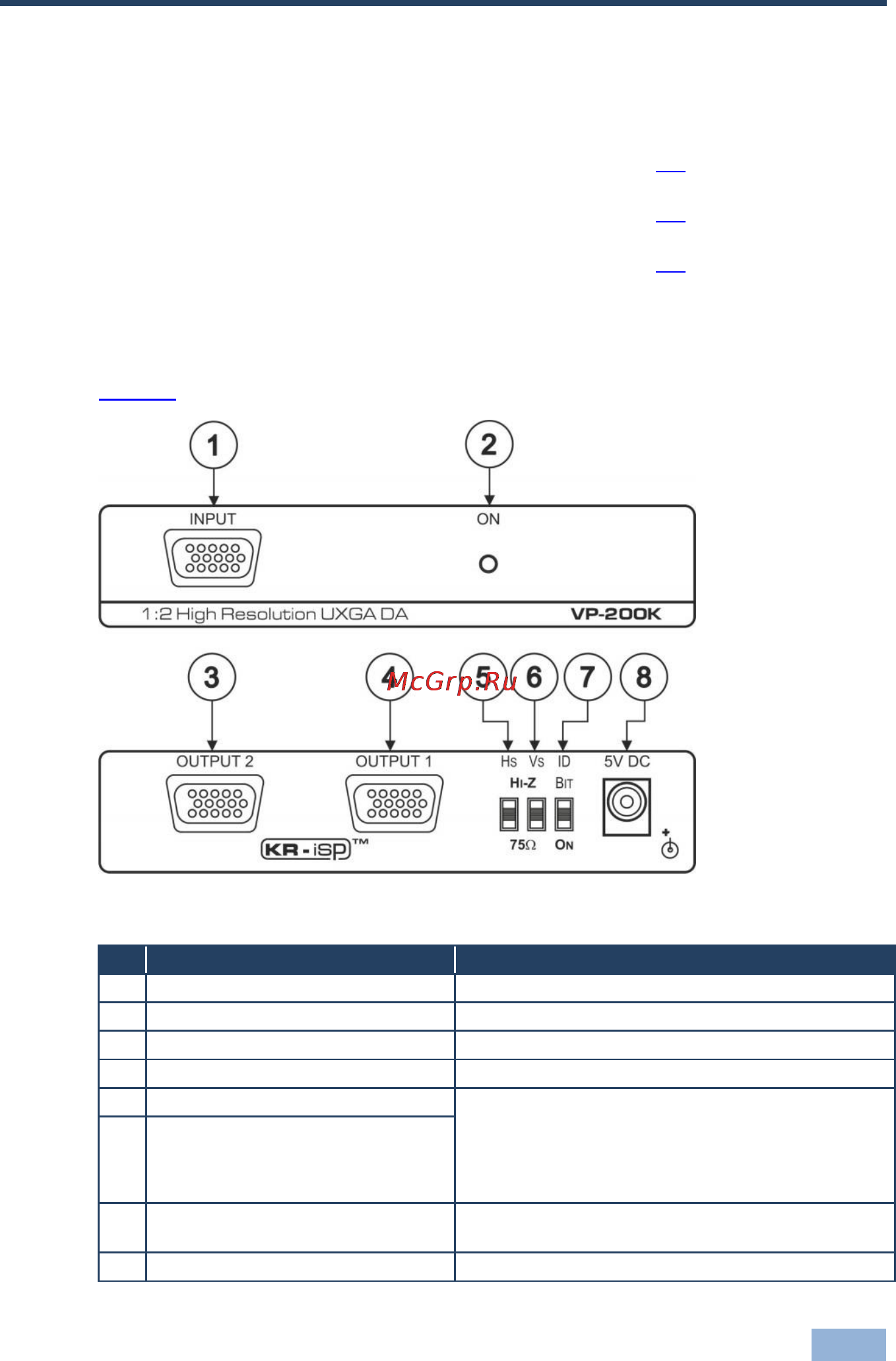

46HFigure 1 defines the VP-200K:

Figure 1: VP-200K 1:2 High Resolution UXGA DA

Feature

Function

INPUT 15-pin HD Connector

Connect to the computer graphics source

ON LED

Illuminates when receiving power

OUTPUT 2 15-pin HD Connector

Connect to the computer graphics acceptor 2

OUTPUT 1 15-pin HD Connector

Connect to the computer graphics acceptor 1

Hs (Horizontal Sync) Switch

Set both switches to Hi-Z (TTL) if the source is, for

example, a digital graphics card. Set both switches

to 75 (ANALOG) if the source is analog based, for

example, an RGBHV source with coaxial cable for

sync

Vs (Vertical Sync) Switch

ID Bit Switch

Slide down to set to ON for a laptop; up to set to

OFF for a non-laptop

5V DC

+5V DC connector for powering the unit
