Your UXGA Switcher / DA

4 Your UXGA Switcher / DA

Figure 1 and Table 1 define the VP-222K UXGA Switcher / DA:

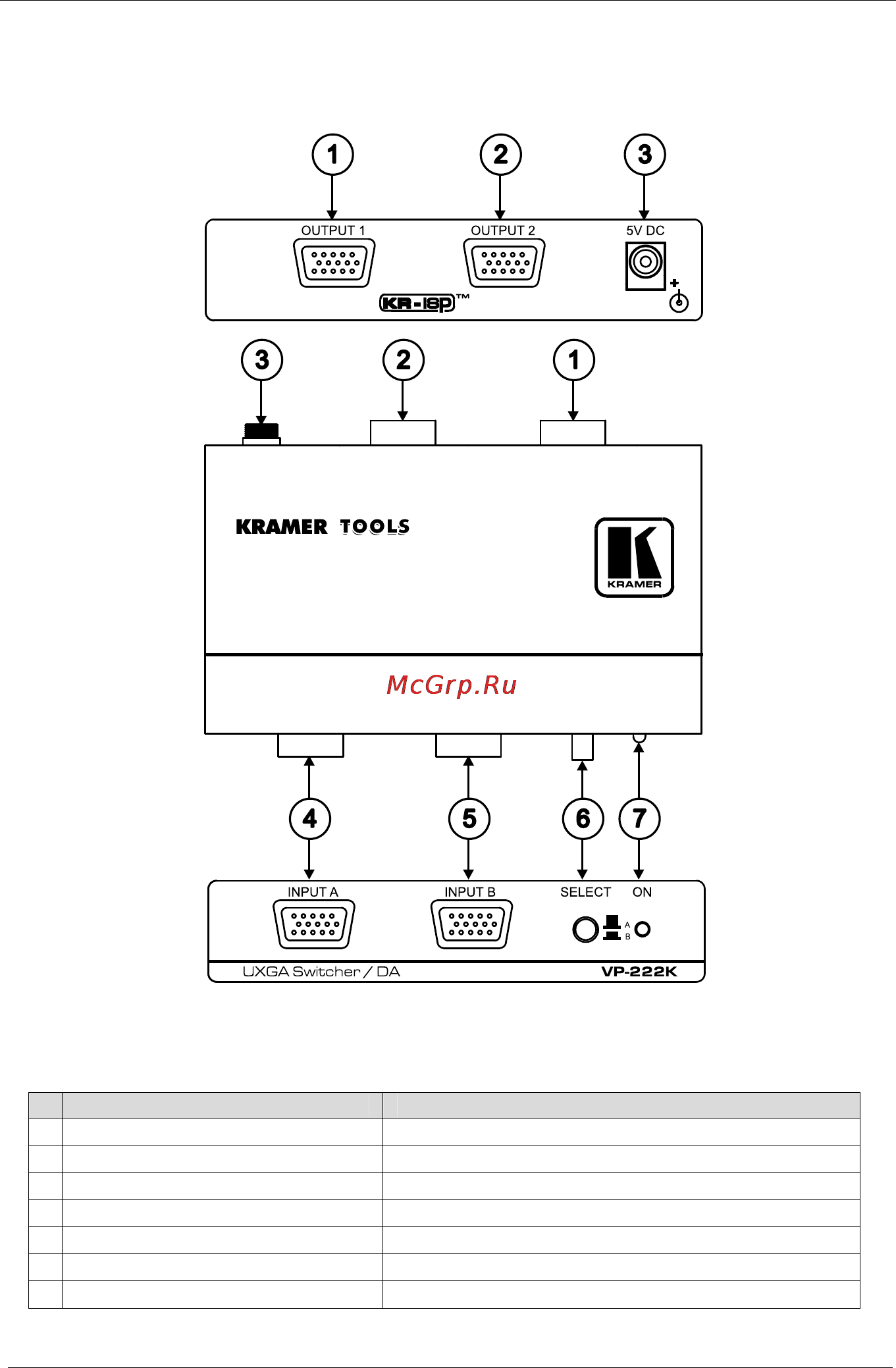

Figure 1: VP-222K UXGA Switcher / DA

Table 1: Features and Functions of the VP-222K UXGA Switcher / DA

# Feature Function

1 OUTPUT 1 15-pin HD (F) connector Connects to the UXGA acceptor 1

2 OUTPUT 2 15-pin HD (F) connector Connects to the UXGA acceptor 2

3 5V DC +5V DC connector for powering the unit

4 INPUT A 15-pin HD (F) connector Connects to the UXGA source A

5 INPUT B 15-pin HD (F) connector Connects to the UXGA source B

6 A/B Button Releasing selects INPUT A; pushing in selects INPUT B

7 ON LED Illuminates when receiving power
