Congratulations on purchasing your Kramer DIP-20BP / DIP-30BP black replacement front panel

which is used to replace the gray front panel so it can blend into the T10-22M inner frame of the

TBUS-10XL. Included with the DIP-20BP or DIP-30BP front panel is an Allen L-shaped key.

To replace the front panel of the DIP-20BP or DIP-30BP:

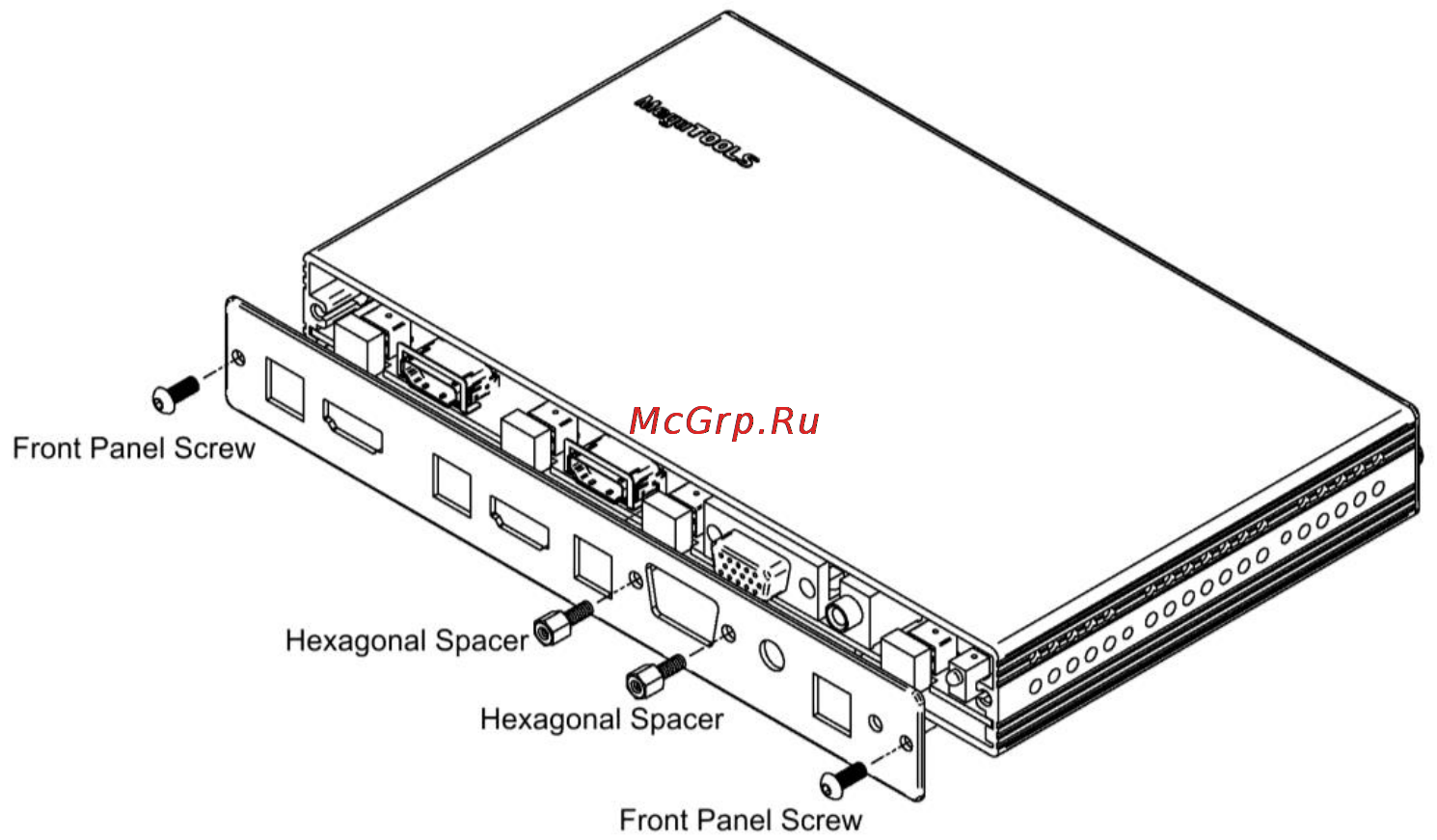

1. Remove the two front panel screws on the

DIP-20 or DIP-30 with the Allen L-shaped key (supplied).

2. Remove all the hexagonal spacers using a 5mm socket spanner wrench (not supplied).

3. Remove the original front panel and replace with the new DIP-20BP or DIP-30BP black front

panel.

4. Replace the hexagonal spacers and tighten with the socket spanner wrench.

5. Replace the two front panel screws and tighten with the Allen L-shaped key.
