KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your RC-52N

4.2 The RC-52N Rear Panel

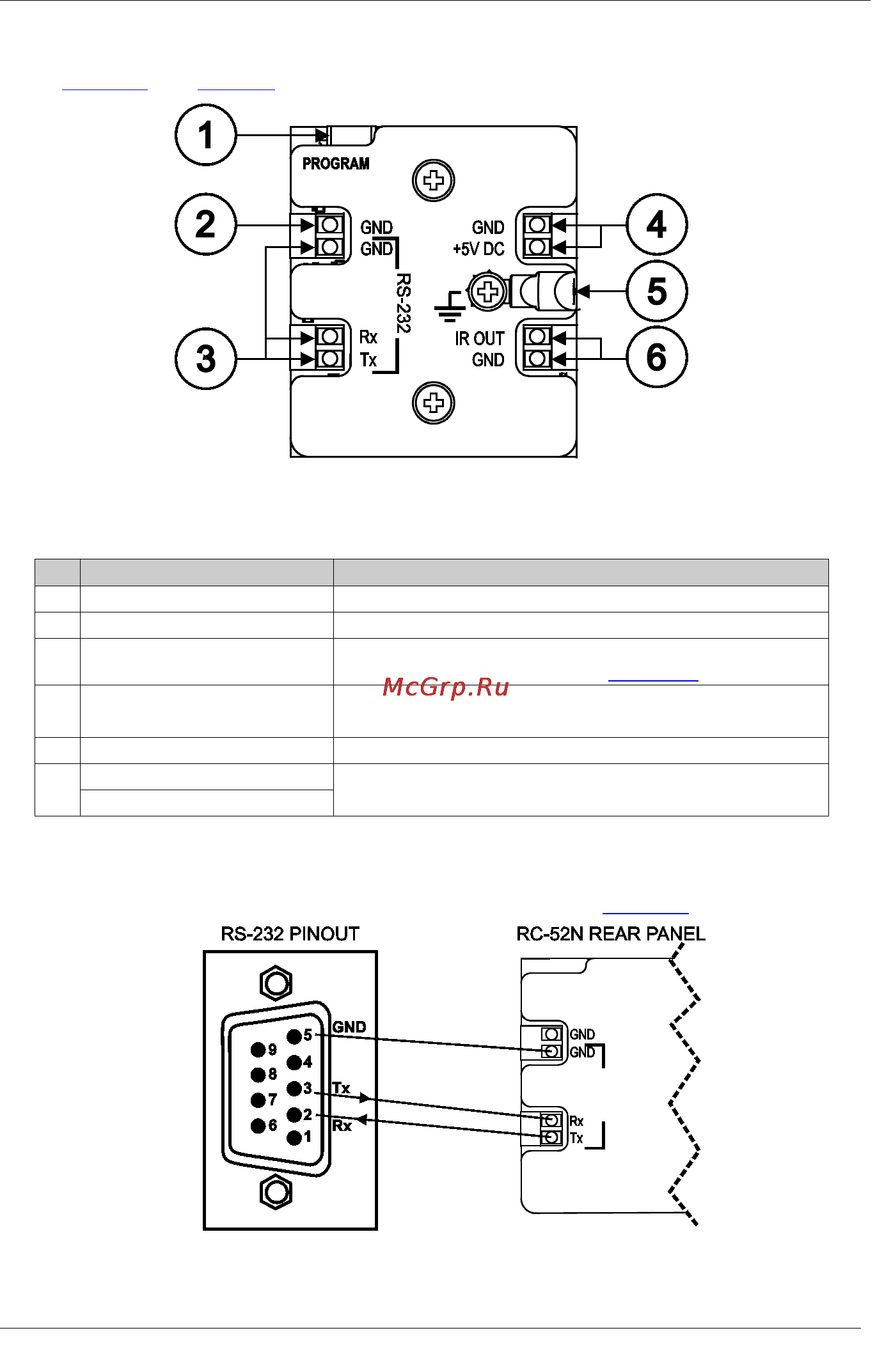

Figure 2 and Table 1 define the RC-52N rear panel:

Figure 2: RC-52N Rear Panel

Table 1: Features and Functions of the RC-52N

# Feature Function

1 Program USB Connector Connect to a computer for unit configuration

2 GND PIN Not used

3 RS-232 Terminal Block

Connector

Connect to the RS-232 connector on the A/V equipment or a

PC or other Serial Controller, see Section

4.3

4 GND PIN Connects (-) to the Ground

+5V PIN Connects (+) to the connector for powering the unit

5 Grounding Screw Connect to grounding wire

6 IR OUT PIN

Connect to an IR emitter cable

GND PIN

4.3 The RS-232 PINOUT

The RS-232 9-pin D-sub port PINOUT is defined in

Figure 3:

Figure 3: RS-232 PINOUT
