KRAMER: SIMPLE CREATIVE TECHNOLOGY
Configuring a TP-107AVR System
18
5.6 Setting the Address Number of the TP-107AVR
A maximum of 256 addresses can be set via the two rotary switches
1
(with
each Hex number ranging from 0 to F). When using the Kramer RC-108 or
RC-116 controller, the address numbers are set from 1 to 8 or from 1 to 16
respectively
2
(in accordance with the numbers on the rotary switches on the
controller), as illustrated in
Figure 14 and defined in Table 10.

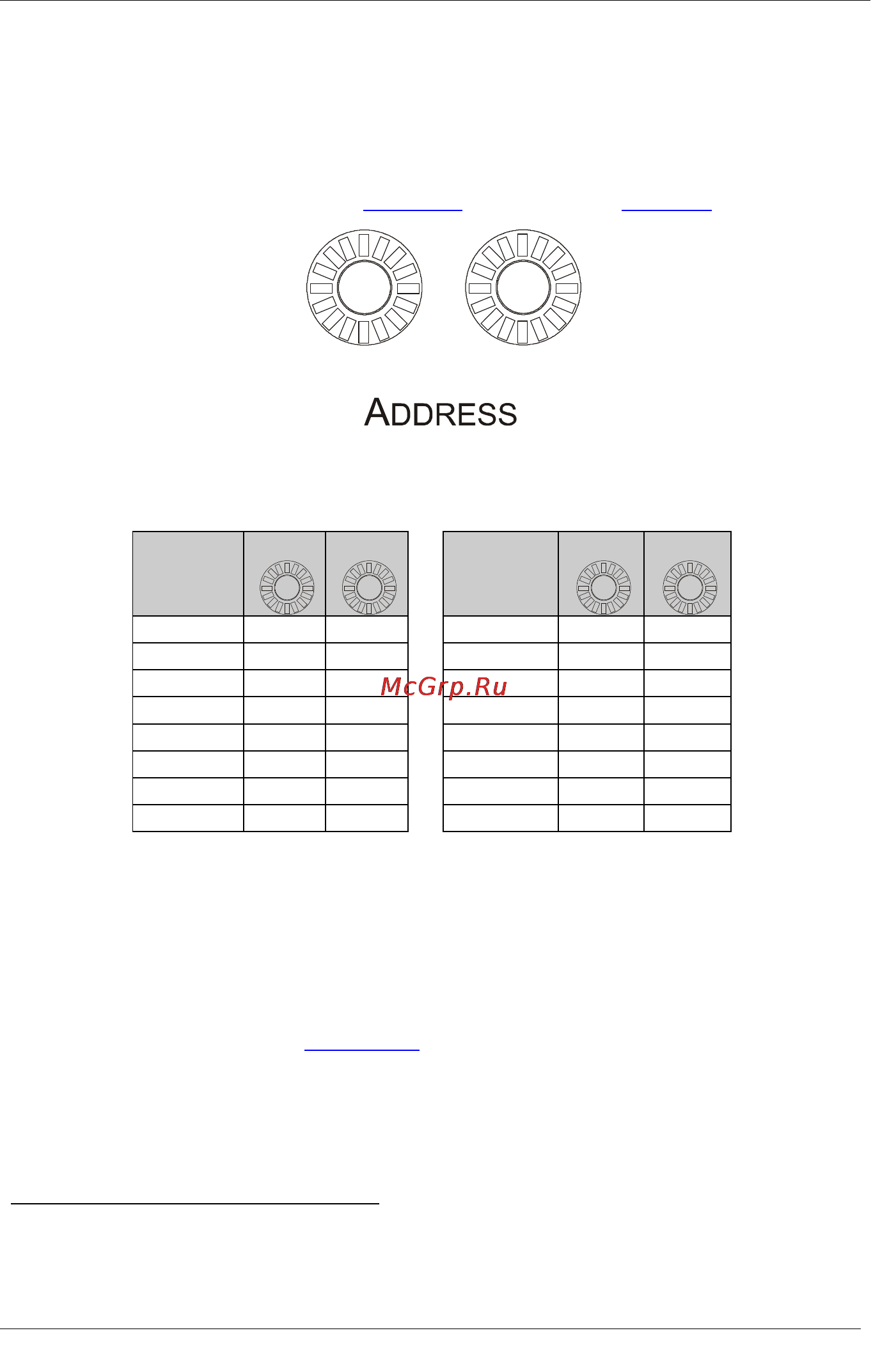

Figure 14: Rotary Switch Settings
Table 10: Rotary Switch Setting Features
Address # Left
Right
Address # Left
Right
1 0 0 9 0 8
2 0 1 10 0 9
3 0 2 11 0 A
4 0 3 12 0 B
5 0 4 13 0 C
6 0 5 14 0 D
7 0 6 15 0 E
8 0 7 16 0 F
The option to set the address numbers up to 256 is useful when preparing
meetings, for example, in hotels or conference centers. When one
conference center uses many TP-107AVR units (for example, 32 units),
preset each to a different address number (any number from 1 to 256). The
preset addresses make it easy to setup a BoardView™ system. For example,
to setup a 16-unit system, take any of the available machines and connect
them (as described in
Section 5.5) in any order without having to worry
about a duplicate address number. Such a system can be used without
connecting the RC-108/RC-116 Presentation Controller
3
1 To maintain high quality video transmission, using more than 16 units in a system is not recommended
, letting each
participant in the meeting gain access by pressing the ONLINE button.
2 For higher address numbers refer to a decimal to Hex converter. For example, address number 125 is 7D
3 To use the RC-108/RC-116, the address numbers on the TP-107AVR units must be set from 1 to 8/1 to 16, respectively
