Overview
5
5

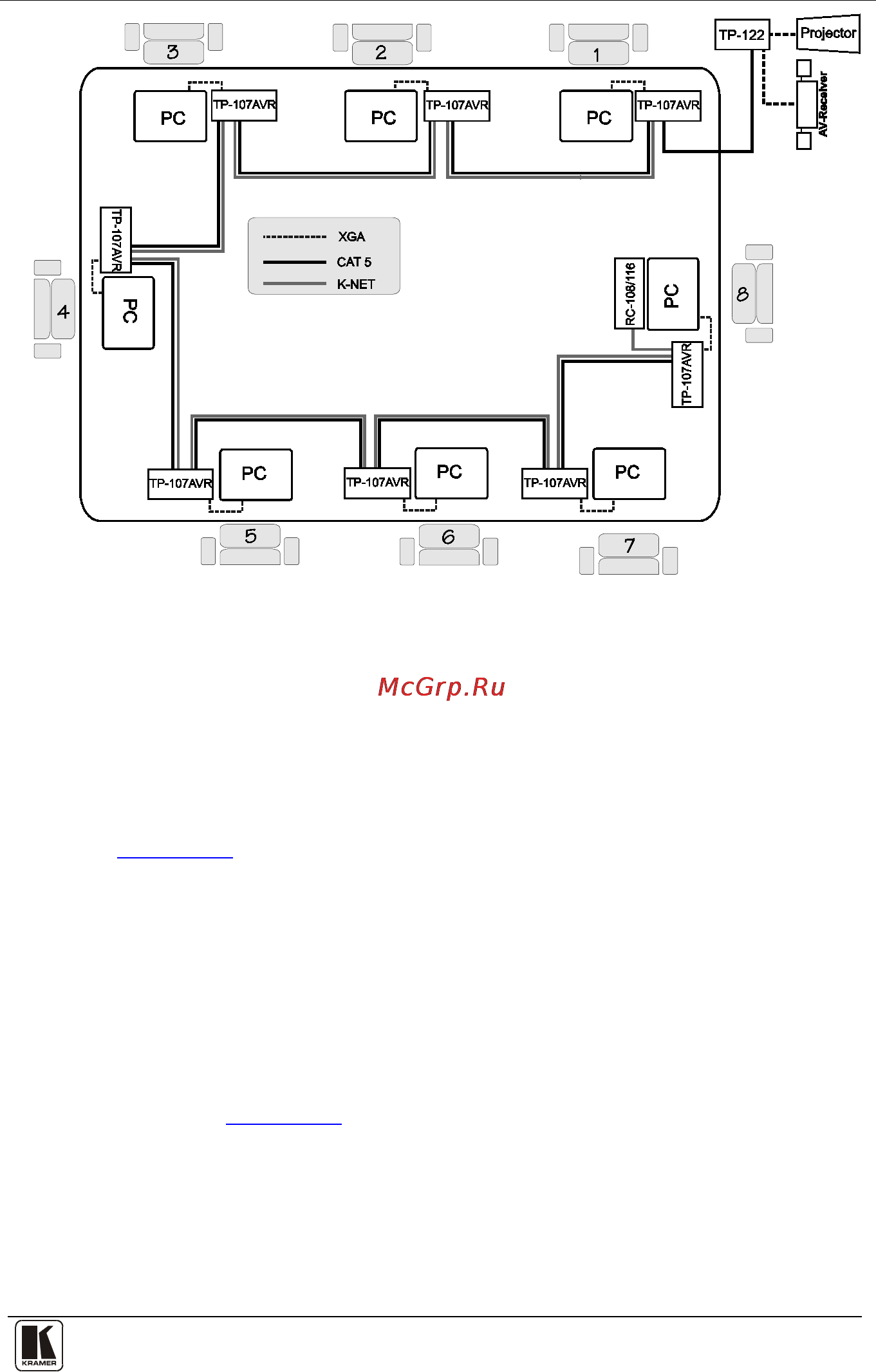

Figure 1: TP-107AVR/TP-122 Configuration
The TP-107AVR includes:
• A LINE IN CAT 5 connector, that connects to the LINE OUT CAT 5
connector on the previous Line Transmitter
• A LINE OUT CAT 5 connector, that connects to a receiver (for
example, the TP-122) or to the next Line Transmitter in the chain
• A pair of rotary selector switches for setting the ADDRESS (see
Section 5.6
In addition, the TP-107AVR:
)
• Must be controlled via KNET
• Has a resolution of up to UXGA
• Is 12V DC fed
The TP-122:
• Can power—or be powered by—the transmitter over the same CAT 5
cable (see
Section 3.4
• Can change the polarity of decoding H and V Sync for video
)
• Includes EQ. and level controls
• Allows an operation range of more than 300ft (more than 100m) over
standard CAT 5 cable
• Is 12V DC fed
