Kramer PT-562 [12/22] Your wp 562 hdmi line receiver

Your WP-561, WP-562 HDMI Transmitter/Receiver Pair

4.2 Your WP-562 HDMI Line Receiver

Figure 4

, Figure 5, Figure 6, and Table 2 define the receiver module.

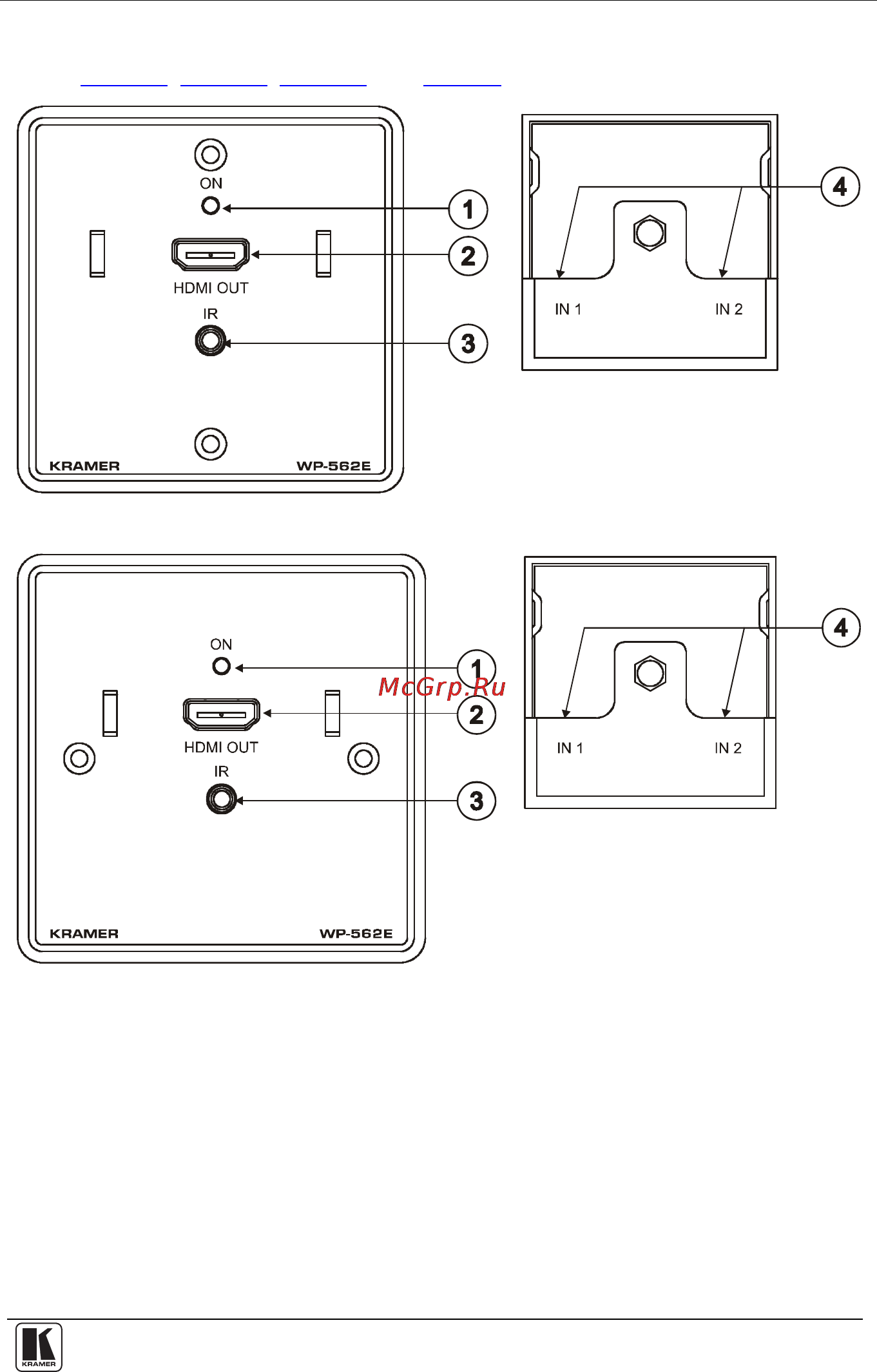

Figure 4: WP-562 HDMI Line Receiver Belgian/German Model Functions

Figure 5: WP-562 HDMI Line Receiver UK/European Model Functions
