PT-571/PT-572+ - Defining the PT-572+ HDMI Line Receiver
7
7
5 Defining the PT-572+ HDMI Line Receiver
The Kramer Pico TOOLS PT-572+ HDMI Line Receiver receives an encoded
signal over a CAT 5 cable transmitted from the PT-571, decodes it, and converts it
to an HDMI output.
The PT-572+ has:
An HDMI output connector
An RJ-45 CAT 5 input connector
One power/status LED

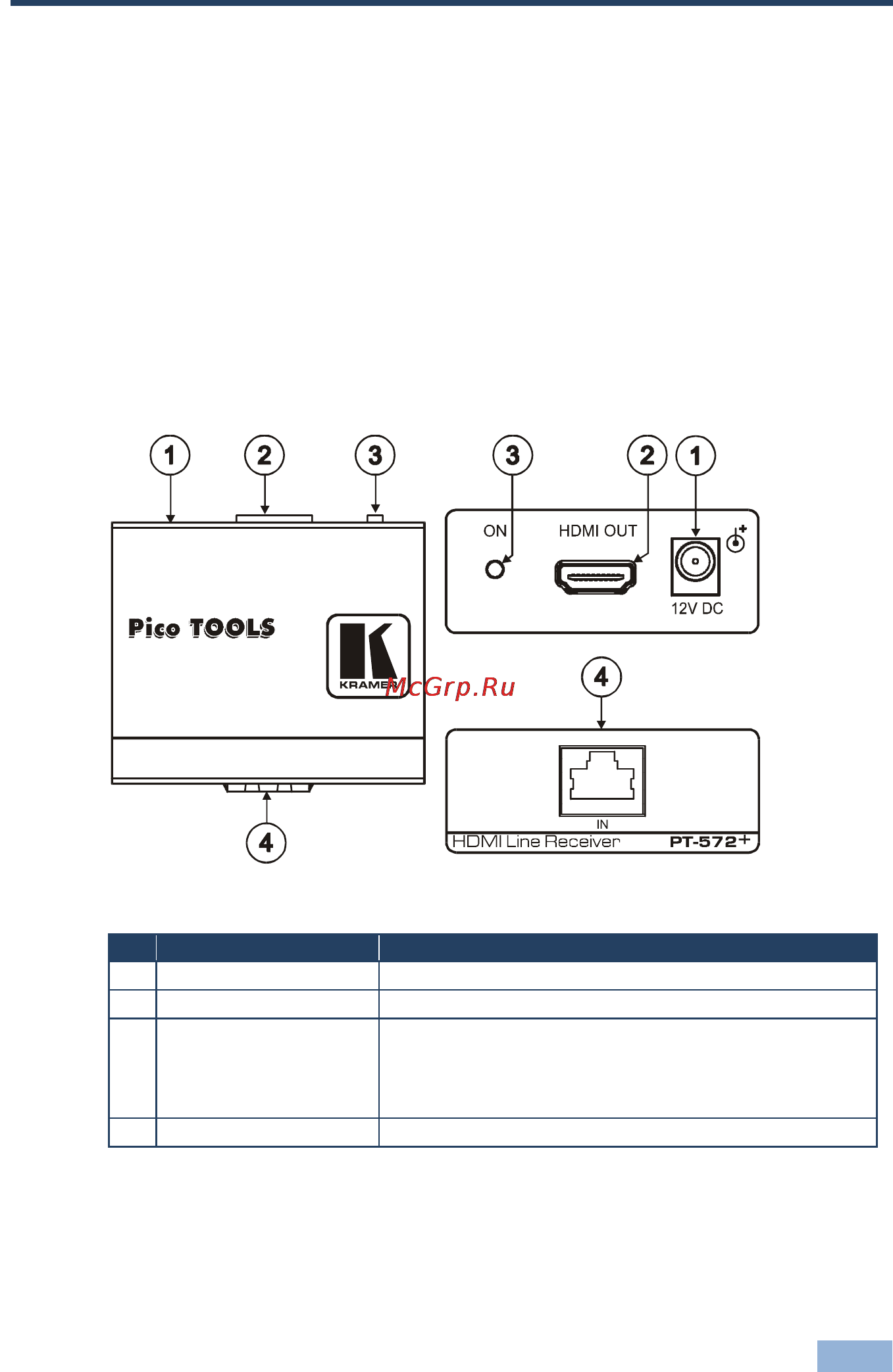

Figure 2: PT-572+ HDMI Line Receiver
#
Feature
Function
1
12V DC
+12V DC connector for powering the unit
2
HDMI OUT Connector
Connect to the HDMI acceptor
3
ON LED
Lights to indicate the following:
Red—only the power is connected
Orange—either the input or the output is connected
Green—both the input and the output are connected
4
IN RJ-45 Connector
Connect to the OUT RJ-45 connector on the PT-571
