Your PT-101Hxl HDMI Repeater
5
4 Your PT-101Hxl HDMI Repeater

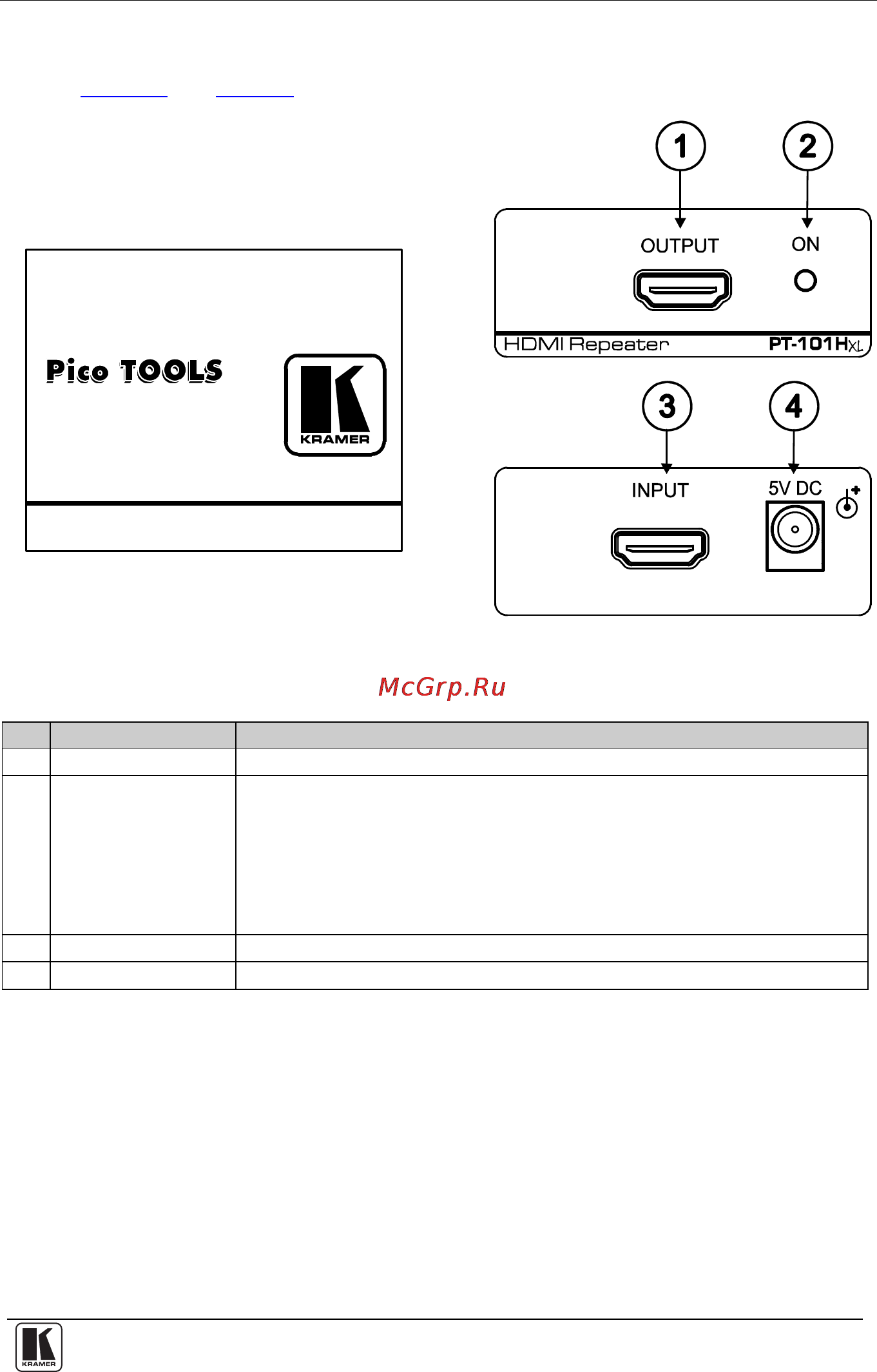

Figure 1 and Table 1 define the PT-101Hxl HDMI Repeater:
Figure 1: PT-101Hxl HDMI Repeater
Table 1: PT-101Hxl HDMI Repeater Features
# Feature Function
1 OUTPUT Connector Connects to the HDMI acceptor
2 ON LED Illuminates when receiving power. The POWER LED is colored:
Green, when the 5V DC power source is connected but no input signal is
received,
Red, when an input signal is received and the 5V DC power source is
disconnected,
Orange, when both the 5V DC power source is connected and an input signal
is received
3 INPUT Connector Connects to the HDMI source
4
5V DC
+5V DC connector for powering the unit
