This section defines the PT-101DP.

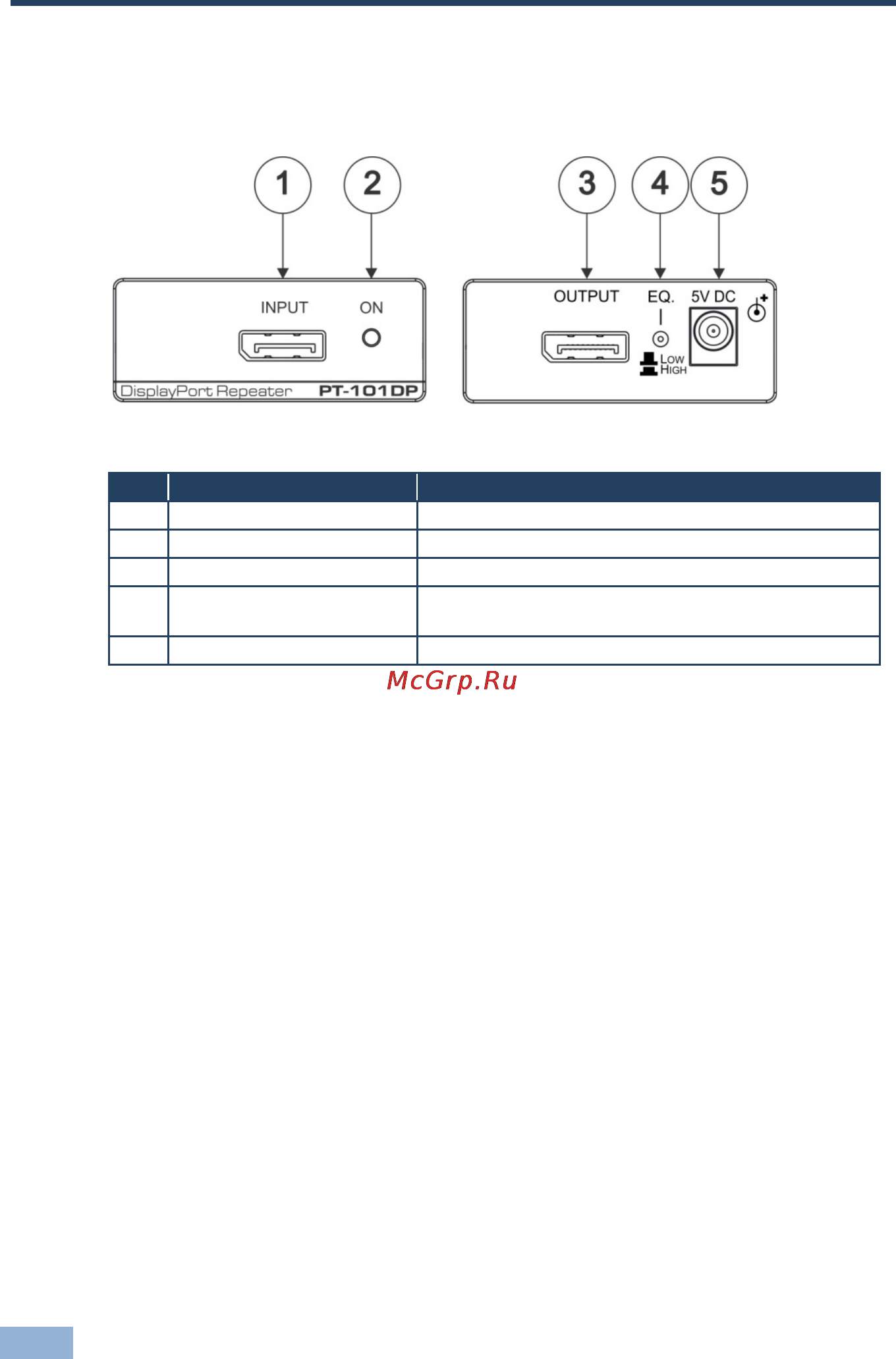

Figure 1: PT-101DP DisplayPort Repeater

# Feature Function

1 INPUT DP Connector Connects to a DisplayPort source

2 ON LED Lights green when the unit is powered on

3 OUTPUT DP Connector Connects to a DisplayPort acceptor

4 EQ Button Press (High) for equalization of longer cables,

release (Low) for shorter cables

5 5V DC Connector Connects to the 5V DC power adapter
