673T, 673R - Overview

3.1 Defining the 673T, 673R HD-SDI Optical

Transmitter/Receiver

This section describes the:

 673T HD-SDI Optical Transmitter, see Section 3.1.1

 673R HD-SDI Optical Receiver, see Section 3.1.2

3.1.1 Your 673T HD-SDI Optical Transmitter

Figure 1 defines the 673T HD-SDI Optical Transmitter:

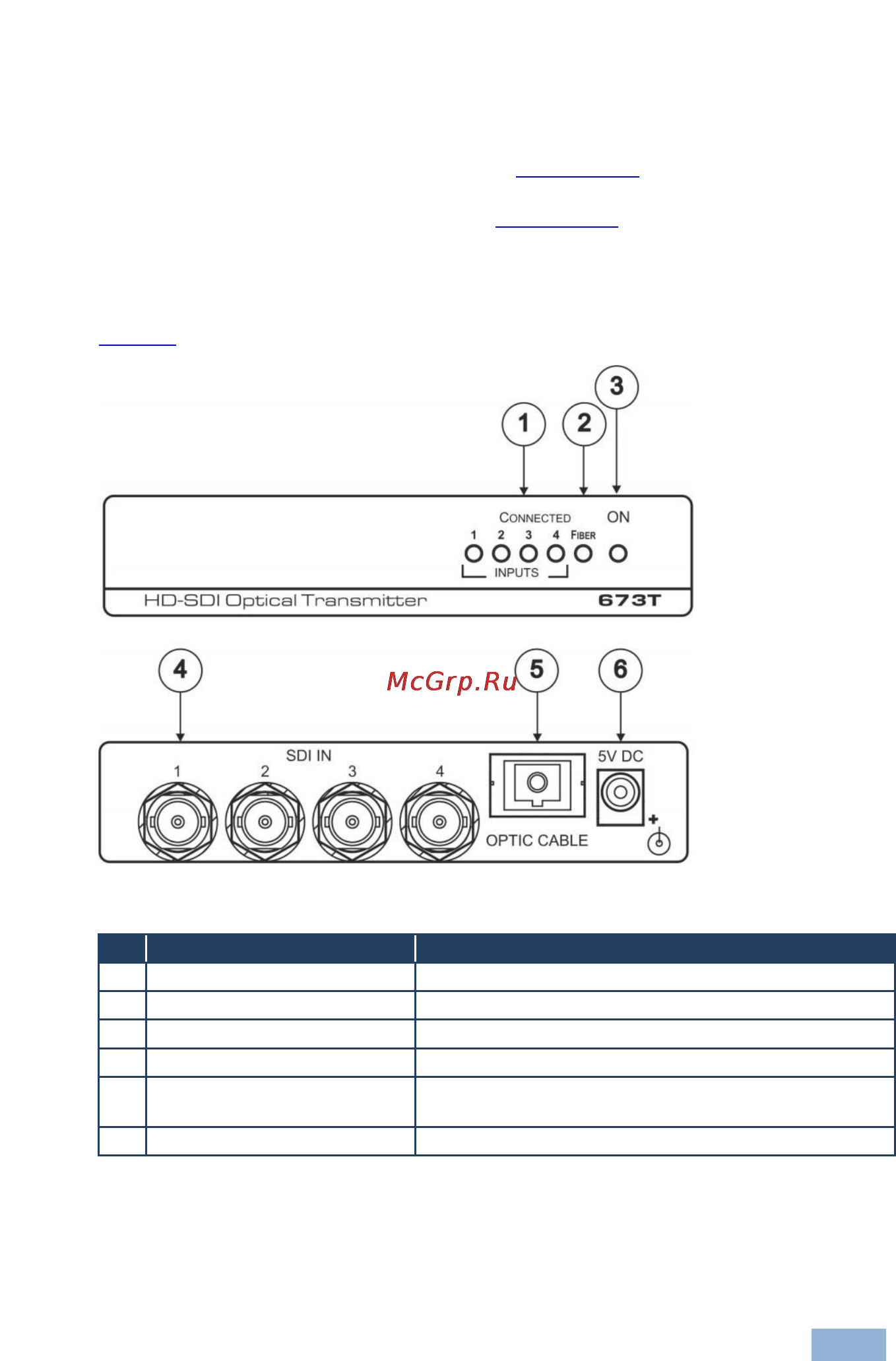

Figure 1: 673T HD-SDI Optical Transmitter

Feature

Function

CONNECTED INPUT LEDs

Lights when a valid input is connected (from 1 to 4)

FIBER LED

Lights when the fiber optic cable is connected

ON LED

Illuminates when receiving power

SDI IN BNC Connector

Connects to the SDI source (from 1 to 4)

OPTIC CABLE Connector

Connects to the optical connector on the 673R via

multimode fiber cable

5V DC

+5V DC connector for powering the unit
