Congratulations on purchasing your Kramer Wall Plate / Wall Plate Insert!

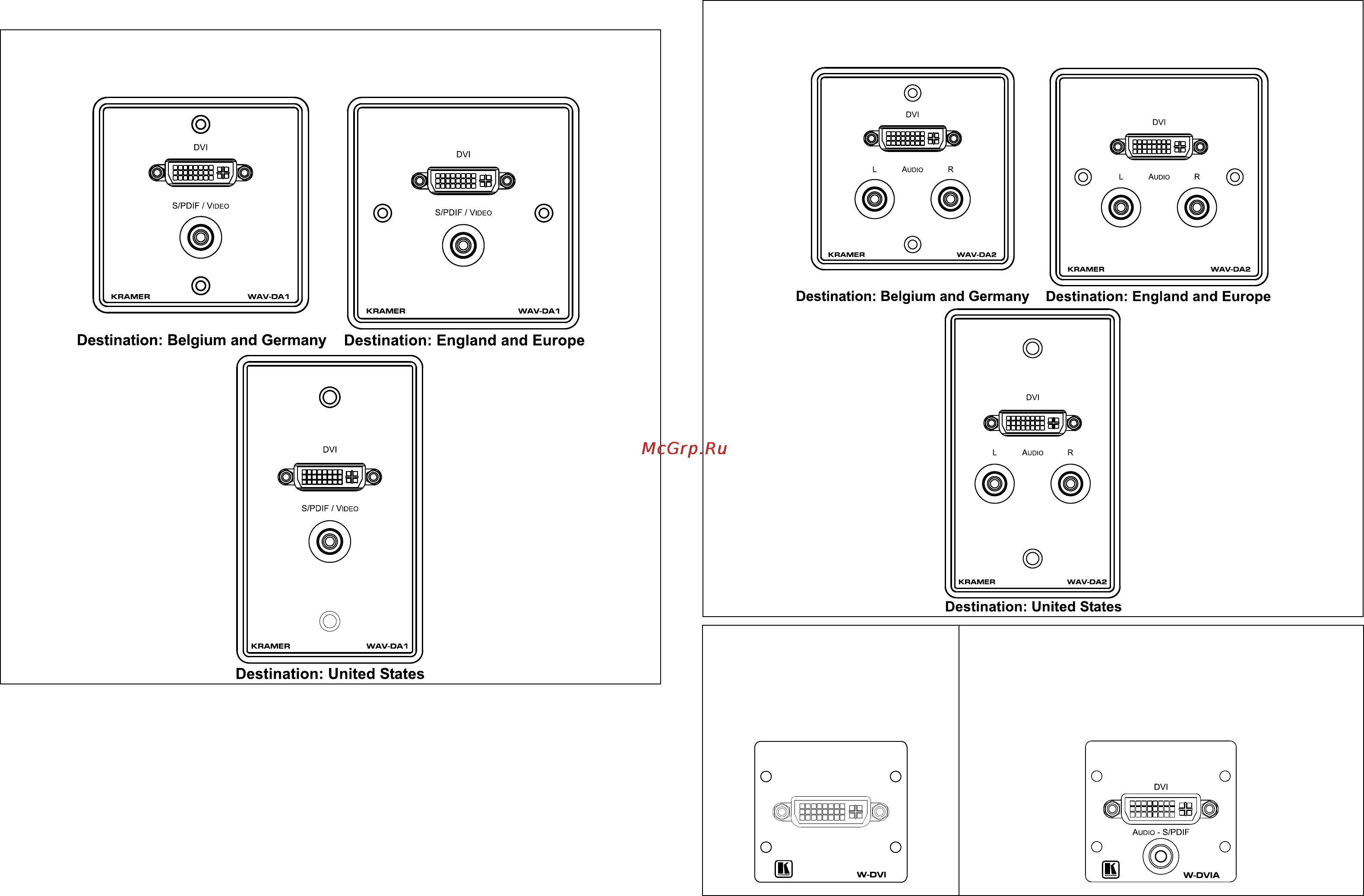

The WAV-DA1 is a one gang wall plate insert that has one female DVI connector at the front

and a cable with a female DVI connector at the rear. The WAV-DA1 also has a pass through

connector for S/PDIF (digital audio) or Video (composite or SDI) on a yellow RCA connector:

The WAV-DA2 is a one gang wall plate insert that has one female DVI connector at the front

and a cable with a female DVI connector at the rear. The WAV-DA2 also has two pass through

connectors for unbalanced stereo audio on RCA connectors (white for L and red for R):

The W-DVI is a dual insert wall

plate with a female DVI connector

at the front and a cable with a

female DVI connector at the rear:

The W-DVIA is a dual insert wall plate with a female DVI

connector at the front and a cable with a female DVI

connector at the rear. The W-DVIA also has a pass

through connector for unbalanced stereo audio or S/PDIF

(digital audio) on a 3.5mm mini-plug connector

at the front

with a cable and connector at the rear:
