The Kramer Mounting Frame

The Kramer FLA-12 and/or FLA-13 mounting frames are used to install Kramer inserts to

Ackermann Flush floor service units.

The Kramer FLA-12 can

include up to 4 single

Kramer inserts and fits

into the GB2 slot of the

Ackermann Flush floor

service units.

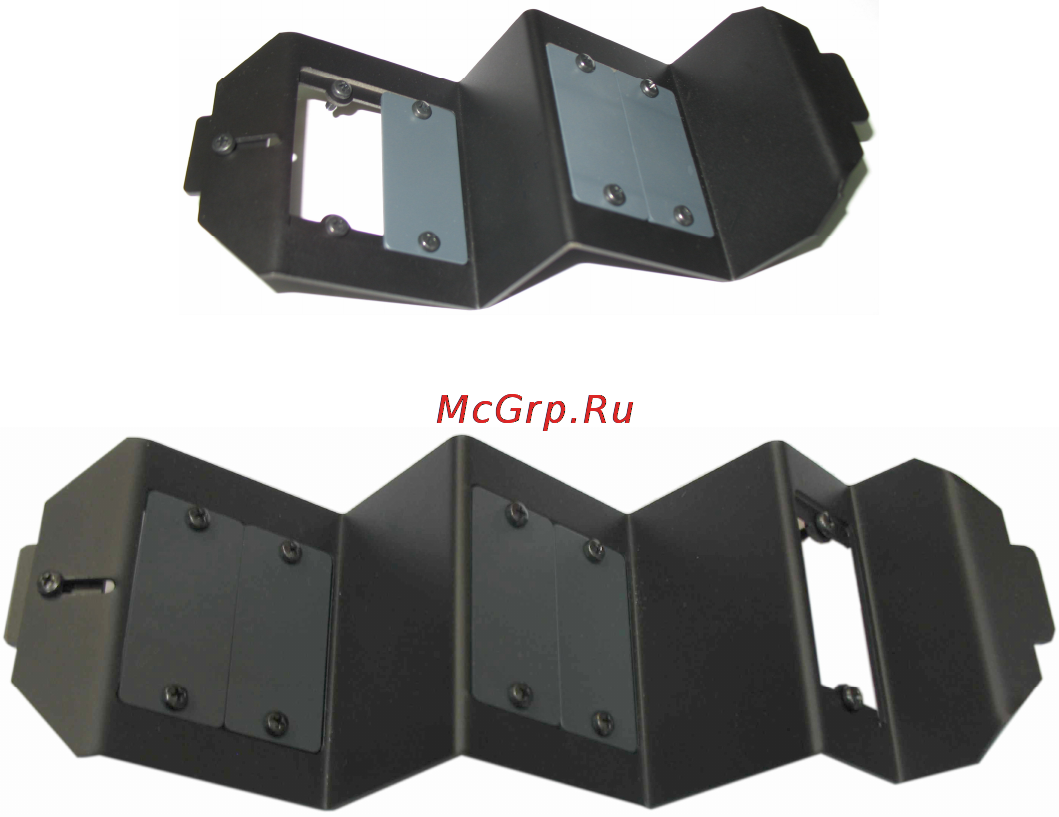

Figure 1: FLA-12

The Kramer FLA-13 can

include up to 5 single

Kramer inserts and fits

into the GB3 slot of the

Ackermann Flush floor

service units.

Figure 2: FLA-13

To install a Kramer insert, do the following:

1. Place and align the required wall plate insert item over the opening.

2. Insert the two screws to fix the insert in place, and tighten them.

To install the FLA-12/FLA-13 inside the Ackermann Floor Box, do the following:

1. Run the cables through the Ackermann underfloor cable opening.

2. Connect the cables to the rear side of the inserts.

3. Fit the FLA12/FLA13 tab into its designated place in the Ackermann underfloor box.

4. Place the tab with the slot into place in the Ackermann box and tighten the screws in

place.

5. Connect the desired cables to the inserts.
