Installing Your Kramer Rack Adapters

5.2 Installing Inserts on the RK-WP16

The example in Figure 2 shows how to mount single and double inserts in the

19” 2U RK-WP16 rack adapter, including optional insertion of blank inserts.

Use the M3x8 screws (supplied with the unit) to install the required inserts on

the rack adapter.

M3x8

SCREW

Single Insert Wall

Single Blank Wall

Insert

Double Wall Insert

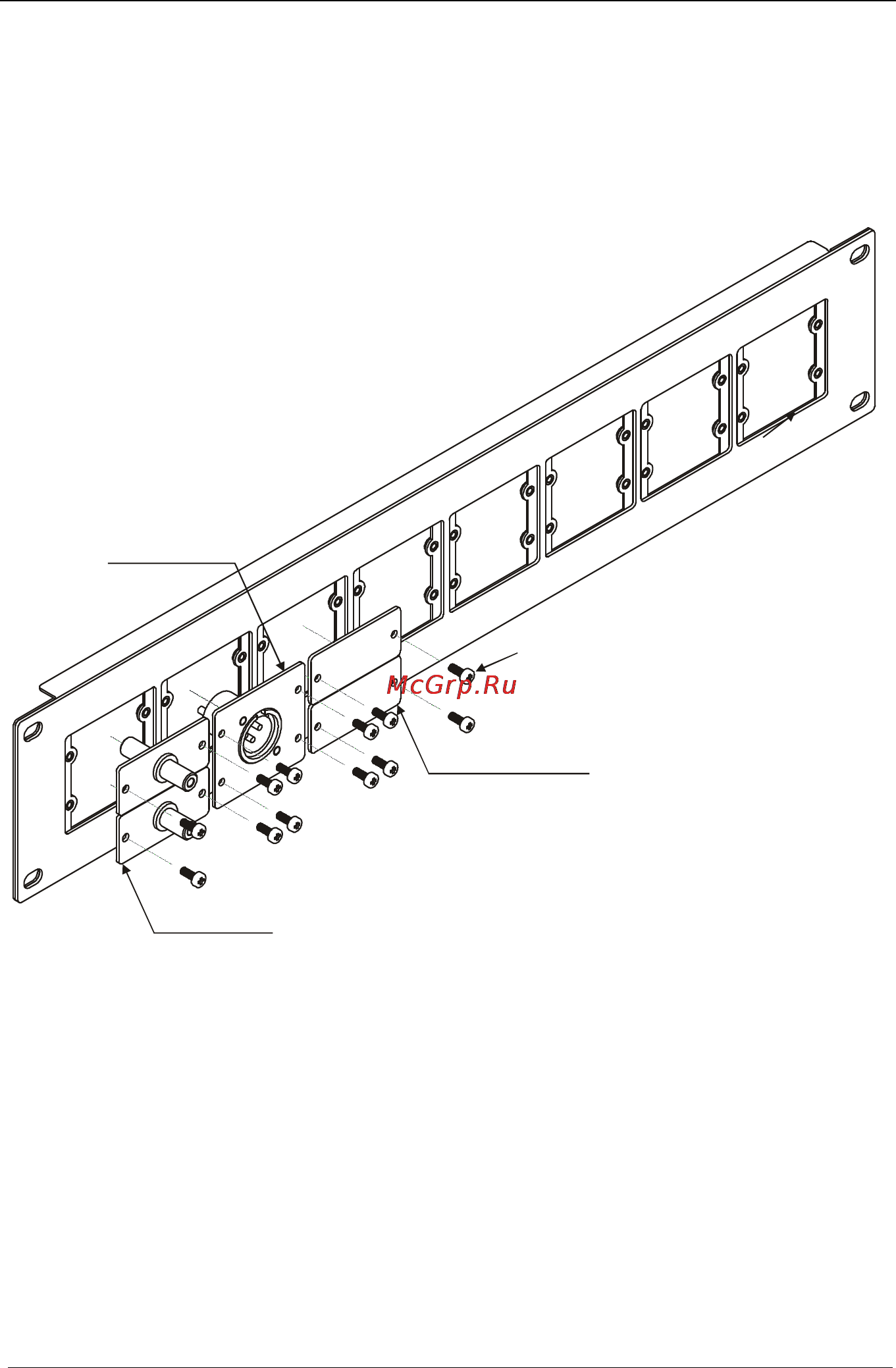

Figure 2: Mounting the RK-WP16 Rack Adapter

Instead of installing an insert, you can use a blank insert to cover the relevant

opening. If required, you can order additional blank inserts to cover other

openings.

After installing the wall inserts, the unit is ready to be mounted on a 19” rack

shelf.
