The VA-101P12 and VA-102P12 are 5- and 10-output power supplies used for

powering 12V DC powered devices. The VA-101P12 can supply a maximum of 1A

of current to each of five devices for a total of 5A current. The VA-102P12 can

supply a maximum of 1A of current to each of ten devices for a total of 10A current.

The power supplies are especially useful in high-population installations for saving

space and eliminating a large number of 12V DC power adapters.

3.1 Defining the VA-101P12 12V DC Power Supply

This section defines the 5-output VA-101P12.

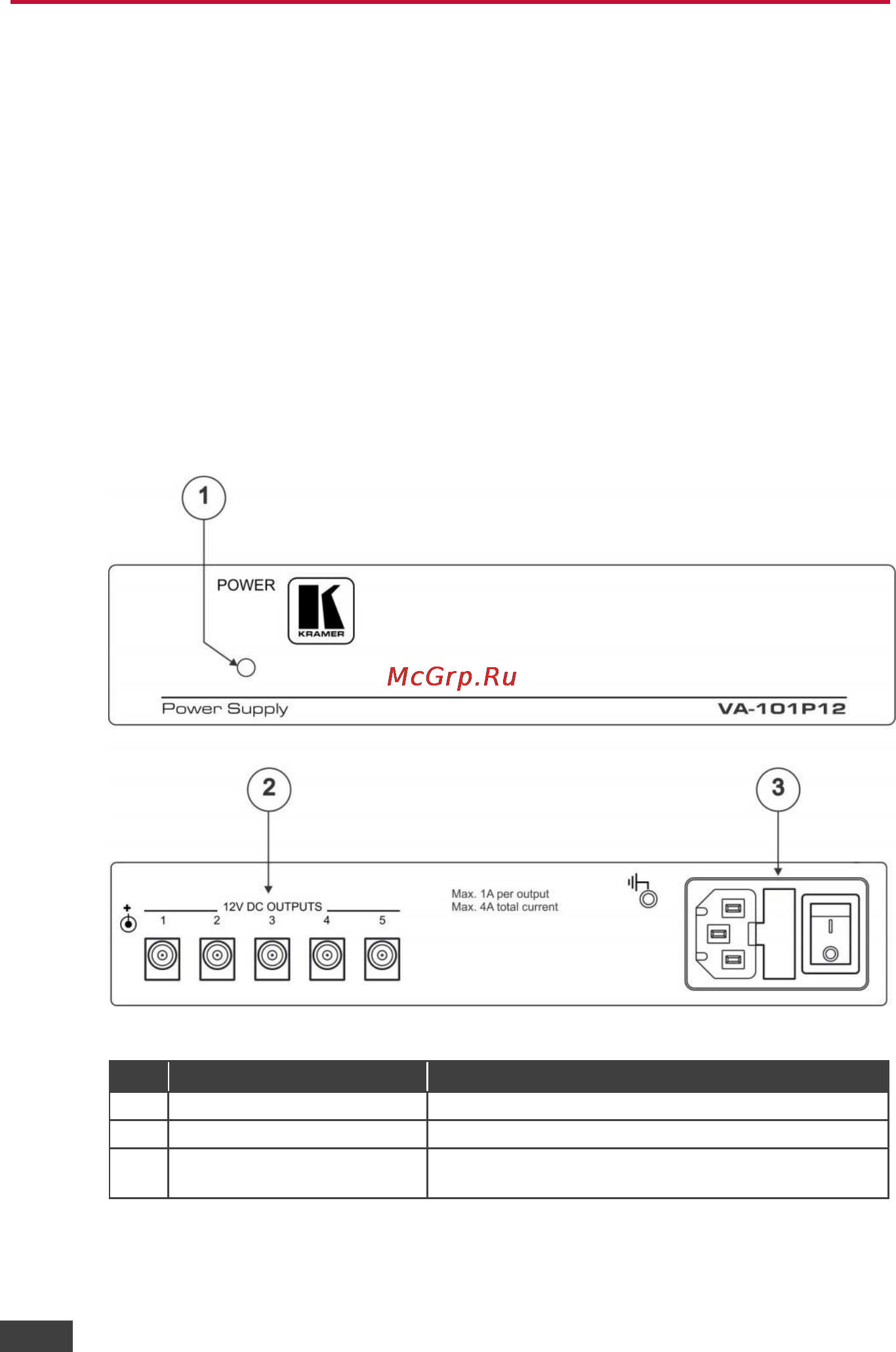

Figure 1: VA-101P12 5-Output 12V DC Power Supply

Feature

Function

Power LED

Illuminates when the power is turned on

12V DC Output Connectors

Supplies 12V DC to up to 5 devices

Power Connector, Fuse and

Switch

Connects to the mains supply and switches the

device on and off
