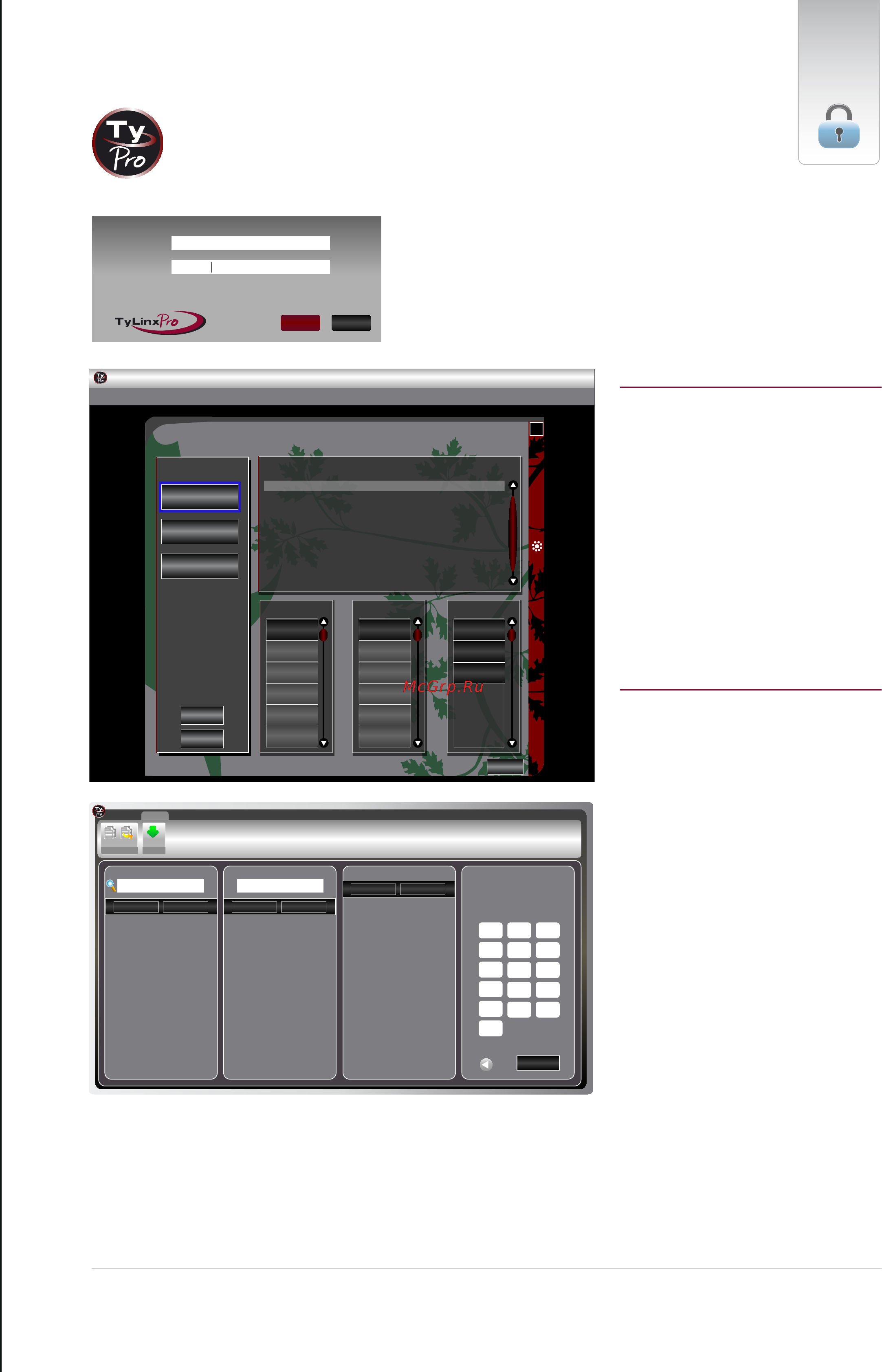

ADMIN CONSOLE

The Admin Console is designed for Administrative-level users who have

authority over system set-up and user permissions. The Admin Console

provides an intuitive interface for Administrators to congure the system

including all routing switchers and remote control panels. An Administrator

also uses the Admin Panel to setup additional users and grant them “Design”

or “Player” level access within the system. The Administrator can choose

which equipment or which functions users will be able to access.

Passwords:

admin

●●●●●●●

Communications Audio Gains Input Equalizers Room Grouping

Names

Salvos

Setup - Lassen 1616DS

EDITINGCLIPBOARD

Fill

Down

Copy

Paste

Destinations Sources Levels Categories

Number

1 Dst 1

2 Dst 2

3 Dst 3

4 Dst 4

5 Dist 5

6 Dist 6

7 Dist 7

8 Dist 8

9 Dist 9

10 Dist 10

11 Dist 11

12 Dist 12

13 Dist 13

14 Dist 14

15 Dist 15

16 Dist 16

1 Src 1

2 Src 2

3 Src 3

4 Src 4

5 Src 5

6 Src 6

7 Src 7

8 Src 8

9 Src 9

10 Src 10

11 Src 11

12 Src 12

13 Src 13

14 Src 14

15 Src 15

16 Src 16

1 SDI

2 AudLft

3 AudRgt

NumberName

Name

Number

Name

New Category

Scr

AUX

DIGI

EFF

NET

VTR

Dst

CAM

DMG

MON

NEWS

AUDIO

DBR

EDIT

SAT

File Account Conﬁgure Launch Help

TyLinx Pro - Console Player - localhost

Salvo Designer

Users

Take List - Test Router

Take on Destination Dst 1 to Source Src 1 on all Levels.

Take on Destination Dst 2 to Source Src 1 on all Levels.

Take on Destination Dst 3 to Source Src 1 on all Levels.

Take on Destination Dst 4 to Source Src 1 on all Levels.

Take on Destination Dst 5 to Source Src 1 on all Levels.

Take on Destination Dst 6 to Source Src 1 on all Levels.

Take on Destination Dst 7 to Source Src 1 on all Levels.

Take on Destination Dst 8 to Source Src 1 on all Levels.

Take on Destination Dst 9 to Source Src 1 on all Levels.

Take on Destination Dst 10 to Source Src 1 on all Levels.

Test 2

Test 3

Delete Salvo

Add Salvo

Destinations Sources Levels

Test 1

Dst 1 Src 1 Video

Aud 1

Aud 2

Src 2

Src 3

Src 4

Src 5

Src 6

Dst 2

Dst 3

Dst 4

Dst 5

Dst 6

Conguration Features:

Name sources, destinations and router

levels

Matrix mapping for splitting up levels

within a single input/output channel

Activity (“active”) status of routers,

levels and control panels

Programming and saving salvos

Signal equalization

Graphic rich audio table for intuitive

gain adjustment

Programming SCP control panels

User Access Features:

Create unlimited accounts with

username and password protection

Grant any of three levels of system

access: Admin, Design, or Player

Select specic equipment each user

may access

•

Sierra Video Advanced Software and Hardware Control Products 2010 • www.sierravideo.com
