Kramer VIA CAMPUS [11/85] Connecting via campus to a display

VIA Campus - Setting Up VIA Campus

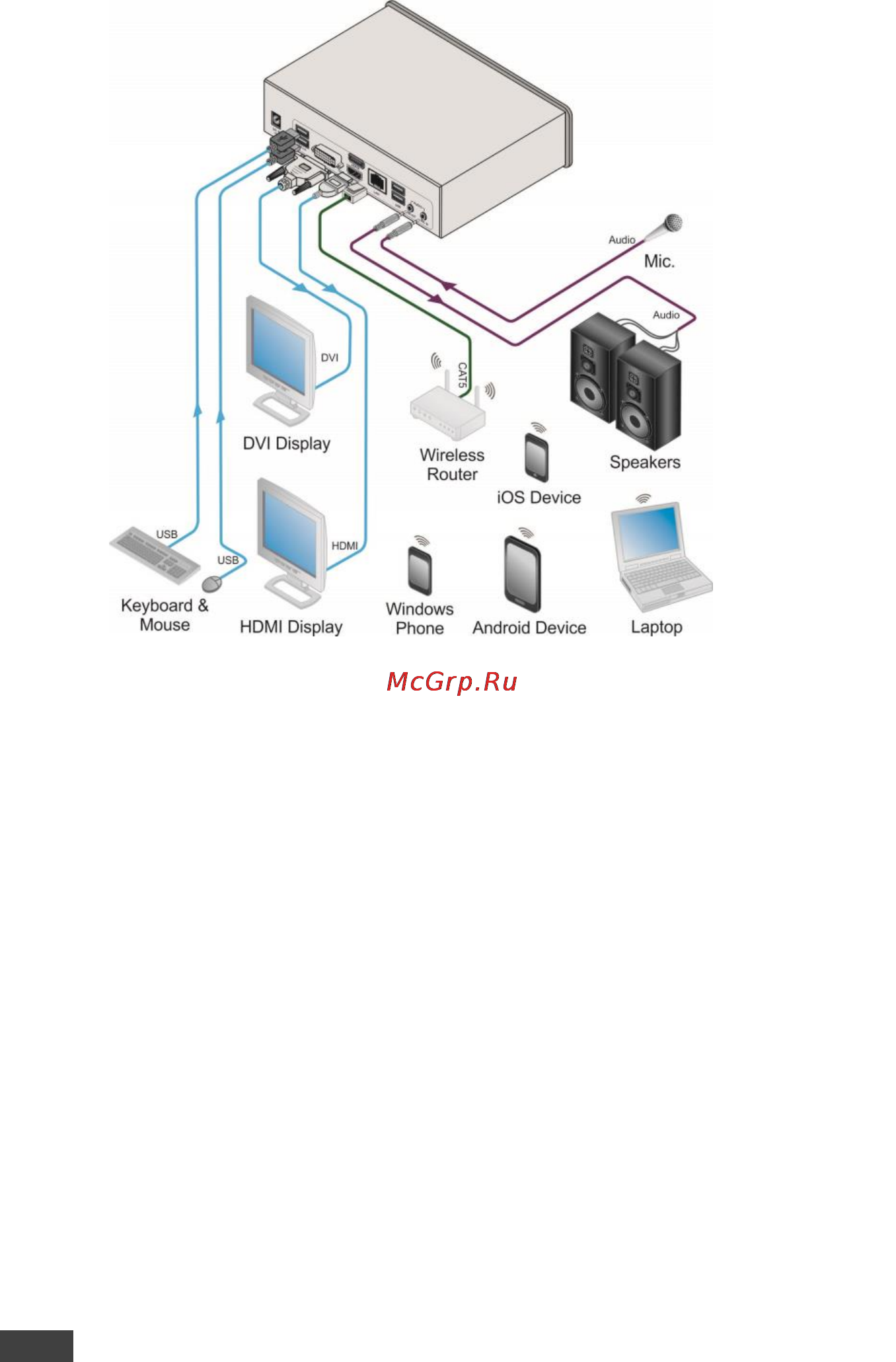

Figure 2: Connecting the VIA Campus Collaboration Device

4.1 Connecting VIA Campus to a Display

VIA Campus is equipped with dual display output connections.

 The HDMI connection is used with any compatible projection or direct-view

display, such as an LCD monitor. This connection carries embedded audio,

that routes and switches like any other HDMI connection

 The DVI-I connection is used with compatible projection or direct-view

displays. Unlike the HDMI port, the DVI-I jack does not carry embedded audio

and requires a separate audio connection

The VIA Campus internal video card reads the Extended Display Identification

Data (EDID) for any connected display and sets the optimum display resolution and

image refresh rate automatically through the HDMI connector.
