Euroboor ECO.30 [13/23] Turning machine on and off

ISSUE 1/Original version/OCT 2014

TURNING MACHINE ON AND OFF

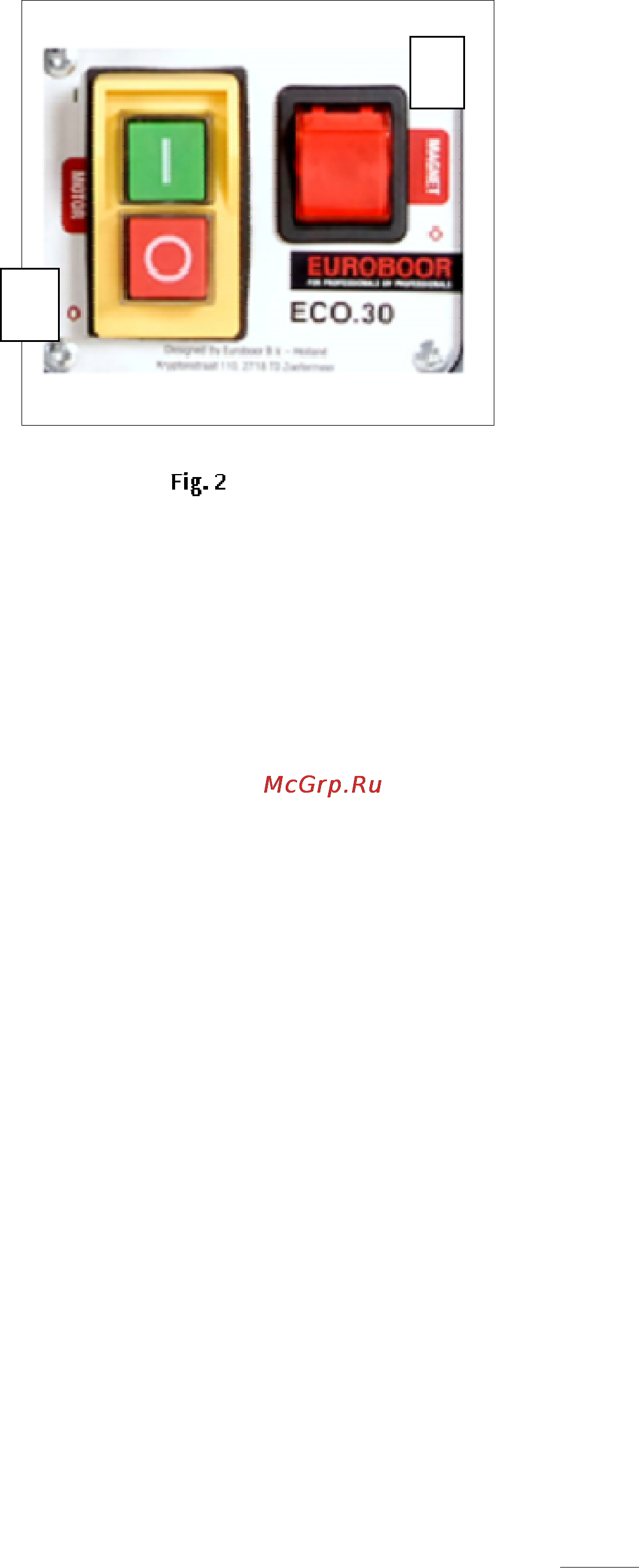

THE CONTROL PANEL

The control panel on your magnetic drilling machine is designed for maximum operating

facility and safety.

- The Motor Switch:

This switch is used to switch the motor

unit ON and OFF;

- The Magnet Switch:

This switch is used to switch the magnet On

and Off.

In order to operate properly, the machine has to be turned on following the procedure as described

below.

ACTIVATING THE MAGNET

Connect the machine to the mains/work piece. To activate the magnet, press the red button

(Fig. 2 -2). The switch will be lit (red). To deactivate the magnet, press the same button (Fig. 2 -2)

again.

TURNING THE MOTOR ON AND OFF

The motor unit can only be switched ON when the magnet is activated. To turn the motor ON, by

pressing the green button with marking “I”(Fig. 2 - 1). To switch the motor OFF, press the red button

with marking “O”(Fig. 2 - 1).
