Smeg SRV876AV9 [12/18] Regulation of primary air

Instructions for the installer

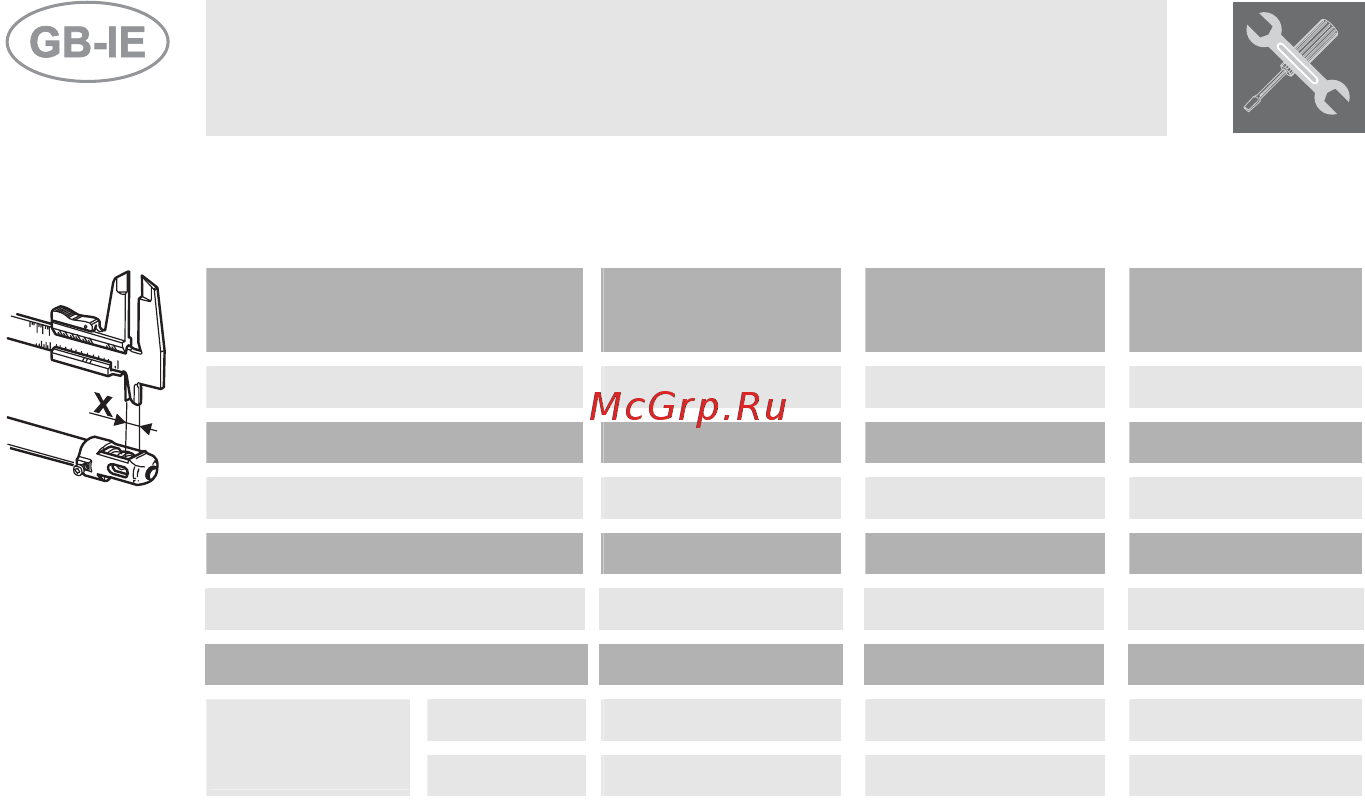

5.5 Regulation of primary air

Referred to distance “X” in mm.

Burner

G20

20 mbar

G30/G31 G110

30/37 mbar 8 mbar

Auxiliary (1) 1.5 1.0 0.5

Semirapid (2) 1.5 1.5 0.5

Rapid (3) 1.0 1.5 1.0

Rapid large (4) 2.5 10.0 1.5

Fish pan (7) 2.0 2.5 1.0

Ultra rapid (5) 2.0 2.5 1.5

Internal 3 6.0 1.0

Double

crown (6)

External 3.0 10.0 5.0

To identify the burners on your hob, refer to the drawings in point “6.3 Arrangement of burners

on hob “
