DAB PUMPS reserves the right to make modifications without notice.
16

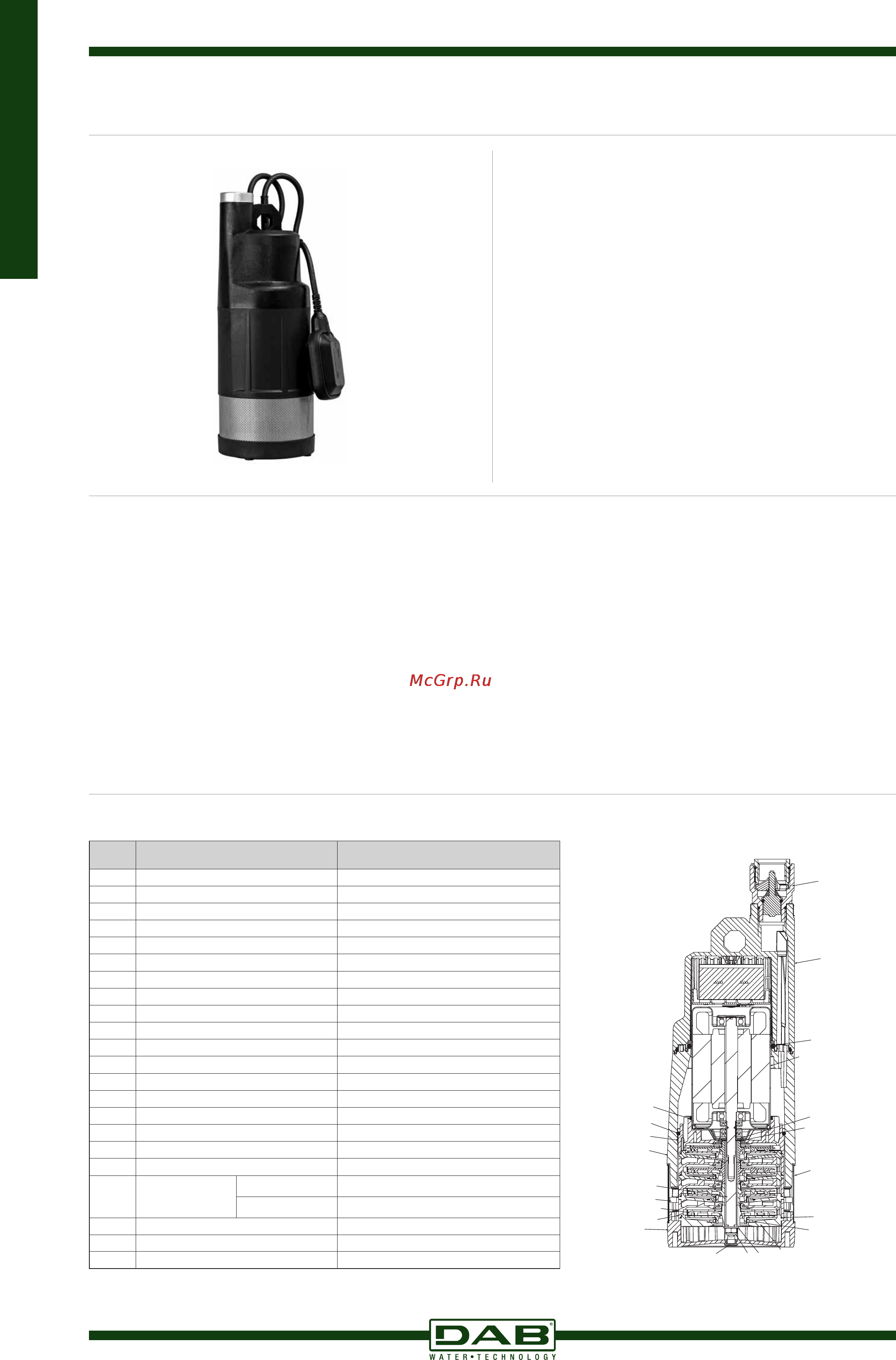

SUBMERSIBLE PUMPS
DIVER 6
6” MULTI-IMPELLER SUBMERSIBLE ELECTRIC PUMPS
TECHNICAL DATA
Operating range: from 1 to 5,4 m
3
/h with head up to 46 metres.
Pumped liquid: clean, free of solids and abrasives, non-aggressive.
Liquid temperature range: from 0 °C to +35 °C.
Max. immersion depth: 12 metres.
Motor protection class: IP 68.
Motor protection rating: F.
Installation:
fixed or portable, vertical position.
Operation: manual or automatic with float switch (continuous duty with
totally submerged pump).
Discharge port diameter: 1”.
Pump maximum diameter: 150 mm.
APPLICATIONS
Multi-impeller submersible pumps ideal for use in rain water systems and watering networks, to pump water from cisterns, ponds, and wells, and for
other applications requiring high pressure. Available with 2, 3, or 4 impellers.
Suitable for pumping clean waters.
Very efficient motor cooling, allowing the pump to also be used only partially submerged. Automatic version with float switch for automatic pump start
and stop. Fitted with power supply cable with plug, non return valve and 4-level connector.
CONSTRUCTION FEATURES OF THE PUMP
Corrosion and oxidation resistant material. Stainless steel debris strainer.
CONSTRUCTION FEATURES OF THE MOTOR
Submersible type continuous duty asynchronous motor.
Thermal overheating protection.
Wear-resistant motor shaft.
N.
PARTS MATERIALS
1 BASE TECHNOPOLYMER
2 PLUG TECHNOPOLYMER
3 NUT A2 UNI 7474 STAINLESS STEEL
4 WASHER A2 STAINLESS STEEL
5 FINAL DIFFUSER CAP TECHNOPOLYMER
6 THRUST RING TECHNOPOLYMER
7 OR RING NBR
8 DIFFUSER TECHNOPOLYMER
9 IMPELLER TECHNOPOLYMER/AISI 304 STAINLESS STEEL
10 SPACER TECHNOPOLYMER
11 STRAINER RING AISI 304 STAINLESS STEEL
12 SHAFT AISI 303 STAINLESS STEEL
13 BODY TECHNOPOLYMER
14 DIFFUSER SUPPORT TECHNOPOLYMER
15 OR RING NBR
16 OR RING NBR
17 WASHER A2 STAINLESS STEEL
18 WASHER A2 STAINLESS STEEL
19 MOTOR
CASE ALUMINIUM
ROTOR SHAFT AISI 416 STAINLESS STEEL
20 OR RING NBR
21 COVER TECHNOPOLYMER
22
NON-RETURN VALVE TECHNOPOLYMER/NBR/AISI 302 STAINLESS STEEL
MATERIALS
1
3
2
4
5
6
7
8
9
10
11
12
15
13
14
16
17
19
20
21
18
22
