116
7. Maintenance

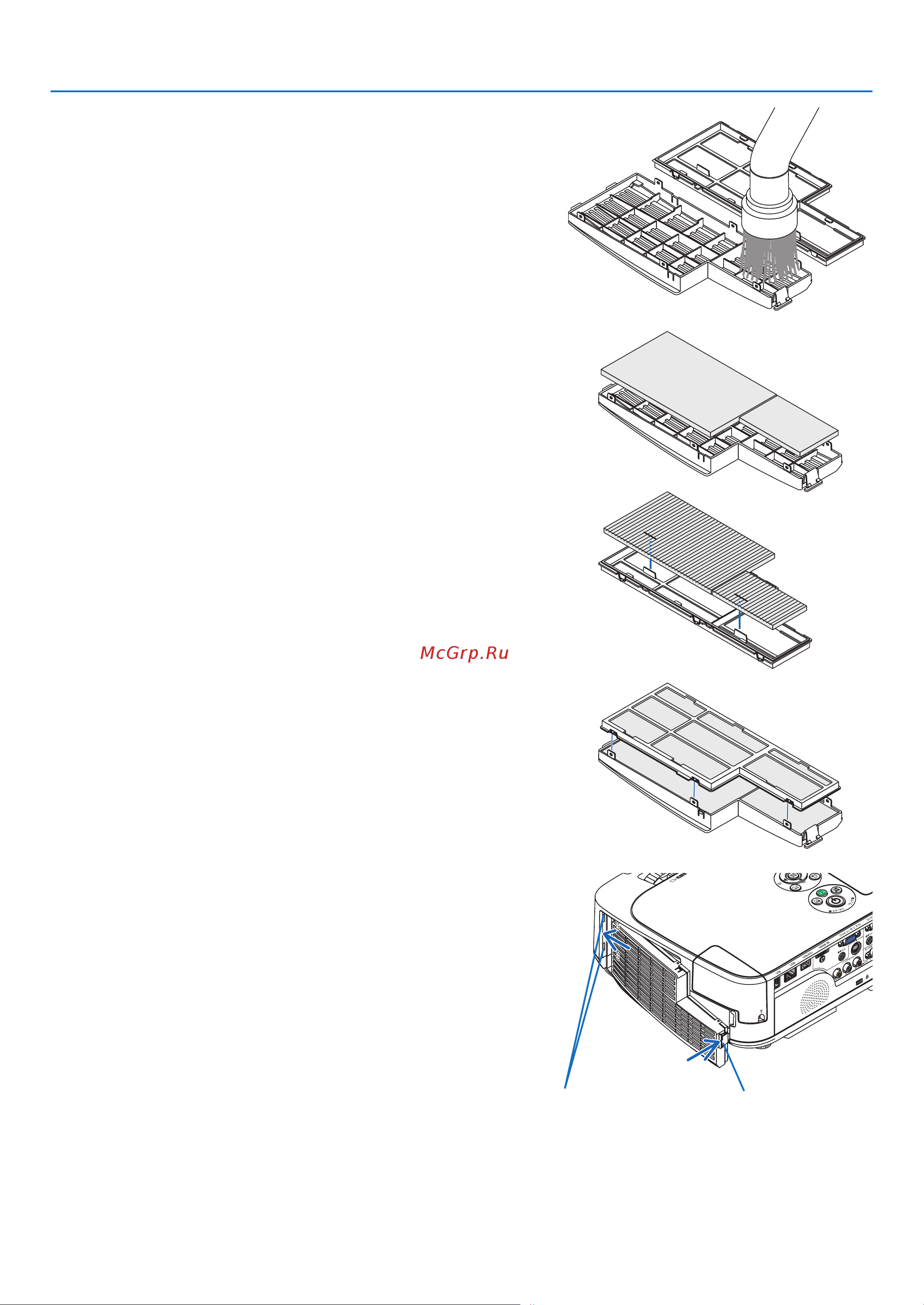

4. Removedustfromthelterunitandtheltercover.
Clean both outside and inside.
5. Attachthefourlterstothelterunitandtheltercover.
Filter unit: Attach two hard honeycomb filters (large and small)
to the filter unit.
Filter cover: Attach two soft accordion filters (large and small)
to the filter cover.
The accordion filter has slits on it. Align these slits with the
protrusions of the filter cover.
6. Attachtheltercoverbacktothelterunit
Align the filter unit with the filter cover and push the six protru-
sions into place.
• Makesureallsixmountingpointsarealignedproperly.
7. Putthelterunitbacktotheprojectorcabinet.
Insert two catches of the tip of the filter unit into the groove of
the cabinet, and push the button to close the filter unit.
• Pushthelterunituntilitclicksintoplace.
8. Clearthelterusagehours.
Plug the power cord into the wall outlet, and then turn on the
projector.
From the menu, select [RESET] → [CLEAR FILTER HOURS].
(→ page 97)
The interval time to clean the filters is set to [OFF] at time of
shipment. When using the projector as it is, you do not clear
the filter usage
