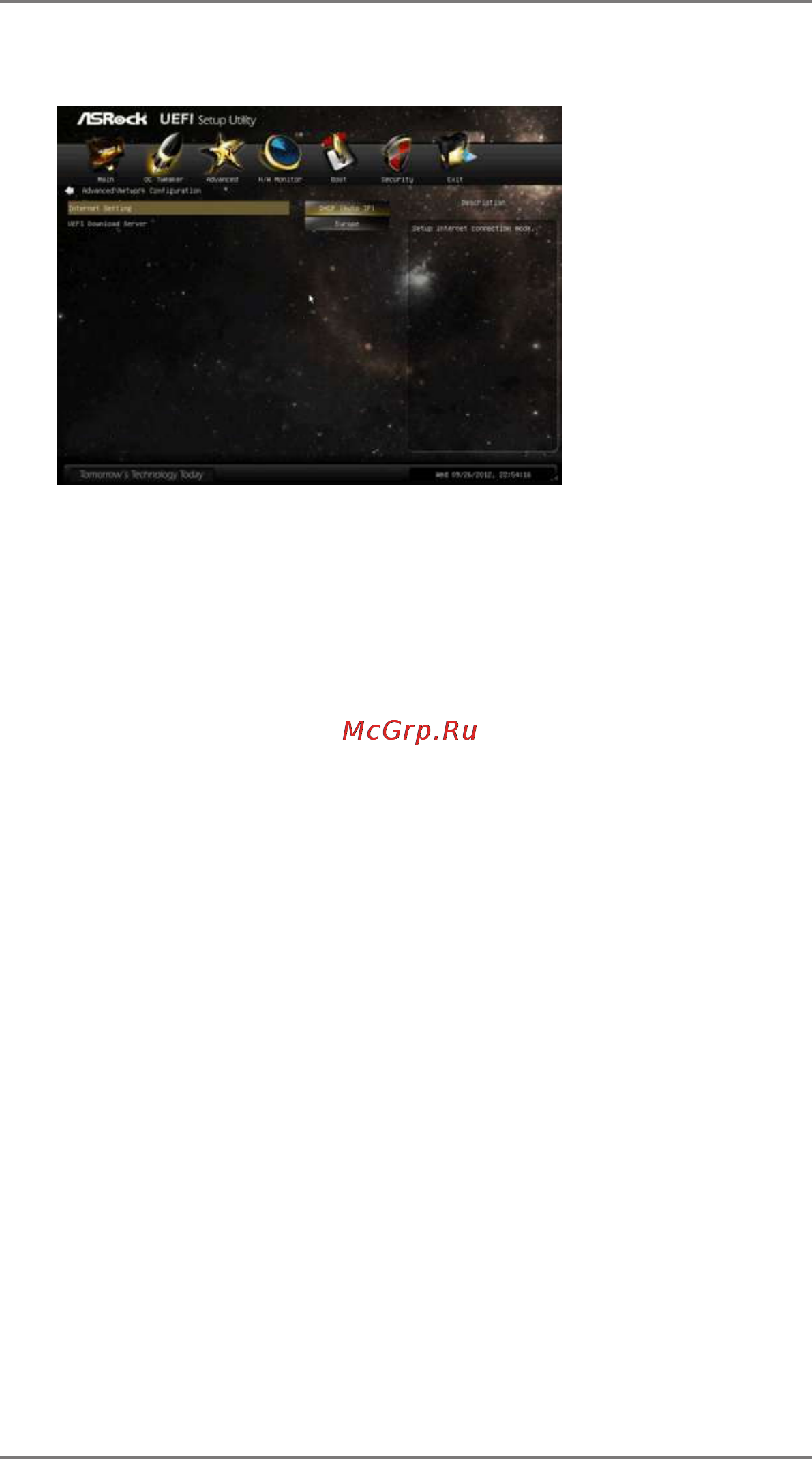

ASRock 970 pro3 r2.0 [57/70] Network configuration
![ASRock 970 pro3 r2.0 [57/70] Network configuration](/views2/1159412/page57/bg39.png)
57
3.4.8 Network Conguration
Internet Setting
Use this item to set up the internet connection mode. Conguration
options: [DHCP (Auto IP)] and [PPPOE].
UEFI Download Server
Use this item to select UEFI rmware download server for Internet Flash.
Conguration options: [Asia], [Europe], [USA] and [China].
