37
English
Z97 Extreme6/ac / Z97 Extreme6

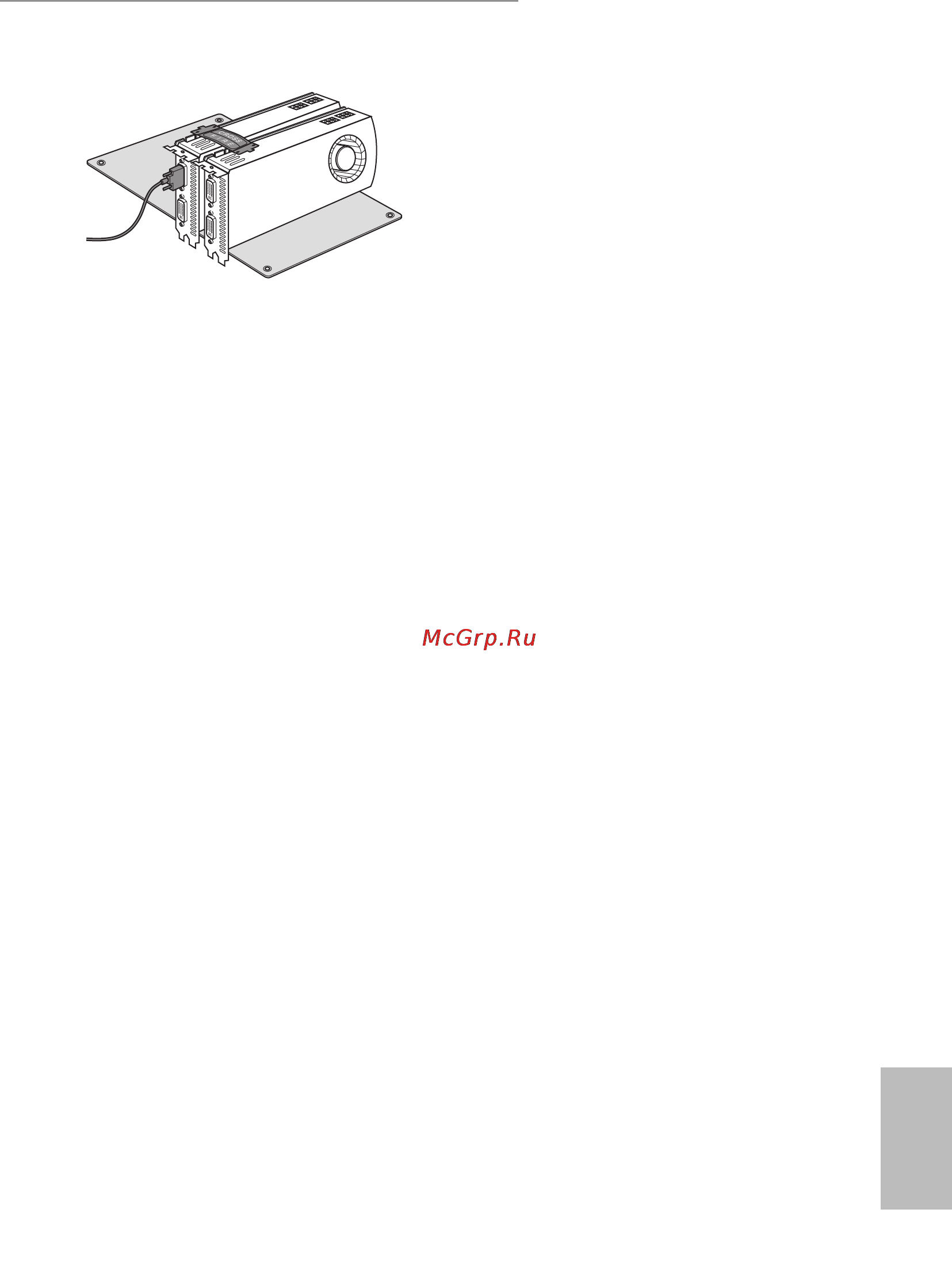

Step 3
Connect a VGA cable or a DVI cable to the
monitor connector or the DVI connec-
tor of the graphics card that is inserted to
PCIE2 slot.
