ASRock z97 extreme6 [95/114] Intel rapid start technology
![ASRock z97 extreme6 [95/114] Intel rapid start technology](/views2/1159423/page95/bg5f.png)
89
English
Z97 Extreme6/ac / Z97 Extreme6

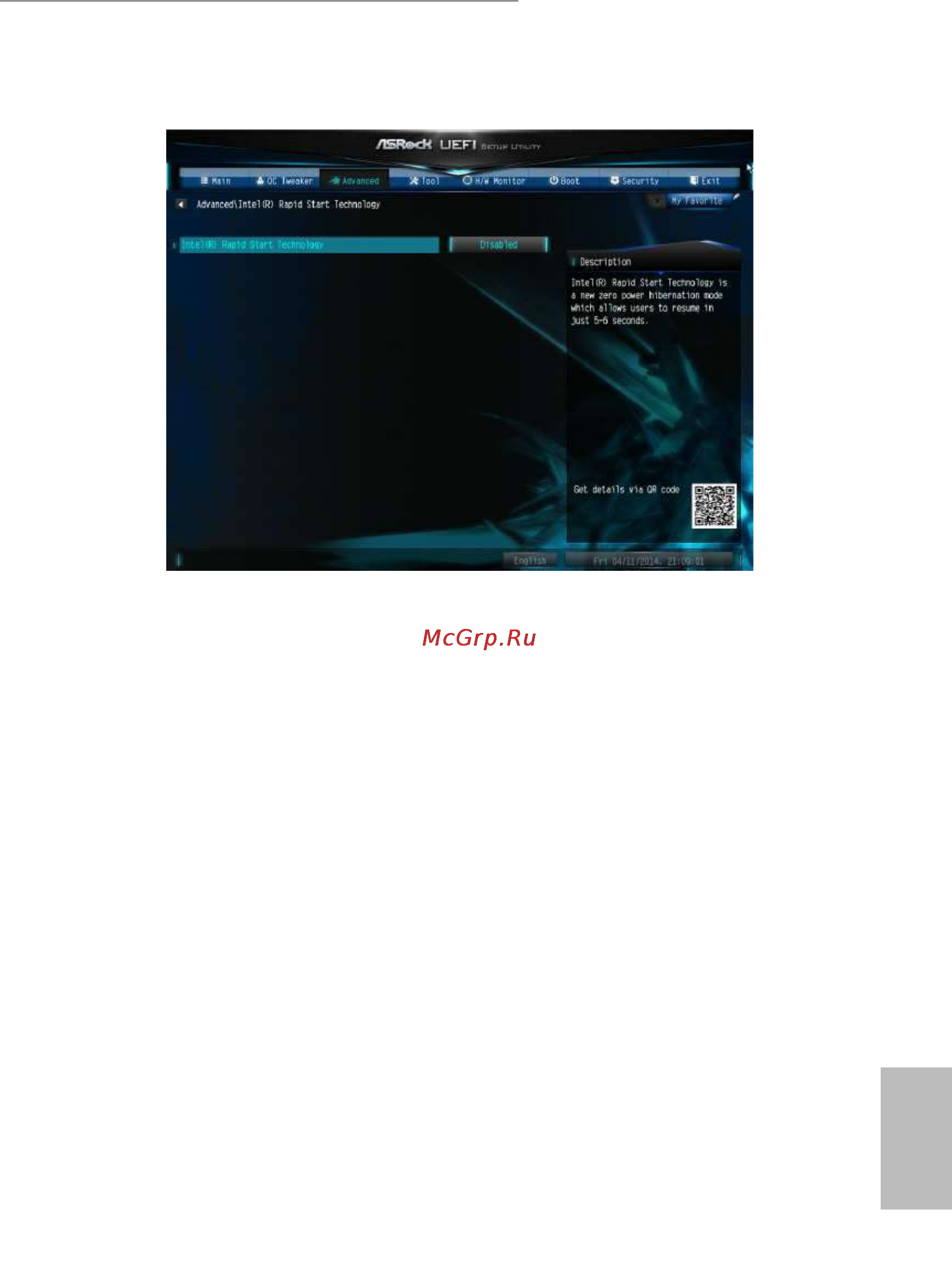

4.4.4 Intel® Rapid Start Technology
Intel
®
Rapid Start Technology
Intel® Rapid Start Technology is a new zero power hibernation mode which allows
users to resume in just 5-6 seconds.
