Fatal1ty H97 Killer Series
85
English
4.4.6 Intel® Thunderbolt™

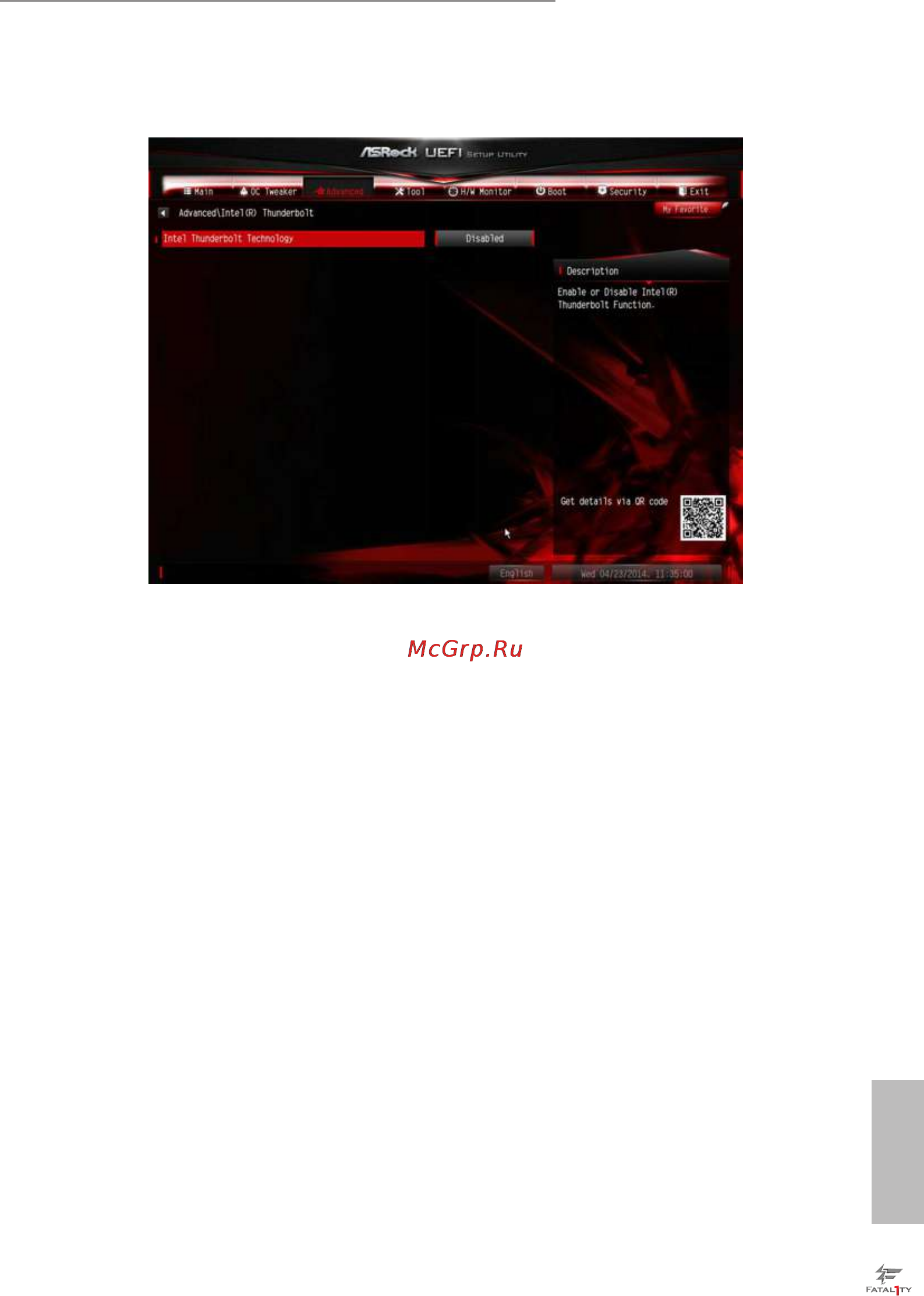

Intel Thunderbolt™ Technology
Enable or disable the Intel® underbolt
TM
function.
Security Level
Select Legacy to skip the Windows certication checking process for underbolt
TM
devices. Select Unique ID for checking the Windows certication, and show
warning messages if the devices aren't certied. Or select DP++ to support DP 1.2.
Wake From Thunderbolt
™
Devices
Allow the system to be waked up by underbolt
TM
devices.
Ignore Thunderbolt™ Option Rom
Enable to skip underbolt
TM
Option ROM during POST for faster boot speed.
TBT Device IO resource Support
Enable IO Resource Support if your older underbolt devices have trouble working
properly.
Thunderbolt™ PCIe Cache-line Size
Congure the cache-line size of the underbolt PCIe subtree.
