ASRock d1800b-itx [40/52] Intel smart connect technology
![ASRock d1800b-itx [40/52] Intel smart connect technology](/views2/1159436/page40/bg28.png)
36
English

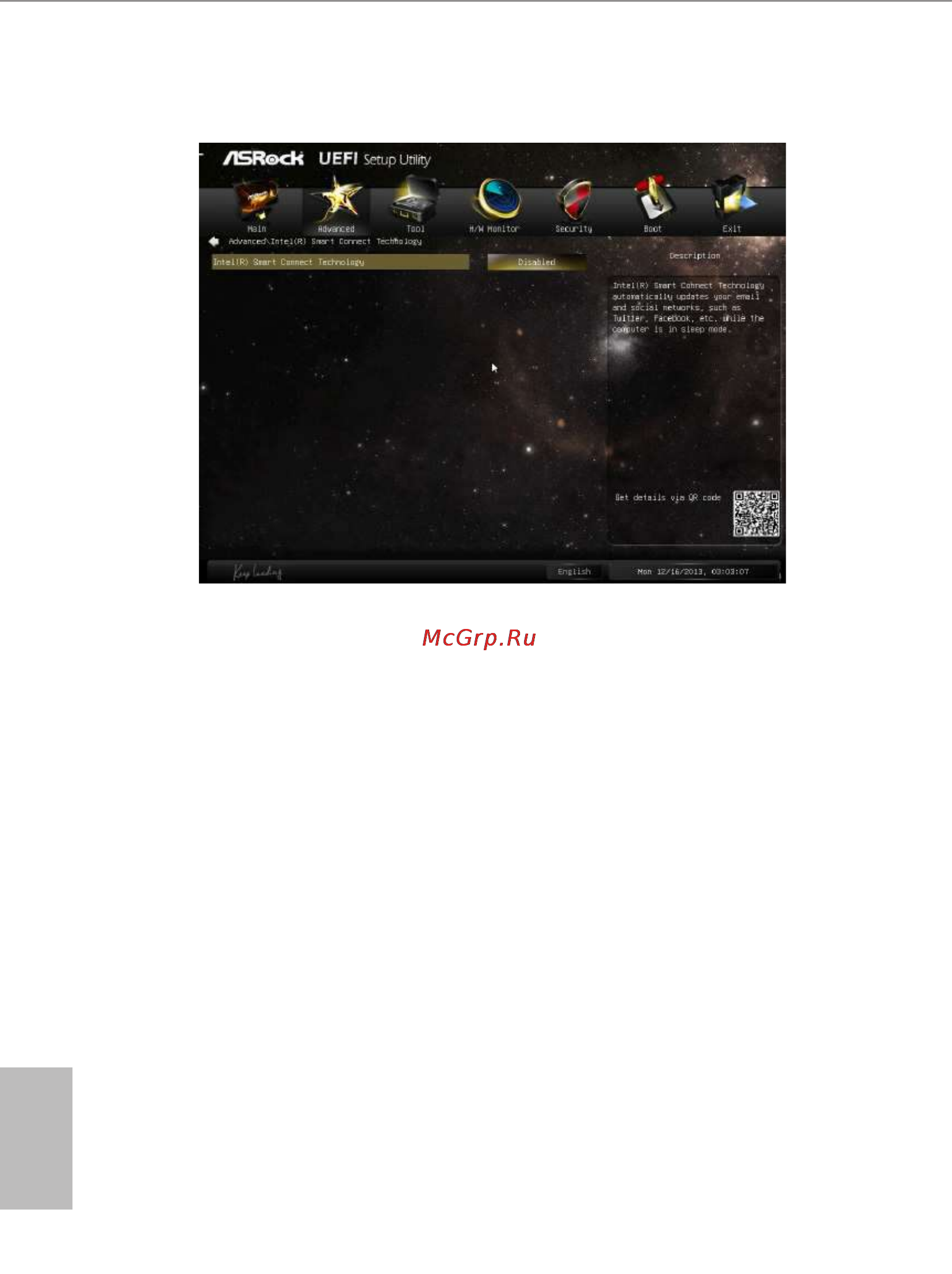

4.3.4 Intel® Smart Connect Technology
Intel
®
Smart Connect Technology
Intel
®
Smart Connect Technology automatically updates your email and social
networks, such as Twitter, Facebook, etc. while the computer is in sleep mode.
