42
English

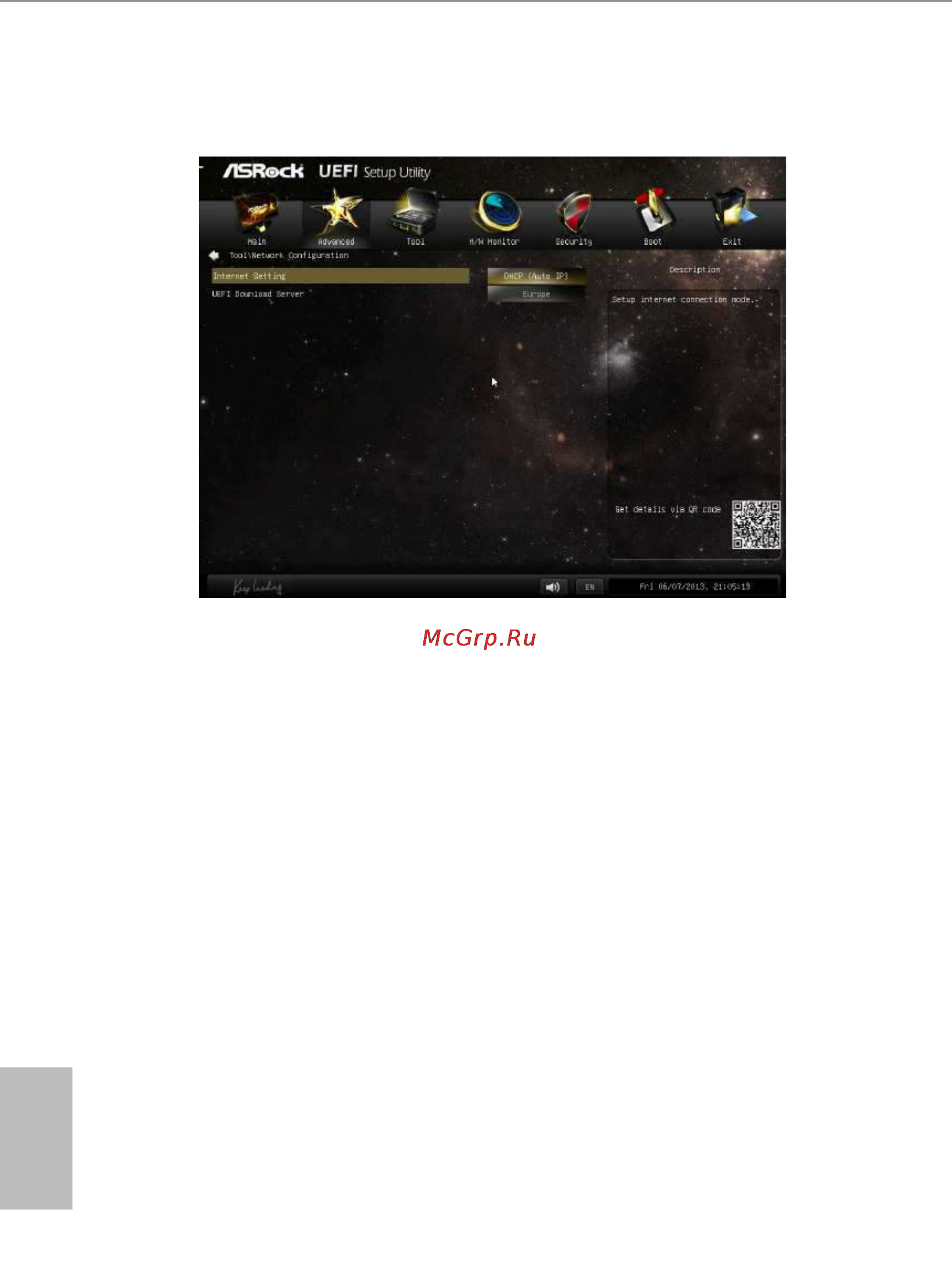

Network Conguration
Use this to congure internet connection settings for Internet Flash.
Internet Setting
Select an internet connection mode.
UEFI Download Server
Select a server to download the UEFI rmware.
