English
Fatal1ty X99X Killer Series
9

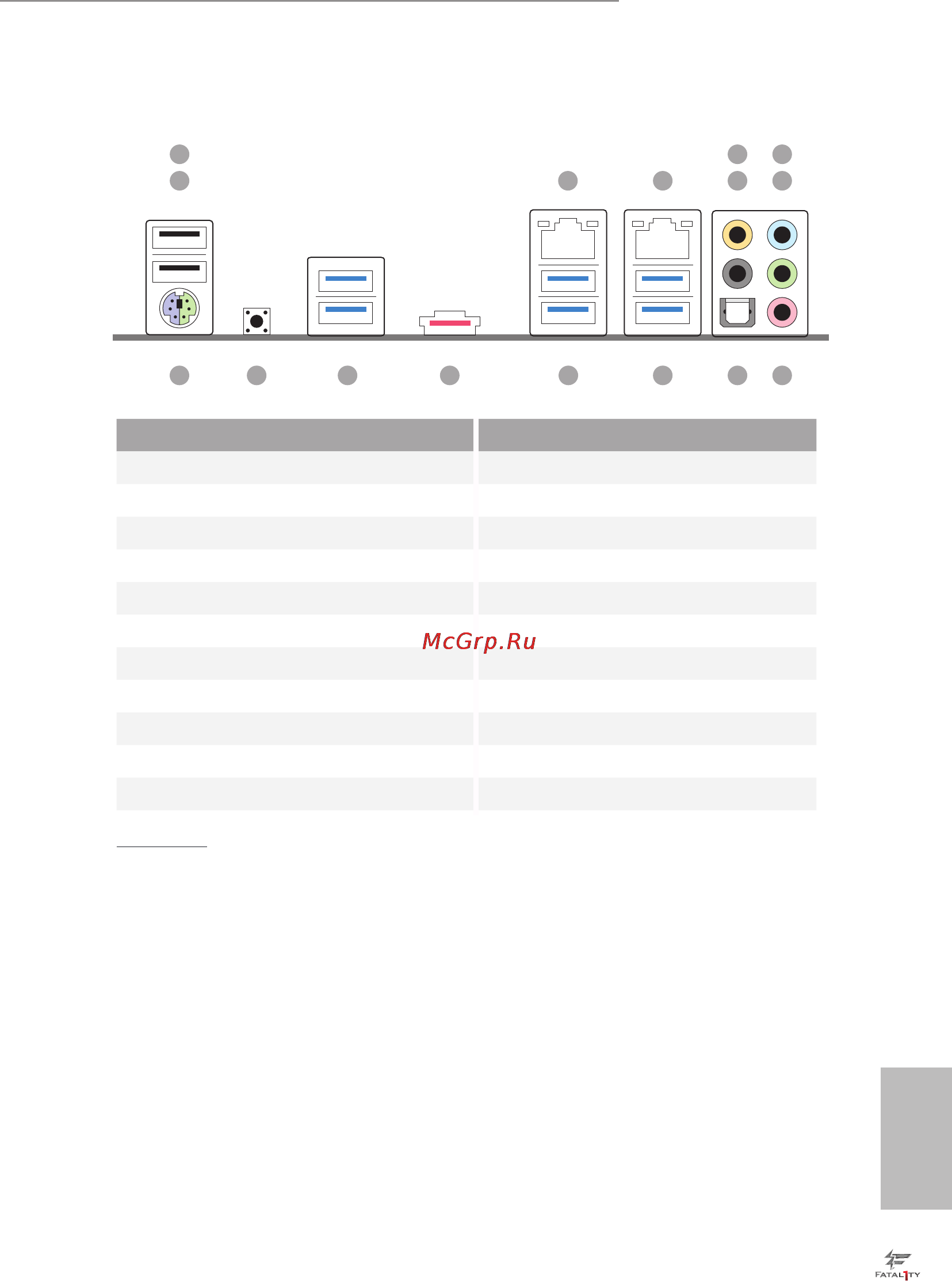

1.4 I/O Panel
No. Description No. Description
1 Fatal1ty Mouse Port (USB1) 10 Optical SPDIF Out Port
2 USB 2.0 Port (USB2) 11 USB 3.0 Ports (USB3_34)
3 LAN RJ-45 Port (ASMedia ASM1074 hub)
(Qualcomm® Atheros® Killer
TM
E2200) 12 USB 3.0 Ports (USB3_12)
4 LAN RJ-45 Port (ASMedia ASM1074 hub)
(Intel® I218V)* 13 eSATA Connector***
5 Central / Bass (Orange) 14 USB 3.0 Ports (USB31_12)
6 Rear Speaker (Black) (ASMedia ASM1042)
7 Line In (Light Blue) 15 Clear CMOS Switch
8 Front Speaker (Lime)** 16 PS/2 Mouse/Keyboard Port
9 Microphone (Pink)
CAUTION:
For operating system installation, be sure to plug your USB ash drive into the USB 2.0
Ports (USB12).
16 9101112131415
43 6
5
2
1
8
7
