Installation/ Connections

First complete the electrical connections, and then check them for correctness. If you are

not confident working with electrical wiring, removing and reinstalling interior panels,

carpeting, dashboards or other components of your vehicle, please call your dealer in order

to have the unit professionally installed.

Before installing the unit, please remove two screws on the top.

Before the installation

1. Remove the old unit from the dashboard.

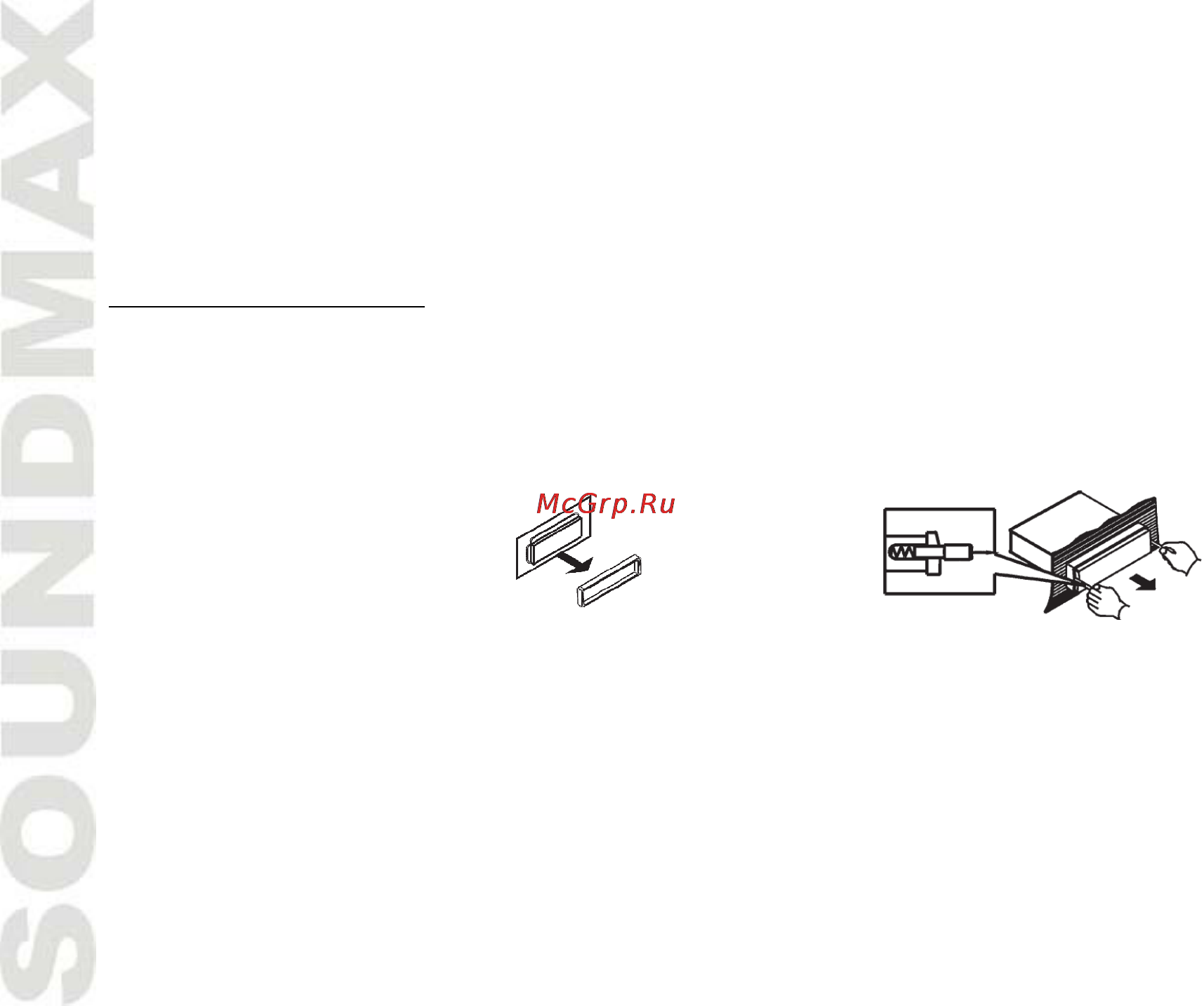

 Remove the outer trim frame.

 Insert the keys supplied with the unit into both sides of the unit as shown in figure below

until they click. Pull to remove the old unit from the dashboard. Do not disconnect wires

at this time!

2. Mark polarity of the speaker wires.

Marking the polarity of the speaker wires will make it easier to connect the existing speakers

to your unit. Consult wiring diagram of existing head unit before disconnecting any wires. If

you are not positive of the polarity of the existing wires from the speakers to the head unit,

install new wires.

 While the old unit is playing, disconnect the wires from one speaker.

 Take a length of masking tape and fold it around the wire so it forms a flag.
