46
English

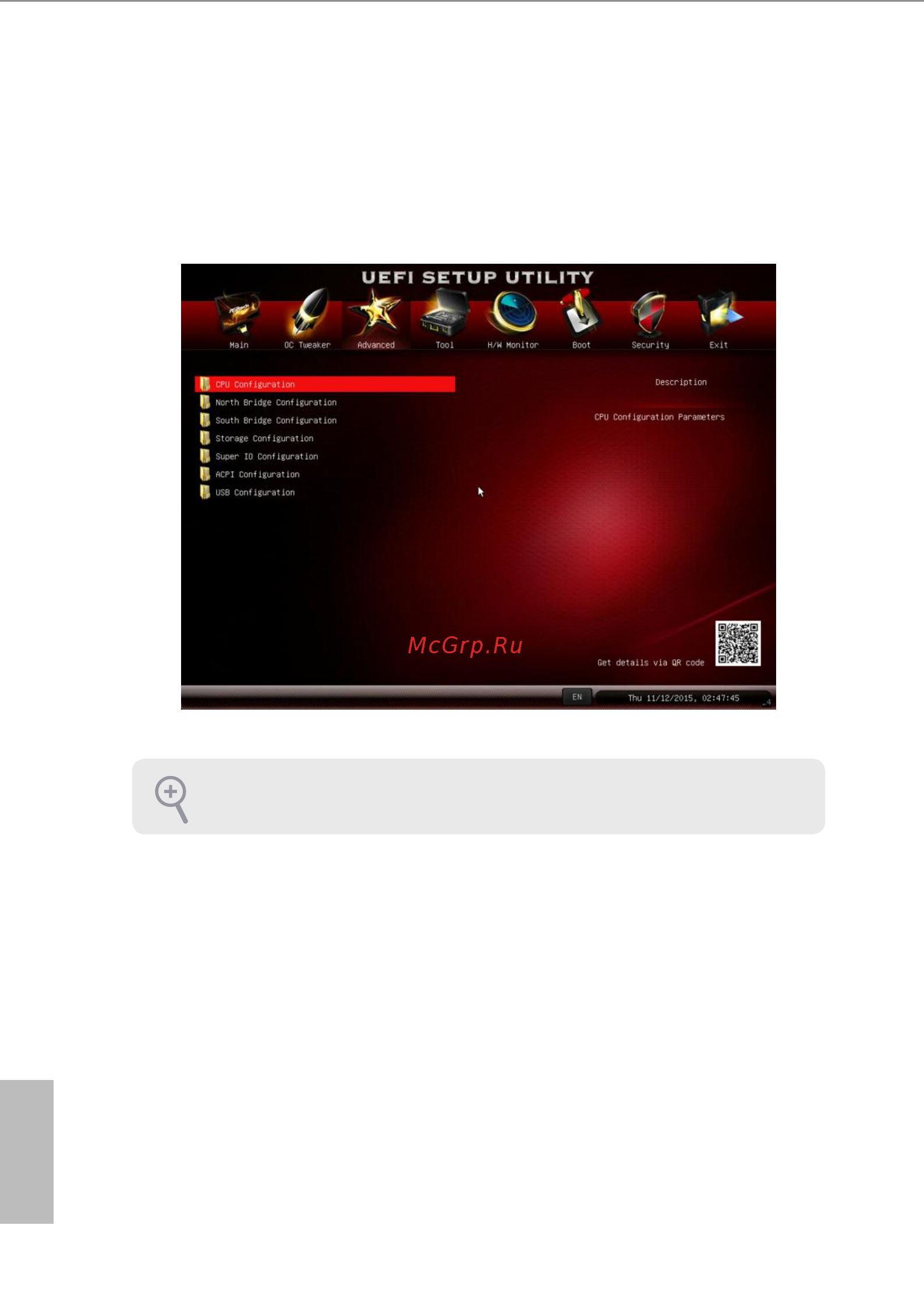

4.4 Advanced Screen
In this section, you may set the congurations for the following items: CPU
Conguration, North Bridge Conguration, South Bridge Conguration, Storage
Conguration, Super IO Conguration, ACPI Conguration and USB Congura-
tion.
Setting wrong values in this section may cause the system to malfunction.
