15
English

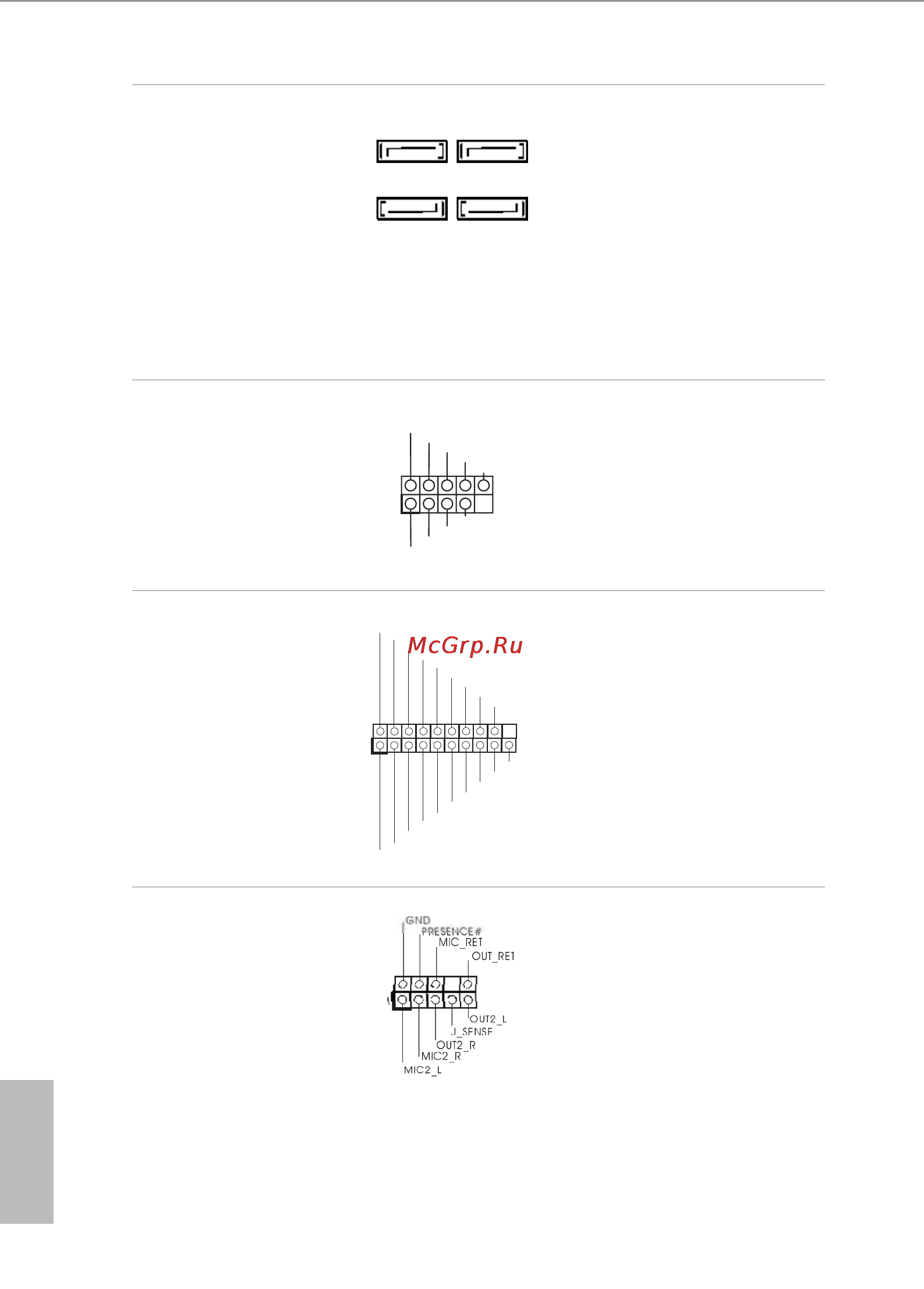

Serial ATA3 Connectors
(SATA3_1:
see p.5, No. 8)
(SATA3_2:
see p.5, No. 9)
(SATA3_A1:
see p.5, No. 15)
(SATA3_A2:
see p.5, No. 14)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB_3_4)
(see p.5, No. 7)
(9-pin USB_5_6)
(see p.5, No. 5)
Besides two USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Header
(19-pin USB3_3_4)
(see p.5, No. 4)
Besides four USB 3.0
ports on the I/O panel,
there is one header on this
motherboard. is USB
3.0 header can support
two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.5, No. 17)
is header is for
connecting audio devices
to the front audio panel.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
ID
In tA_P_D+
In tA_P_D-
GN D
In tA_P_SS TX+
In tA_P_SS TX-
GN D
In tA_P_SS RX+
Vb us
In tA_P_D+
In tA_P_D-
GN D
In tA_P_SS TX+
In tA_P_SS TX-
GN D
In tA_P_SS RX+
In tA_P_SSRX -
Vb us
In tA_P_SSRX -
SATA3_A1 SATA3_1
SATA3_A2 SATA3_2
