Asus rog maximus vii formula/watch dogs [168/224] Chapter 4

4-16

Chapter 4: Software support

Chapter 4

Viewing the SPD information

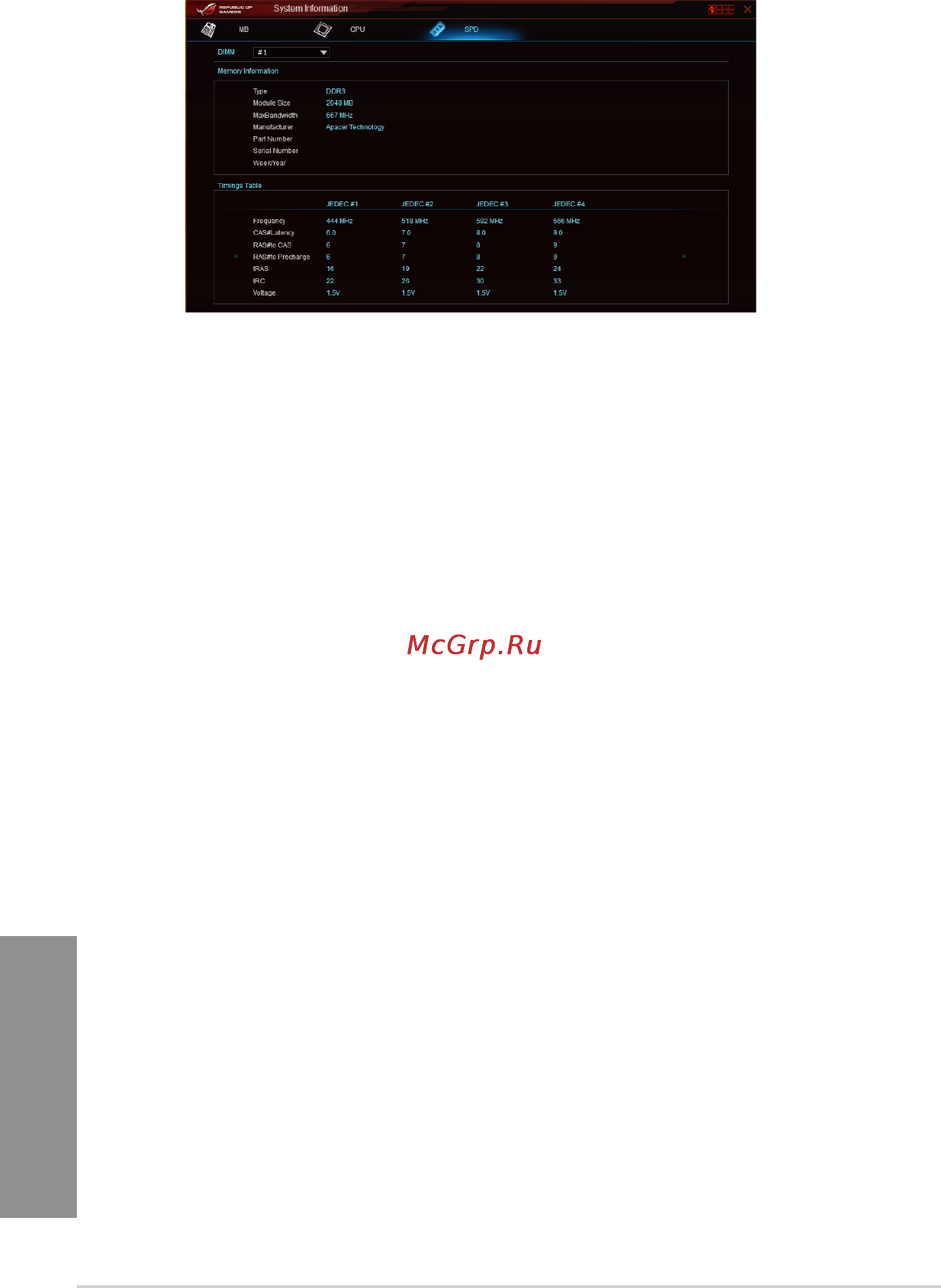

ClickortaptheSPDtabtoviewthememory’sinformation.
