ASUS Z9PE-D8 WS 6-15

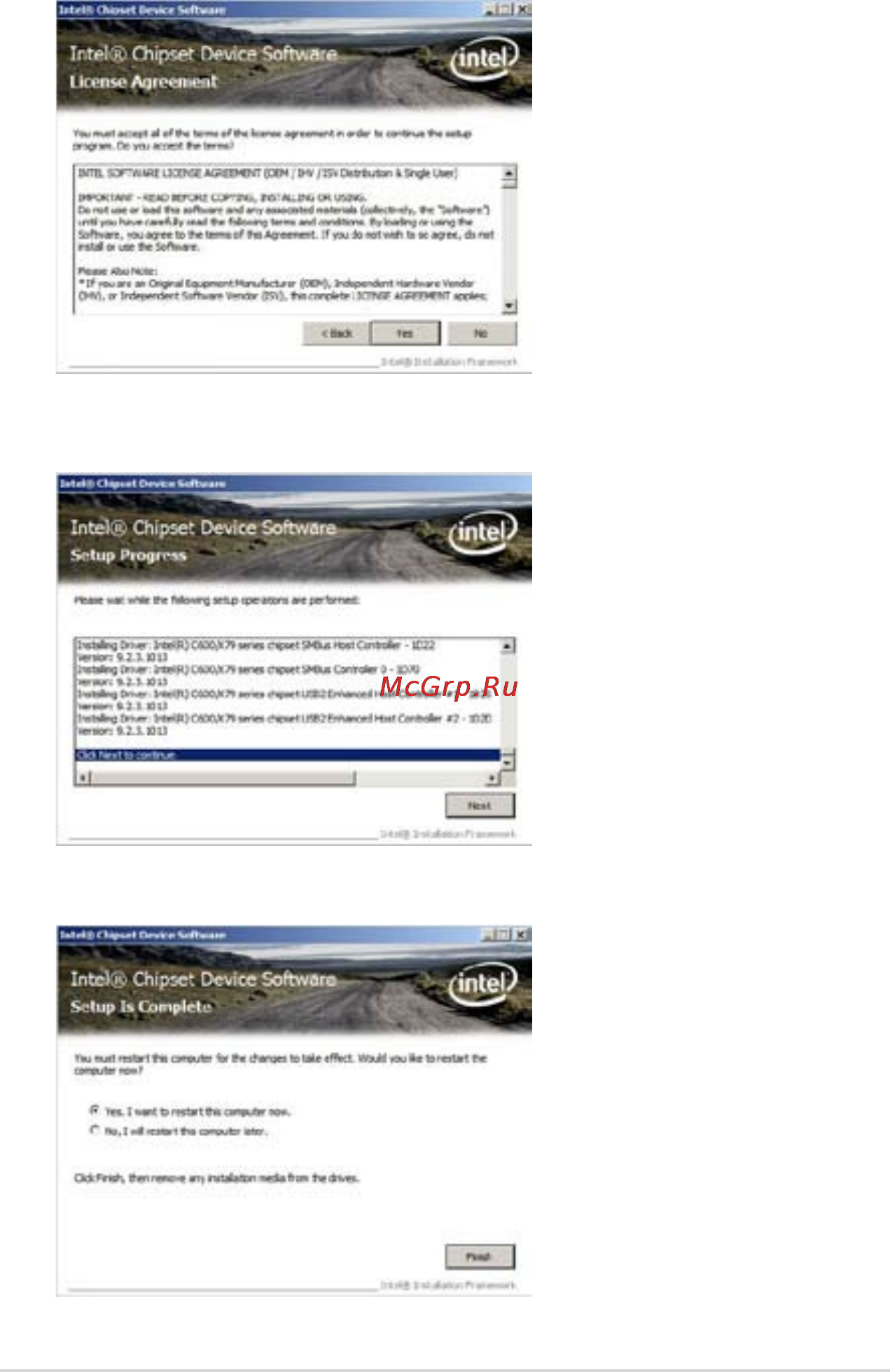

5. Select
Yes
to accept the terms of the
License Agreement
and continue the
process.
6. Read the
Readme File Information
and press
Next
to continue the
installation.
7. Toggle
Yes, I want to restart the computer npw
and click
Finish
to
complete the setup process.
