7-20

Chapter 7: Driver installation

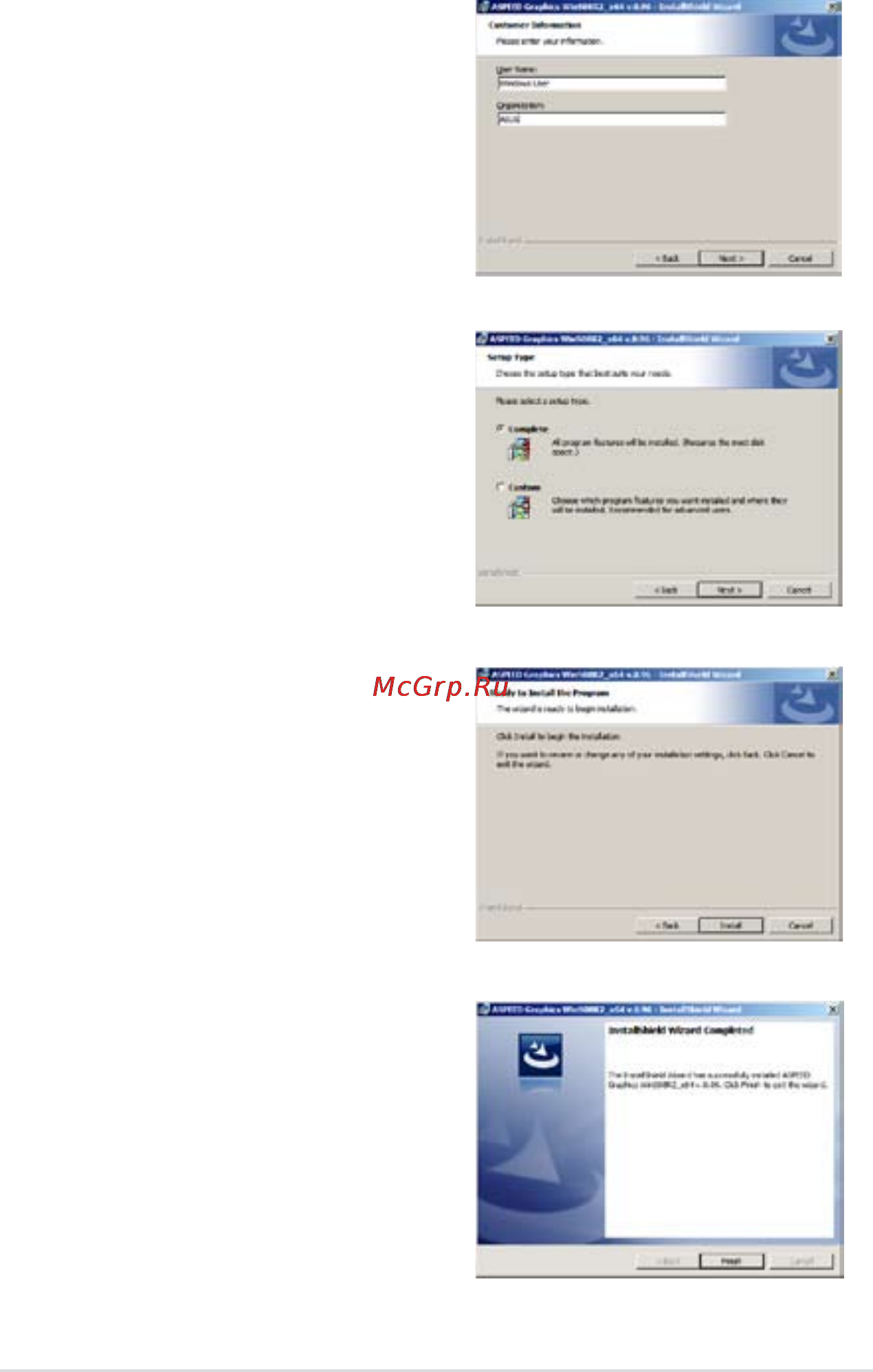

6. Key in a username and organization

then click Next.

7. Select Complete in the Setup Type

window then click Next.

8. Click Install to begin the installation.

9. When done, click Finish.
