7-23

ASUS RS100-E8-PI2

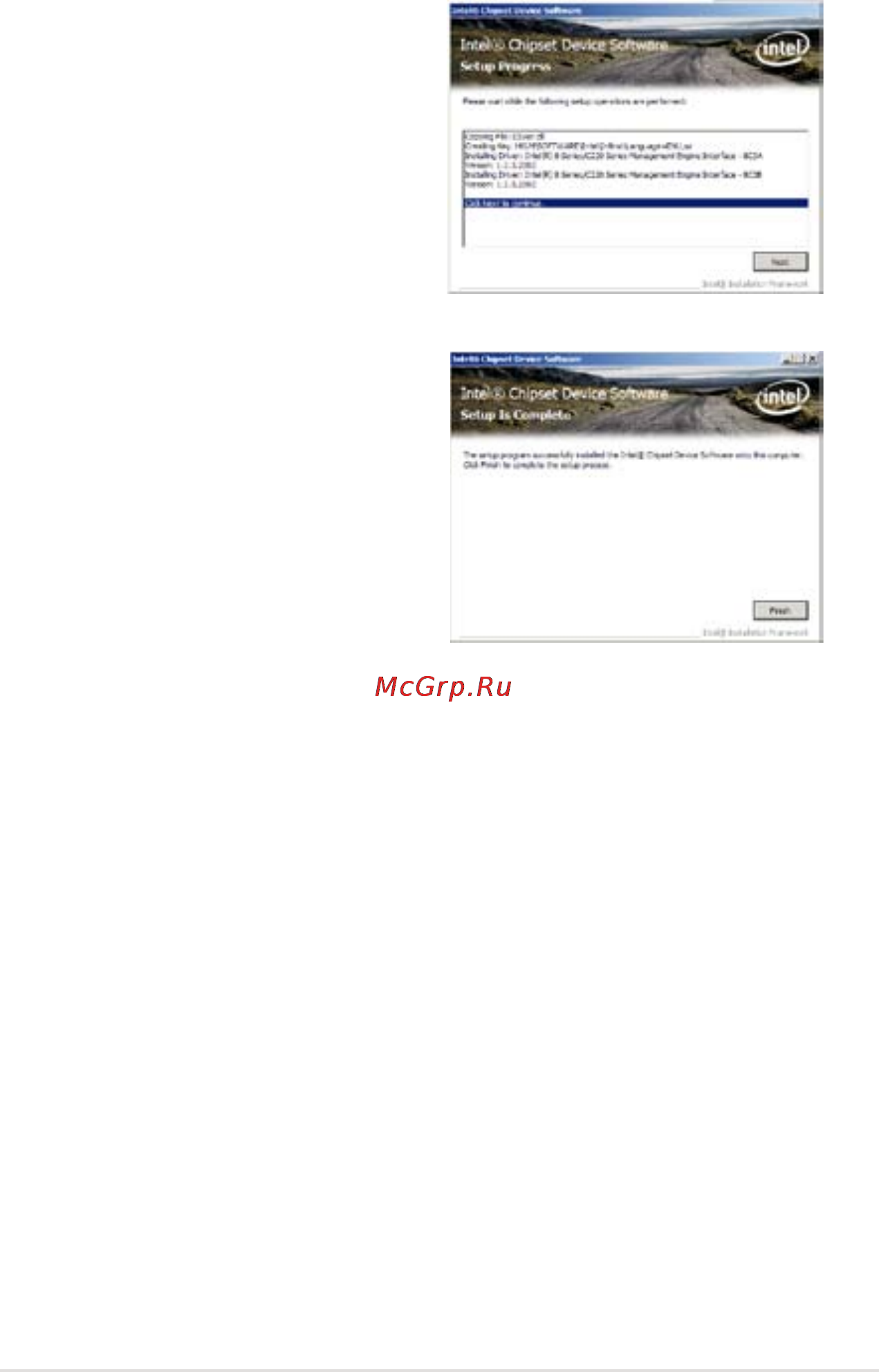

7. Click

when the installation of

driver is complete.

8. C l i c k

F i n i s h

t o c o m p l e t e t h e

installation.
