7-27
ASUS RS100-E8-PI2

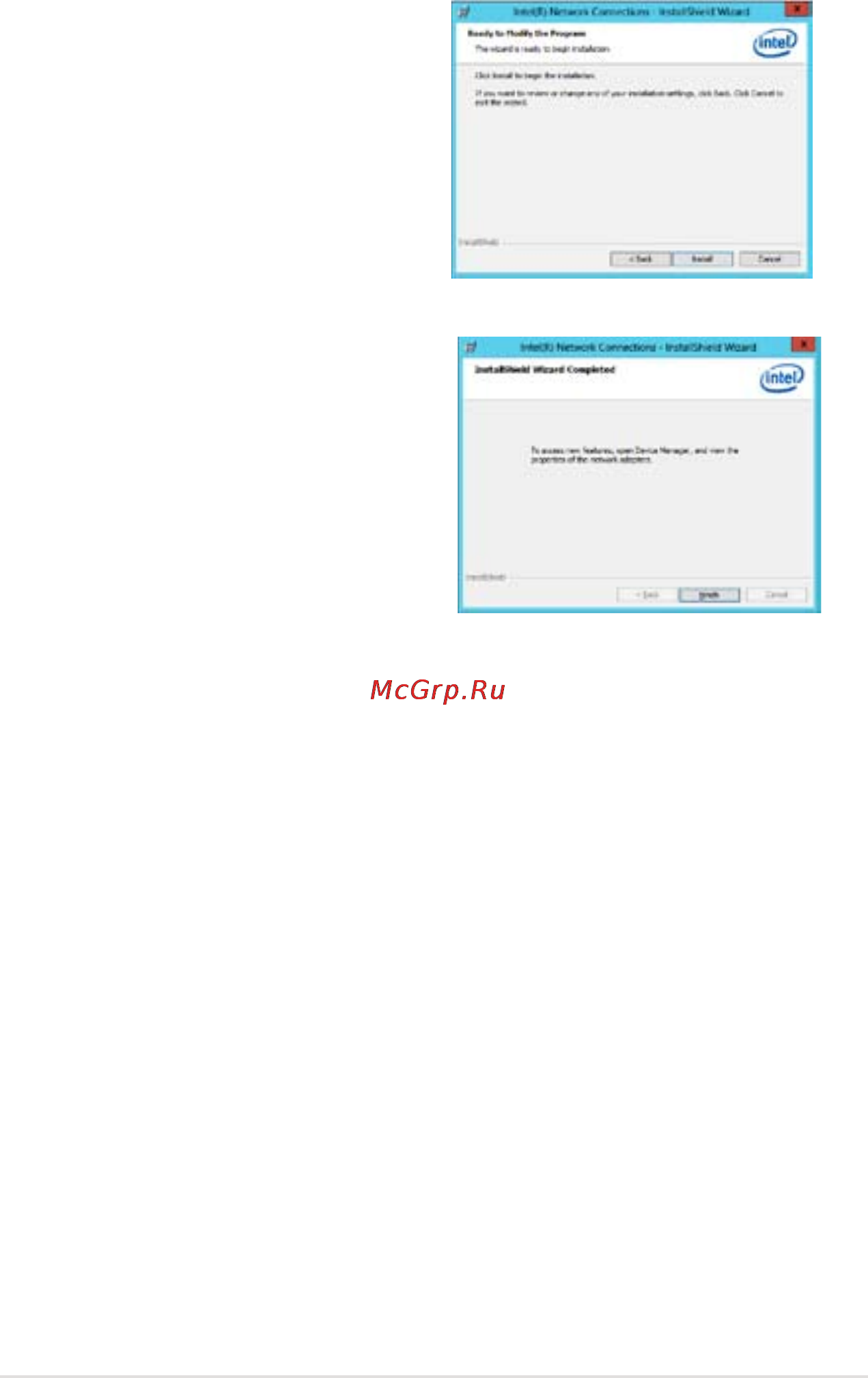

8. In the Ready to Modify the Program
window, click Install to load the options
you selected.
9. When done, click Finish.
