2-9

ASUS RS100-E8-PI2

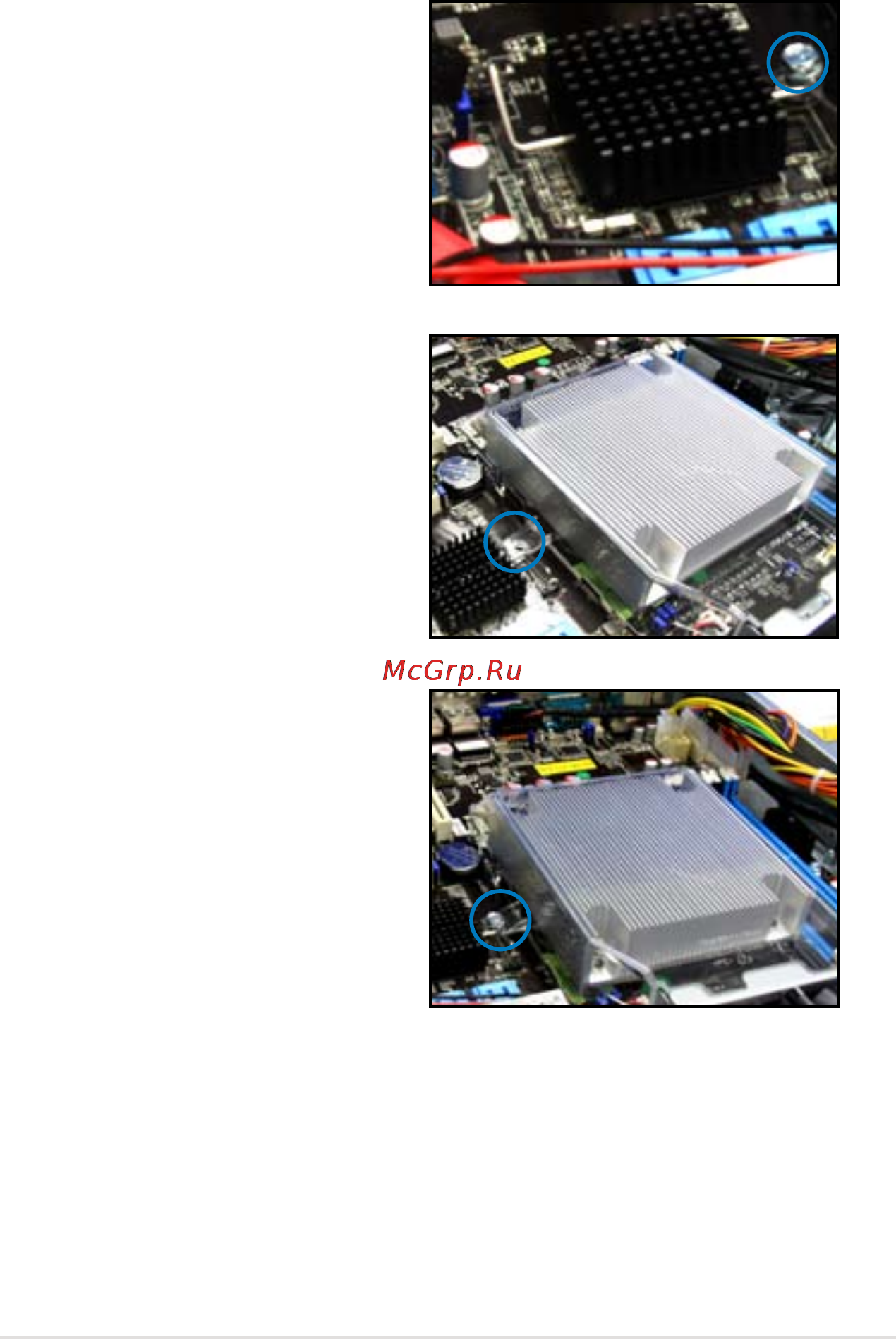

To install the airduct:

1. Locate and remove the screw for the

airduct from the motherboard.

2. Place the airduct over the heatsink. The

fastener on the airduct should align with

the screwhole on the motherboard.

3. Replace the screw and secure the

airduct onto the motherboard.
