Chapter 3: Rackmount installation

3-4

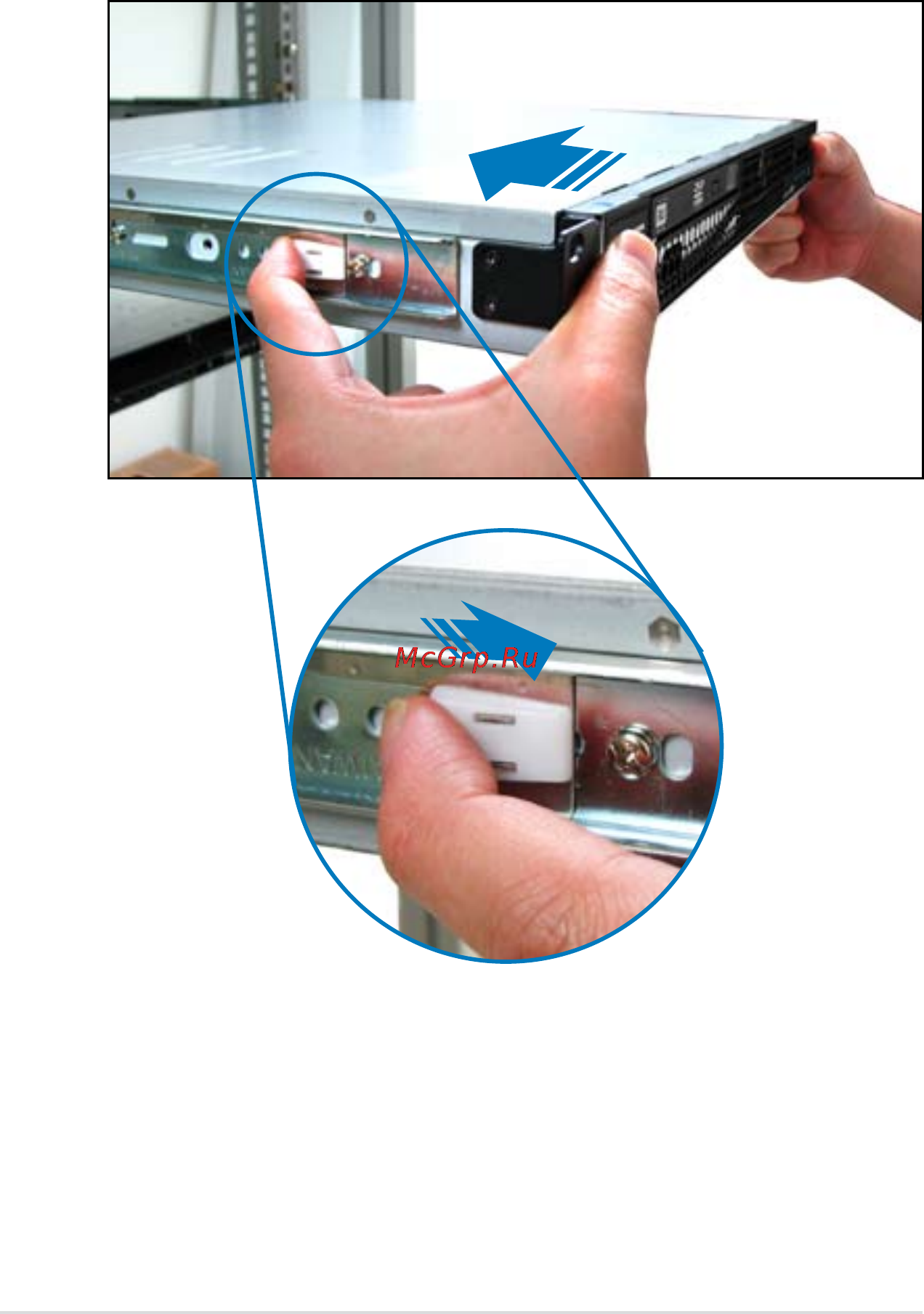

8. Firmly hold the server on both sides. Slide the latches on the inner rack rails to the

direction indicated below. Hold the latches, and insert the rear side of the server to the

front end of the outer rack rail.

Make sure that the inner rails are properly aligned with the outer rails.
