Chapter 2: Hardware setup
2-8

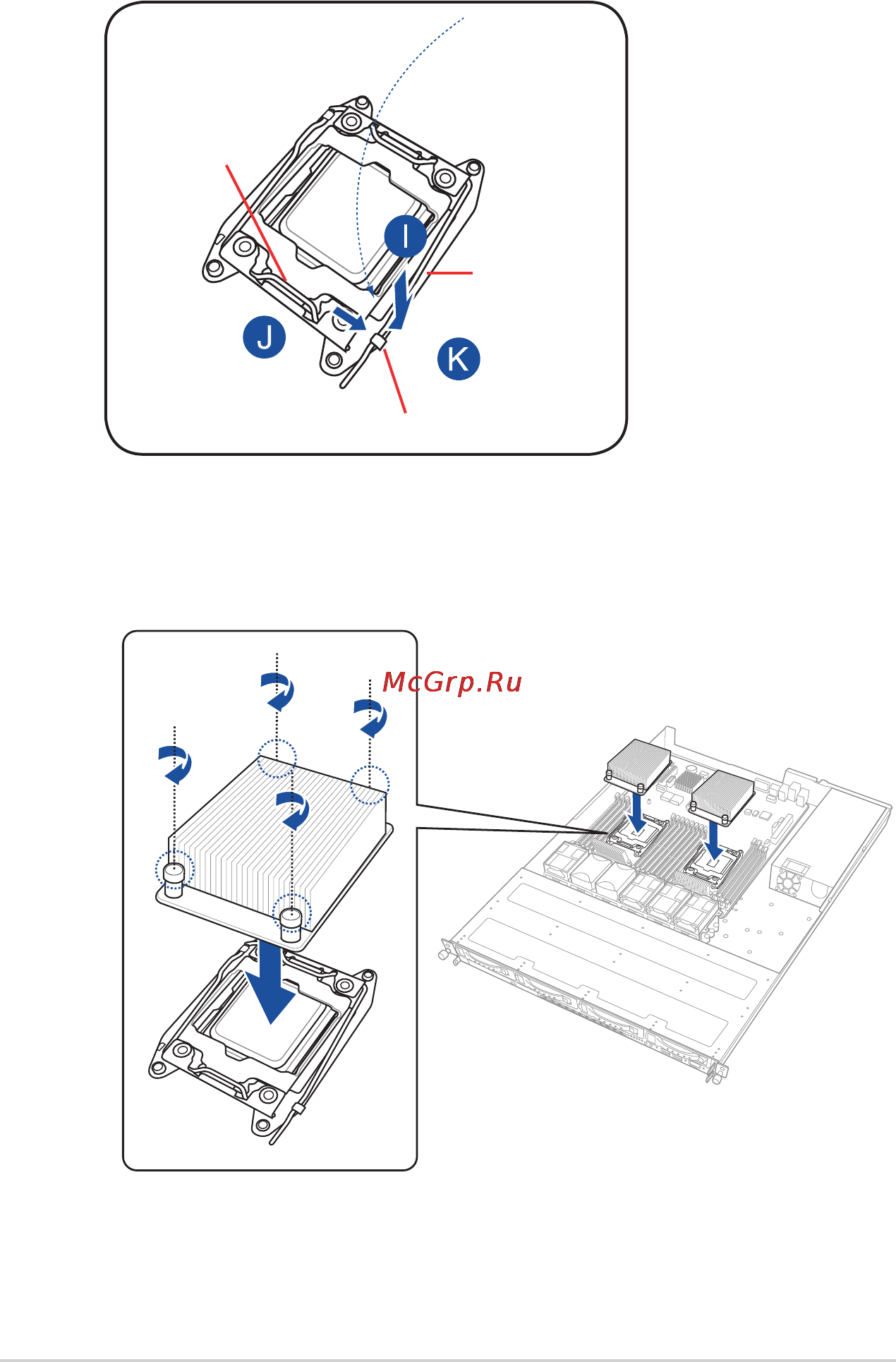

13. Push the right load lever down (I) ensuring that the edge of the load plate is xed and
tucked securely under the lever (J), then insert the right load lever under the retention
tab (K).
Retention tab
Load lever
edge of load plate
14. Install the heatsink.
