Chapter 2: Hardware setup
2-20

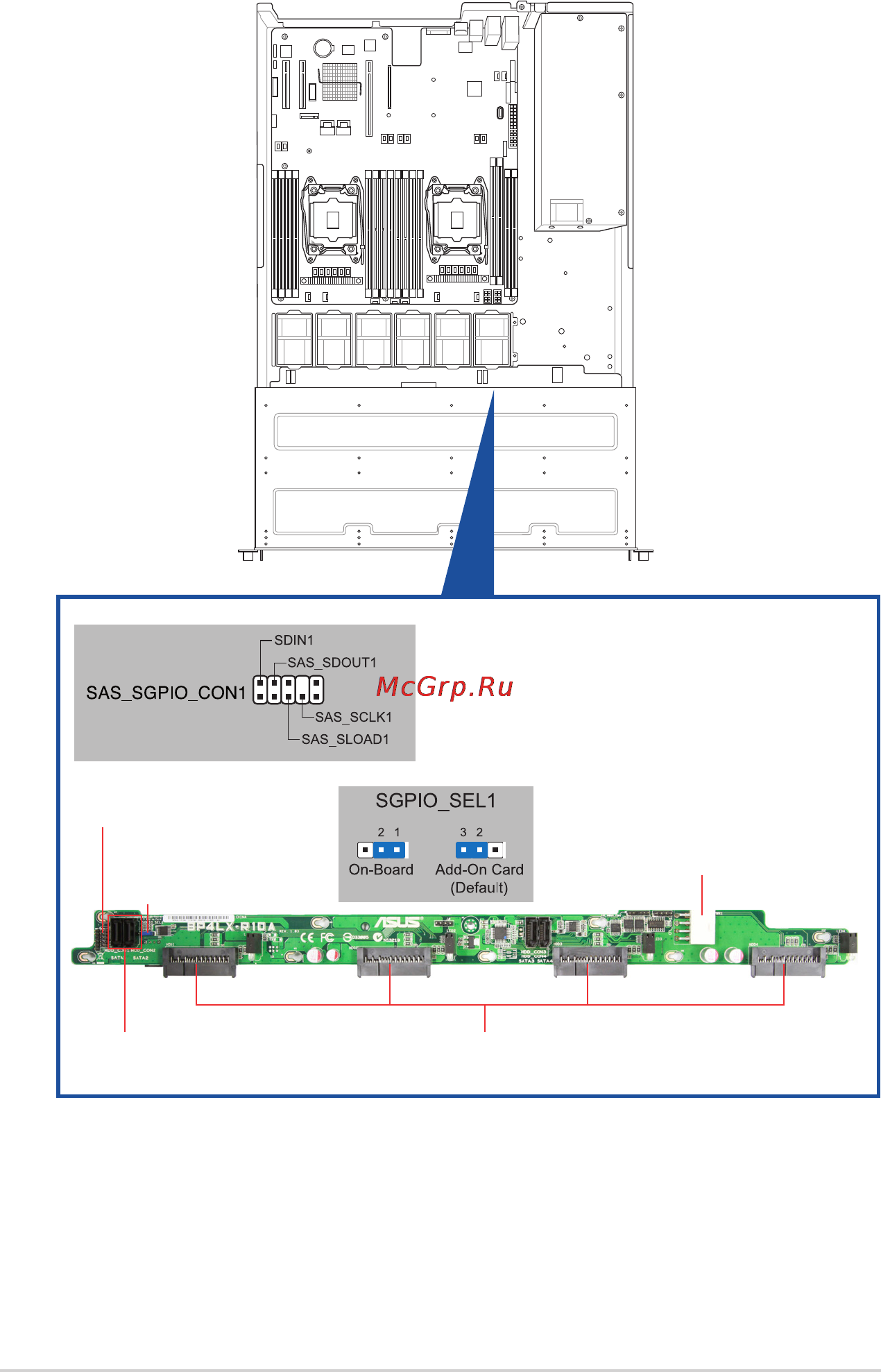

2.7 SATA/SAS backplane cabling
* For PIKE RAID solution, ensure to connect SAS_SGPIO_CON1 to support PIKE card SAS RAID function.
Connect the SATAIII/SAS HDDsConnects the data cables
connected to the motherboard
SGPIO_SEL jumper: pins
1-2 (Onboard)
pins 2-3 (Add-on card)
SAS_SGPIO_CON1
connector*
Connects a 8-pin
plug from power
supply
