Asus tuf trooper h110 d3 [10/68] Screw holes
![Asus tuf trooper h110 d3 [10/68] Screw holes](/views2/1162973/page10/bga.png)
1-2
Chapter 1: Product Introduction
Place this side towards
the rear of the chassis

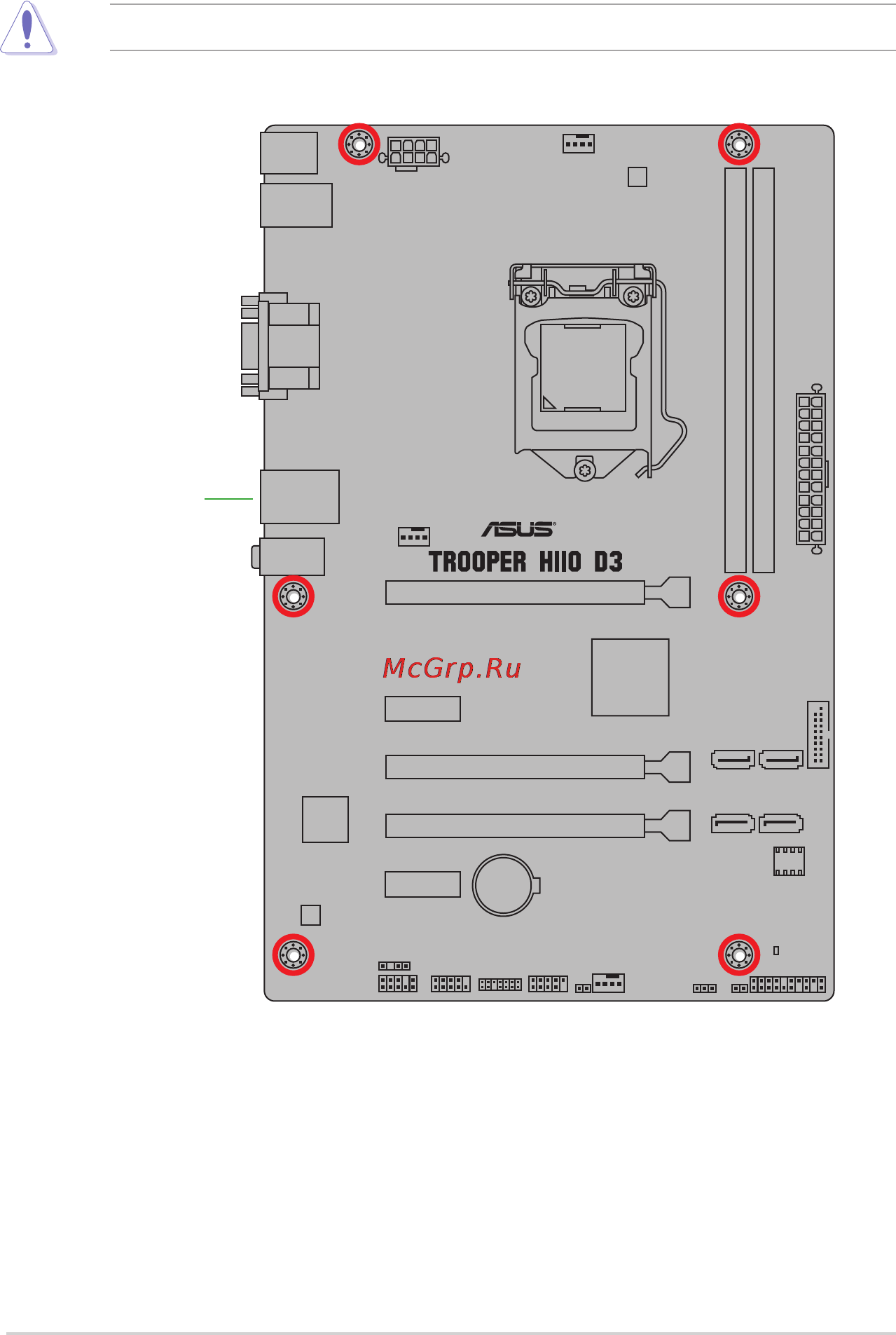

1.2.2 Screw holes
Place six screws into the holes indicated by circles to secure the motherboard to the chassis.
Donotovertightenthescrews!Doingsocandamagethemotherboard.
