1-24
Chapter 1: Product Introduction

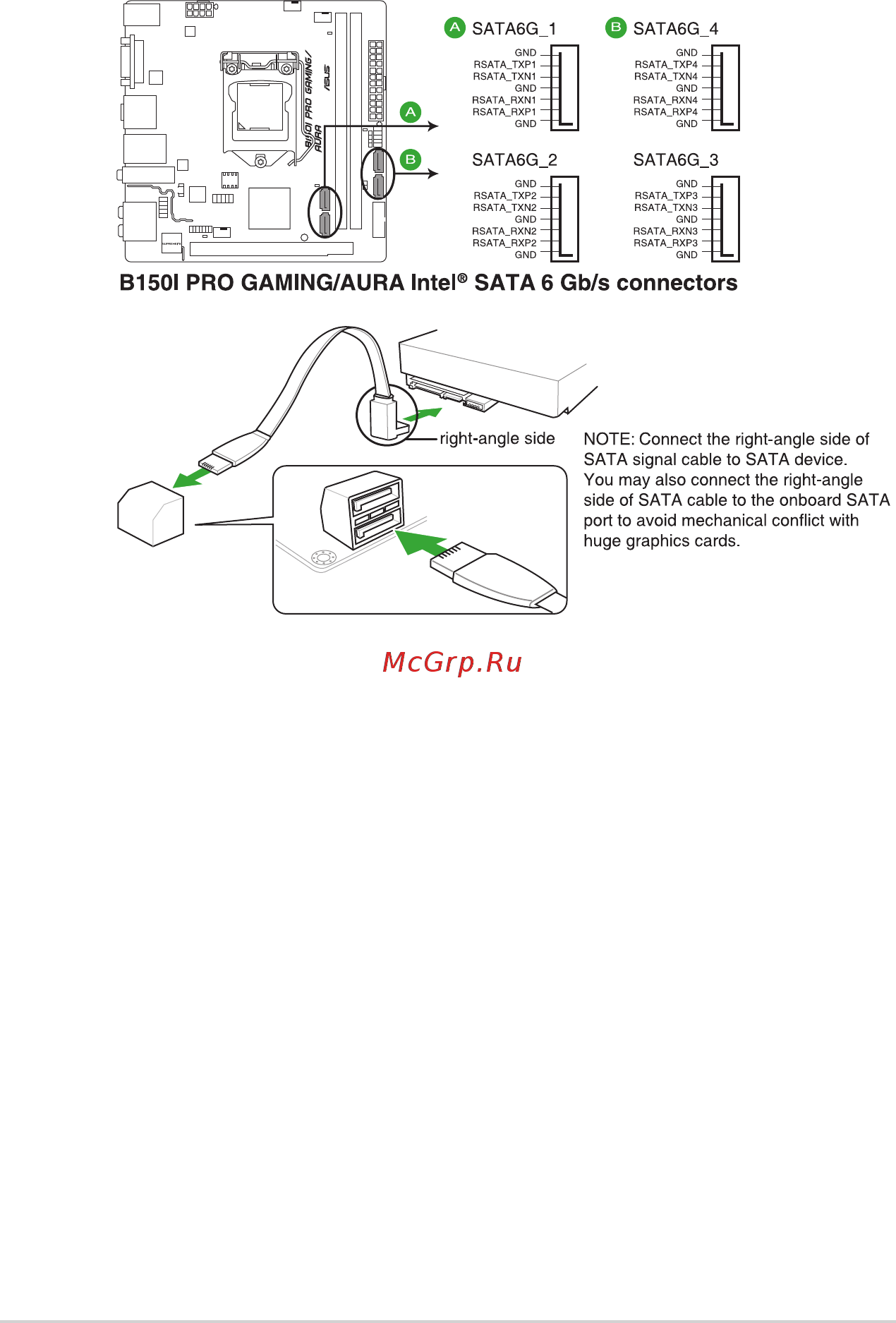

7. Intel
®
B150 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~4)
ThisconnectorconnectstoSerialATA6.0Gb/sharddiskdrivesviaSerialATA6.0
Gb/ssignalcables.
